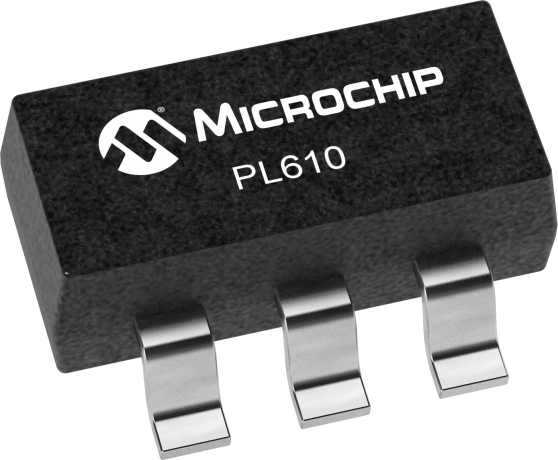

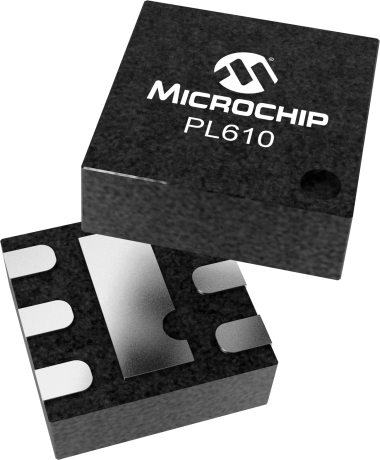

PL610

Status: In Production

Features:

  • Single die, wide frequency coverage, programmable advanced oscillator design
  • Single IC to cover up to 60MHz output frequency
  • Direct oscillation operation with optional programmable features: ±50ppm Frequency Tuning Output Drive Setting (4, 8, or 16mA) 6-bit Odd/Even Output Divider ($le; ÷63)
  • ±50ppm Frequency Tuning
  • Output Drive Setting (4, 8, or 16mA)
  • 6-bit Odd/Even Output Divider ($le; ÷63)
  • Input Frequency: Fundamental crystal: 10MHz to 60MHz
  • 10MHz to 60MHz
  • Output Frequency: LVCMOS 160kHz to 60MHz
  • 160kHz to 60MHz
  • Pad Layout optimized for Flip Chip assembly
  • Very low Jitter and Phase Noise
  • Low current consumption
  • Single 1.8V, 2.5V, or 3.3V ±10% power supply
  • Operating temperature range from -40°C to +85°C
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The PL610 is a high performance general purpose clock that uses a single die to cover outputs up to 60MHz, eliminating the need for multiple ICs to cover a wide frequency range. Designed to fit in a small 2.0mm x 1.6mm, or larger substrates, the PL610 offers the best phase noise and jitter performance, smallest die size, and lowest power consumption of any comparable IC.The optional ‘frequency fine tuning’ feature of PL610 allows for frequency adjustment after encapsulation of the module, up to ±50ppm. In addition, there is a ‘6’ bit optional programmable Odd/Even divider (default= ÷1), and ‘3’ programmable output drive strengths (4mA, 8mA (default), 16mA) to choose from. The full feature set of PL610 makes it the most versatile XO for any application.

Parametrics
Name
Value
Sub Group 1
DIE
Sub Group 2
XO-Non-Multiplier Low Frequency
Supply Voltage (V)
1.8 - 3.3
Output Frequency Min (MHz)
1.3
Output Frequency Max (MHz)
61
Output Logic
LVCMOS

Documents

Jump to:
×

Application Notes

Download All
Micrel AN 36 - MIC4826/7 Electroluminescent Display Drivers - MIC4826/7 Electroluminescent Display Drivers

96KB
Micrel AN 9 - Design Considerations for 5V to 3.3V Pass Regulators - Design Considerations for 5V to 3.3V Pass Regulators

28KB
