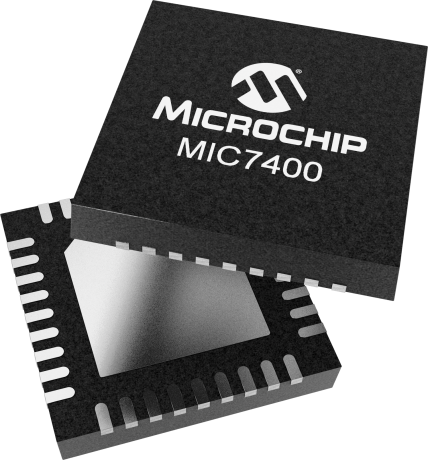

product primary image

MIC7400

Configurable PMIC, Five-Channel Buck Regulator Plus One-Boost w/ HyperLight Load

Status: In Production

Features:

  • Input voltage: 2.4V to 5.5V
  • Five independent synchronous bucks up to 3A
  • One independent non-synchronous boost 200mA
  • 200μA quiescent current (all regulators on)
  • 93% peak buck efficiency, 85% typical efficiency at 1mA
  • Dual power mode: stand-by and normal mode
  • I2C interface up to 3.4MHz
  • Buck and boost output voltage scaling
  • Power-on-reset threshold and delay
  • Power-up sequencing/sequencing delay
  • Buck and boost current limit
  • Buck and boost pull-down when disabled
  • Individual ON, OFF, and standby modes
  • Soft-start and global power-good masking
  • 23μA buck typical quiescent current
  • 70μA boost typical quiescent current
  • 1.5% output accuracy over temperature/line/load
  • 2.0MHz boost switching frequency
  • 1.3MHz buck operation in continuous mode
  • Ultra-fast buck transient response
  • 15mm × 15mm × 1.25mm solution size
  • Thermal-shutdown and current-limit protection
  • 36-pin 4.5mm × 4.5mm × 0.85mm FQFN package (0.4mm pitch)
  • −40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC7400 is a powerful, highly-integrated, configurable, power-management IC (PMIC) featuring five synchronous buck regulators, one boost regulator, and high-speed I2C interface with an internal EEPROM.The device offers two distinct modes of operation “stand-by mode” and “normal mode” intended to provide an energy optimized solution suitable for portable handheld and infotainment applications.In normal mode, the programmable switching converters can be configured to support a variety of start-up sequencing, timing, soft-start ramp, output voltage levels, current limit levels, and output discharge for each channel.In stand-by mode, the PMIC can be configured in a low power state by either disabling an output or by changing the output voltage to a lower level. Independent exit from stand-by mode can be achieved either by I2C communication or the external STBY pin.

The device has five synchronous buck regulators with high-speed adaptive on-time control, supporting even the challenging ultra-fast transient requirement for Core supplies. One boost regulator provides a flash-memory programming supply that delivers up to 200mA of output current. The boost is equipped with an output disconnect switch that opens if a short-to-ground fault is detected.An internal EEPROM enables a single-chip solution across many platforms by allowing the designer to customize the PMIC for their design. Modifications can be made without the need to re-approve a new PMIC, saving valuable design resources and time.All switchers provide light-load efficiency with HyperLight Load® mode for buck, and PFM mode for boost. An additional benefit of this proprietary architecture is very-low output ripple voltage throughout the entire load range with the use of small output capacitors. The MIC7400 supplies are designed for use with a small inductor (down to 0.47μH for buck, 1.5μH for boost), and an output capacitor as small as 10μF for buck, enabling a total solution size of 15mm × 15mm and less than 1mm height.

Additional Features
    • Input voltage: 2.4V to 5.5V
    • Five independent synchronous bucks up to 3A
    • One independent non-synchronous boost 200mA
    • 200μA quiescent current (all regulators on)
    • 93% peak buck efficiency, 85% typical efficiency at 1mA
    • Dual power mode: stand-by and normal mode
    • I2C interface up to 3.4MHz
    • I2C on-the-fly EEPROM programmability, featuring:
      • Buck and boost output voltage scaling
      • Power-on-reset threshold and delay
      • Power-up sequencing/sequencing delay
      • Buck and boost current limit
      • Buck and boost pull-down when disabled
      • Individual ON, OFF, and standby modes
      • Soft-start and global power-good masking
    • 23μA buck typical quiescent current
    • 70μA boost typical quiescent current
    • 1.5% output accuracy over temperature/line/load
    • 2.0MHz boost switching frequency
    • 1.3MHz buck operation in continuous mode
    • Ultra-fast buck transient response
    • 15mm × 15mm × 1.25mm solution size
    • Thermal-shutdown and current-limit protection
    • 36-pin 4.5mm × 4.5mm × 0.85mm FQFN package (0.4mm pitch)
    • −40°C to +125°C junction temperature range
Parametrics
Name
Value
Type
PMIC
HLL Mode
Yes
Short Description
Highly integrated configurable PMIC featuring five 4MHz buck regulators, one 2MHz boost regulator, global PGOOD indicator, 3.4MHz I2C master/slave programmable with EEROM, configurable start-up sequencing, Adjustable POR comparator and delay, standby lo
VIN Max (V)
5.5
VIN Min (V)
2.4

Documents

Jump to:

Data Sheets


3108KB

Software Libraries/Firmware


2422KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC7400/1 Programming Board
MIC7400/1 Programming Board ( ADM00760 )

MIC7400/1 Programming Board was designed to demonstrate the MIC7400/1 Power Management IC (PMIC) when programmed by a microcontroller, using an easy-to-understand interface. The board offers increased functionality by the addition of an on-board EEPROM and allows copy, store and also reprogram all the registers in the MIC7400/1 devices.

Learn More
Add To Cart
MIC7400 5 buck 1 boost Progr Reg Eval Bd
MIC7400 5 buck 1 boost Progr Reg Eval Bd ( ADM00811 )

MIC7400 Evaluation Board was developed to evaluate the capabilities of the MIC7400 Power Management Integrated Circuit (PMIC). The device features 5 DC-DC buck converter capable of delivering 3A each and a boost converter with a 200mA current capability and I2C programmable output voltages.
The MIC7400 Evaluation Board also features the MCP2221 USB to I2C bridge that enables direct...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC7400YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0001YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0002YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0003YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0004YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0005YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0006YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0007YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0008YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0009YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0011YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0012YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0020YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400YFL-TR
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0008YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0008YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0001YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0004YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0005YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0006YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0007YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0007YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0009YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0009YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0020YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0020YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0002YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0003YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0005YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0006YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0011YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0011YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0012YFL
0.000000
0.000000
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
MIC7400-0012YFL-T5
0.000000
0.827051
36
VQFN
4.5x4.5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
