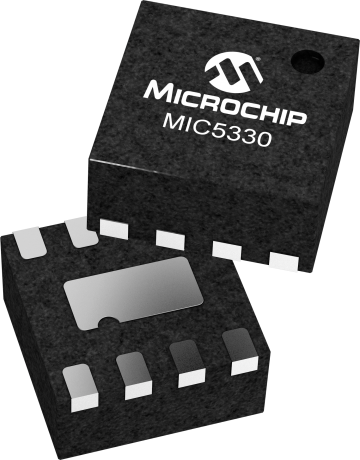

MIC5330

Dual 300mA uCap LDO

Status: In Production

Features:

  • 2.3V to 5.5V input voltage range
  • Ultra-low dropout voltage ULDO 75mV @ 300mA
  • High PSRR: >70dB @ 1KHz
  • Ultra-low output noise: 30µVrms
  • ±2% initial output accuracy
  • Excellent Load/Line transient response
  • Fast start-up time: 30µs
  • 300mA output current per LDO
  • Thermal shutdown protection
  • Low quiescent current: 75µA per output
  • Current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5330 is a tiny dual Ultra Low-Dropout (ULDO) linear regulator ideally suited for portable electronics due to its high power supply ripple rejection (PSRR) and ultra low output noise. The MIC5330 is a µCap design which enables operation with very small ceramic output capacitors for stability, thereby reducing required board space and component cost. The combination of extremely low dropout voltage, high power supply rejection and exceptional thermal package characteristics makes it ideal for powering RF/noise sensitive circuitry, cellular phone camera modules, imaging sensors for digital still cameras, PDAs, MP3 players, and webcam applications.

Additional Features
    • 2.3V to 5.5V input voltage range
    • Ultra-low dropout voltage ULDO 75mV @ 300mA
    • High PSRR: >70dB @ 1KHz
    • Ultra-low output noise: 30µVrms
    • ±2% initial output accuracy
    • Excellent Load/Line transient response
    • Fast start-up time: 30µs
    • 300mA output current per LDO
    • Thermal shutdown protection
    • Low quiescent current: 75µA per output
    • Current limit protection
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
300
IOUT #2
300
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
2.3
VIN Max (V)
5.5
VOUT (V)
Please Contact Sales Office
Voltage Drop Typ (mV)
75
IGND Typ (µA)
85
Tol Typ %
±2
Noise (µV) rms
30
PSRR 1 kHz (dB)
70
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect
