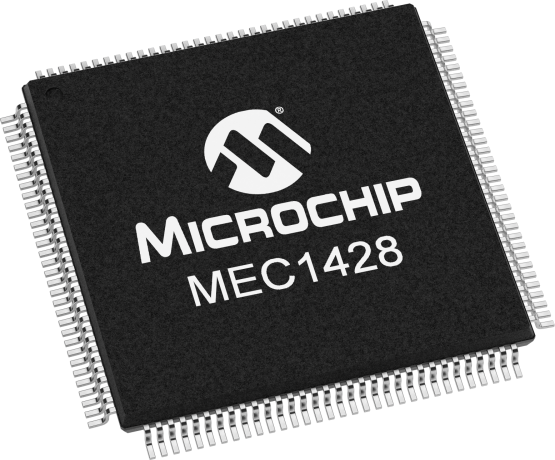

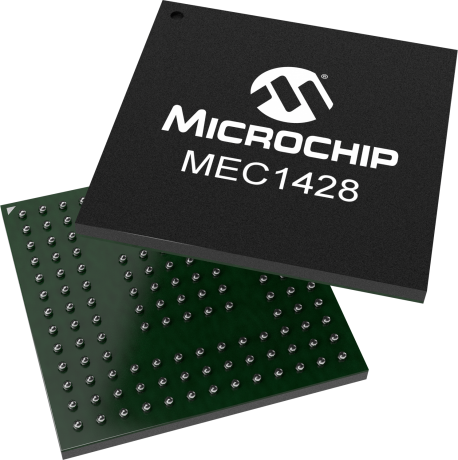

product primary image

MEC1428

Embedded Controller

Status: In Production

Features:

  •  MIPS32® M14K™ MIcrocontroller Core
  • Enhanced Serial Peripheral Interface (eSPI) or LPC Host Interface
  • Supports Slave Attached Flash Sharing (SAFS)
  • ACPI 3.0 Compliant
  • PC2001 Compliant
  • VTR (standby) and VBAT (Power Planes)
  • Connected Standby Support
  • 8042 Emulated Keyboard Controller
  • Secure Boot ROM Loader
  • System to EC Message Interface
  • Trace FIFO Debug Port (TFDP)
  • 32-bit RTOS Timer
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

MEC1428 is the latest member of the MEC14XX family and adds a new level of design functionality for computing engineers by adding Slave Attached Flash (SAF), which is an optimal solution for USB Type-C™ power delivery. This device is pin and register compatible with the MEC140X and MEC141X families, which allows designers to easily add eSPI and additional features and have more flexibility in their designs. It retains eSPI Master Attached Flash (MAF) capability.

The MEC14xx family is a keyboard and embedded controller customized for notebooks and computing platforms. The MEC140X/1X/2X family is a highly-configurable, mixed signal, advanced I/O controller architecture. MEC1428 incorporates a 32-bit MIPS32 M14K Microcontroller core with 192 KB of closely-coupled SRAM for code and data that loads from SPI Flash. Designers can leverage the host SPI-flash (used for BIOS storage) for non-volatile EC firmware storage, as a cost-effective system solution.

Microchip’s MEC14XX family also provides a flexible arrangement that allows multiple I/O signals to be configured to support either 3.3V or 1.8V, reducing the system bill-of-materials cost by eliminating the need for external voltage translators. The MEC1428 communicates with the system host through the Intel Enhanced Serial Peripheral Interface (eSPI) or through Intel's Low Pin Count (LPC).

All members of the MEC14XX family are pin and register compatible and are supported by Microchip’s development tools. Examples include the MPLAB® XC Compilers, the MPLAB REAL ICE™ In-Circuit Emulator (part # DV244005), the MPLAB ICD 3 In-Circuit Debugger (part # DV164035) and the PICkit™ 3 Starter Kit (part # DV164130).

Additional products with eSPI capability: MEC1418, MEC1701, MEC1704, MEC1705

Family parts
MEC1428-I/NU-C1
MEC1428-NU-C1
MEC1428-SZ-C1
MEC1428-SZ-C1-TR
MEC1428-TF-C1
MEC1428-TF-C1-TR

Additional Features
    •  MIPS32® M14K™ MIcrocontroller Core
    • Enhanced Serial Peripheral Interface (eSPI) or LPC Host Interface
    • Supports Slave Attached Flash Sharing (SAFS)
    • ACPI 3.0 Compliant
    • PC2001 Compliant
    • VTR (standby) and VBAT (Power Planes)
    • Connected Standby Support
    • 8042 Emulated Keyboard Controller
    • Secure Boot ROM Loader
    • System to EC Message Interface
    • Trace FIFO Debug Port (TFDP)
    • 32-bit RTOS Timer
Parametrics
Name
Value
Keyboard Scan Matrix
18x8
UART
Full
Customer Programmable RAM
Yes
Host Interface
eSPI, LPC, I2C
Code Storage
192 KB SRAM (Code + Data)
Operating Temperature
0° C to +70° C
Fan Tachometer Inputs
2
8024 Keyboard Controller
Yes
Data RAM
32kB
Breathing/ Blinking LED
3
GPIO
106
Package
128 VTQFP
LED
3
Analog to Digital Converter
8
BC Link
2
AMD SB-TSI
1
ACPI Interfaces
5
Counter/Timers
4

Documents

Jump to:

Brochures

MISC


904KB

Development Environment

  • Integrated Development Environments
  • Compilers
  • Emulators & Debuggers
  • Demo & Evaluation Boards
