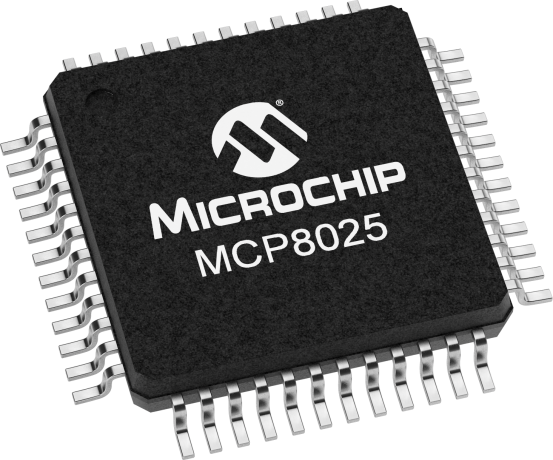

The MCP8025 is a 3-Phase brushless motor gate driver and power module that integrates the following features: key-off Sleep mode, a LIN transceiver, a buck voltage regulator, two LDO regulators, power monitoring comparators, an over-temperature sensor, a zero-crossing detector, a neutral simulator, a comparator, and an operational amplifier for motor current monitoring.
The phase comparator and multiplexer allow for hardware commutation detection. The neutral simulator allows commutation detection without a neutral tap in the motor. The buck converter is capable of delivering 750 mW of power for powering a companion microcontroller. The buck regulator may be disabled if not used. The on-board 5V and 12V low dropout voltage regulators are capable of delivering 30 mA of current.
The MCP8025 supports a broad temperature range of -40°C to +150°C. Package options include the 40-lead 5x5 QFN and 48-lead 7x7 TQFP.
Please consider this device MCP8025A
This 24-Volt 3-phase Brushless DC (BLDC) permanent magnet Hurst NT Dynamo motor comes with Hall-Effect sensors for 6-step commutation. It can also be controlled with a sensorless Back EMF (BEMF) or Field Oriented Control (FOC) algorithm. This Hurst motor is perfect for applications in office automation, instrumentation and medical equipment such as high-speed copiers and printers, ATM machines,...
The MCP8025 TQFP BLDC Motor Driver Evaluation Board demonstrates Microchip’s 3-Phase Brushless DC (BLDC) Motor Gate Driver with Power Module, MCP8025, used in a BLDC motor drive application. When used in conjunction with a microcontroller, the MCP8025 will provide the necessary drive signals to drive for a 3-Phase BLDC motor. The MCP8025 contains the high-side and low-side drivers for...
For pricing and availability, contact Microchip Local Sales.
