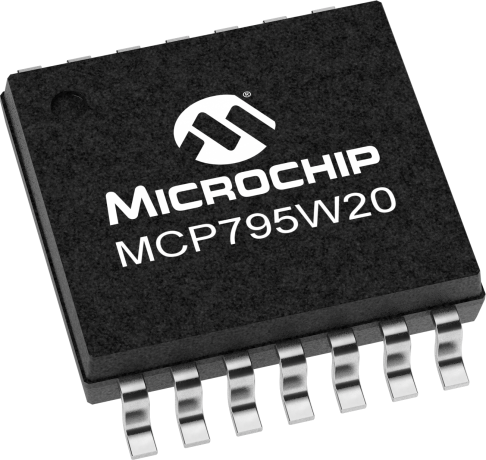

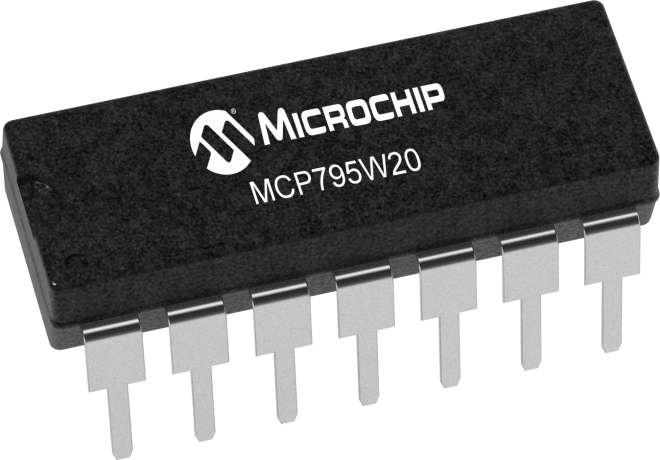

The MCP795W20 SPI RTCC is highly integrated with memory and advanced features normally found in higher priced devices. By starting with a basic real-time clock, digital trimming was added for higher accuracy, a battery switchover for backup power, a timestamp to log power failures and three types of memory, which includes SRAM, EEPROM and a blank unique ID in a locked section of EEPROM. The ID is blank in this device, but can also be ordered with a 48-bit or 64-bit MAC Address. By adding a watchdog timer and two programmable event detect inputs, lower power and more system robustness can be achieved by performing these functions in the RTCC, thus allowing the MCU to sleep for longer periods of time.

Full Featured RTCC targets smart energy, communications and home appliance applications.

• Low Power Operation
  • VCC Min = 1.8V
  • Icc < 1 µA
  • Typical Standby Current
• Low Backup Power
  • VBAT Min = 1.3V
  • Ibat < 700nA
  • Typical Timekeeping & SRAM Retention Current
• Automatic Battery Switchover with Timestamp
  • VCC to VBAT (VCC Lost)
  • VBAT to VCC (VCC Restored)
• Dual configurable alarms with a 0.01 sec count on one alarm
  • IRQ (VCC or VBAT)
  • WDO (VCC)
• Clock Out frequencies: 32.768, 8.192 & 4.096 KHz and 1 Hz
• Digital Trimming Range from -255 to + 255 ppm in 1 ppm steps
  • Adjusts up to 22 seconds/day
• Watchdog Timer - Dual Retriggers
  • SPI Bus or EVHS digital input
• Dual Configurable Event Detects
  • High speed with programmable pulse count (EVHS)
  • Low speed with programmable debounce delay (EVLS)
• EEPROM has 8 Bytes/Page with Block Sector write protection
  • Protect: None, 1/4, 1/2 or all of array
• Factory standard MAC address programming or custom ID available
