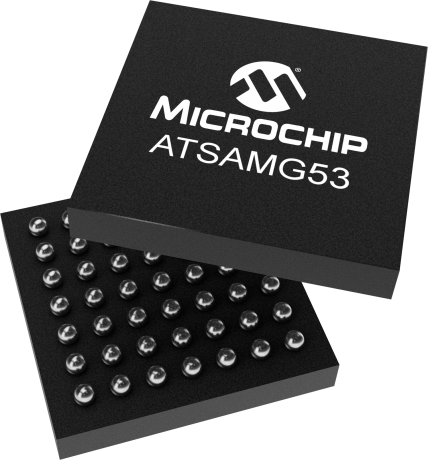

The Microchip's SAM G53 has an ARM® Cortex®-M4 core with an FPU (floating point unit) to maximize data throughput. This allows you to minimize the active-mode power consumption and get the core into sleep mode faster, which will reduce the overall power consumption.
The device has 16 DMA channels, which contribute to the extremely high throughput.
The combination of ultra-low power consumption, fast wake-up time, and high throughput is what gives the SAM G53 the edge in space- and power-constrained consumer applications such as sensor hubs. It wakes up quickly, has the throughput needed to reduce the amount of time spent in active mode, and then goes back to sleep with SRAM retention to conserve energy.
This gives the best performance and longest battery life. It is fully-functional all the way down to 1.7V, including flash reads and writes, as well as full ADC operation. This allows for a more flexible power supply scheme that will squeeze extra runtime out of a battery.
ARM Cortex-M4 with up to 96 Kbytes SRAM on I/D bus providing 0 wait state execution at up to 48 MHz
Memory Protection Unit (MPU)
DSP Instructions, Floating Point Unit (FPU), Thumb®-2 instruction set
Up to 512 Kbytes embedded Flash
Up to 96 Kbytes embedded SRAM
SAM G53 devices ship with a factory-programmed boot loader in Flash.
Embedded voltage regulator for single-supply operation
Power-on reset (POR) and Watchdog for safe operation
Quartz or ceramic resonator oscillators: 3 to 20 MHz with clock failure detection and 32.768 kHz for RTT or system clock
High-precision 8/16/24 MHz factory-trimmed internal RC oscillator. In-application trimming access for frequency adjustment
Slow clock internal RC oscillator as permanent low-power mode device clock
PLL range from 48 MHz to 120 MHz for device clock
PLL range from 24 MHz to 48 MHz for USB device and USB OHCI
Up to 30 peripheral DMA (PDC) channels
256-bit General-Purpose Backup Registers (GPBR)
16 external interrupt lines
49-lead WLCSP, 100-pin LQFP, 14 x 14 mm, pitch 0.5 mm
Temperature operating range
One USART with SPI mode
2 Inter-IC Sound Controllers (I2S)
Three Two-Wire Interface (TWI) modules featuring two TWI masters and one high-speed TWI slave
One fast SPI at up to 24Mbit/s
Two three-channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes
One 32-bit Real-Time Timer (RTT)
Up to 38 controllable I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and on-die series resistor termination. Individually programmable open-drain, pull-up and pull-down resistor and synchronous output
Two-way one-channel Pulse Density Modulation (PDM) (interfaces up to two microphones in PDM mode)
Debugger Development Support
Serial Wire/JTAG Debug Port(SWJ-DP)
Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.
Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.
Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.
Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.
Instrumentation Trace Macrocell (ITM) for support of printf style debugging.
IEEE1149.1 JTAG Boundary-scan on all digital pins.
Integrated Software Libraries and Tools
ASF-Atmel software Framework – SAM software development framework
Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.
DMA support, Interrupt handlers Driver support
USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
RTOS integration, FreeRTOS is a core component
SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.
