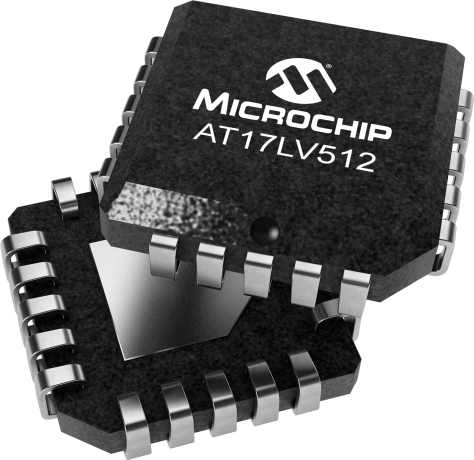

product primary image

AT17LV512

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip 512-Kb FPGA configuration EEPROM with Altera Pinout provides easy-to-use, cost-effective configuration memory for FPGAs. It comes in 8-lead PDIP and the 20-lead PLCC packages. This EEPROM can configure one or more FPGA devices through a simple serial-access procedure. Users can select the polarity of the reset function by programming four EEPROM bytes. The device also supports a write-protection mechanism within its programming mode.It can be programmed with industry-standard programmers, the Microchip ATDH2200E programming kit, or the Microchip ATDH2225 ISP Cable.

Parametrics
Name
Value
Interface Type
Xilinx
Density
512Kb
Temperature Range (V)
-40 to 85
Max# Operating Freq# (MHz)
15
Operating Voltage Range (V)
3 to 5.5

Documents

Jump to:

Software Libraries/Firmware


6590KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT17LV512-10CU
0.074800
0.070000
8
CASON
6x6x1.04mm
Matte Tin
e3
AT17LV512A-10JU
0.751700
1.428571
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
AT17LV512-10JU
0.751700
1.428571
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
AT17LV512A-10JU-T
0.751700
1.360000
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
AT17LV512-10JU-T
0.751700
1.360000
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
AT17LV512A-10PU
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
