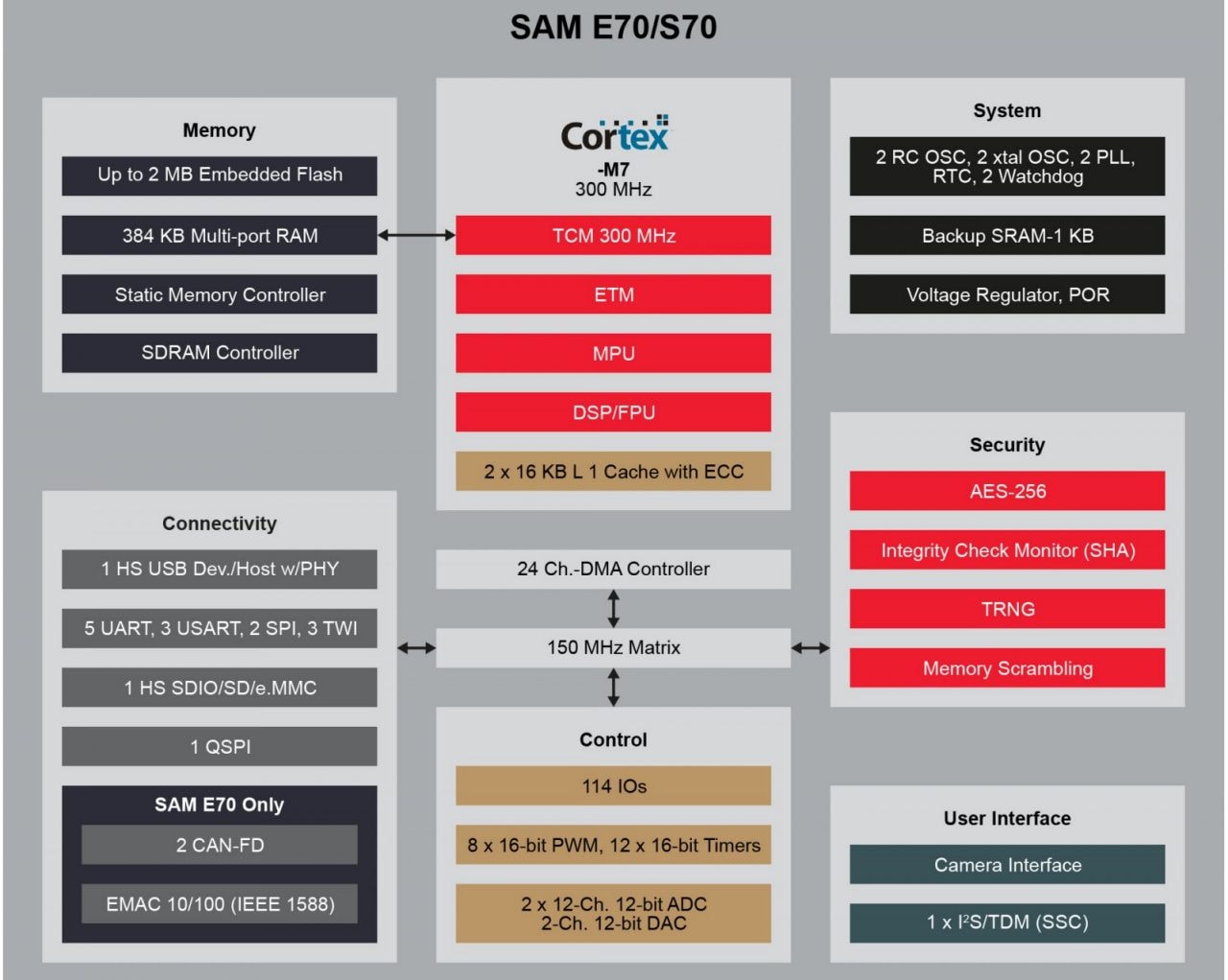

Are you looking for a microcontroller (MCU) with blazing-fast speed, large memory, high-performance motor control peripherals and advanced communication? The SAM E7x/S7x series has it all. Building on the performance of the Arm® Cortex®-M4F based SAM D5x/E5x series, the SAM E7x/S7x series features a 300 MHz Arm Cortex-M7 core with up to 128 KB of tightly coupled memory and double-precision floating-point math processing.

The SAM E7x/S7x series of MCUs features highly advanced analog and Pulse-Width Modulation (PWM) peripherals to enable high-performance, dual-motor control with a single MCU. Each of the integrated 2 Msps dual-sample-and-hold Analog-to-Digital Converters (ADCs) has built-in programmable gain amplifiers. In a dual motor setup, each pair of feedback resistors would feed its own ADC module to implement sensorless motor control.

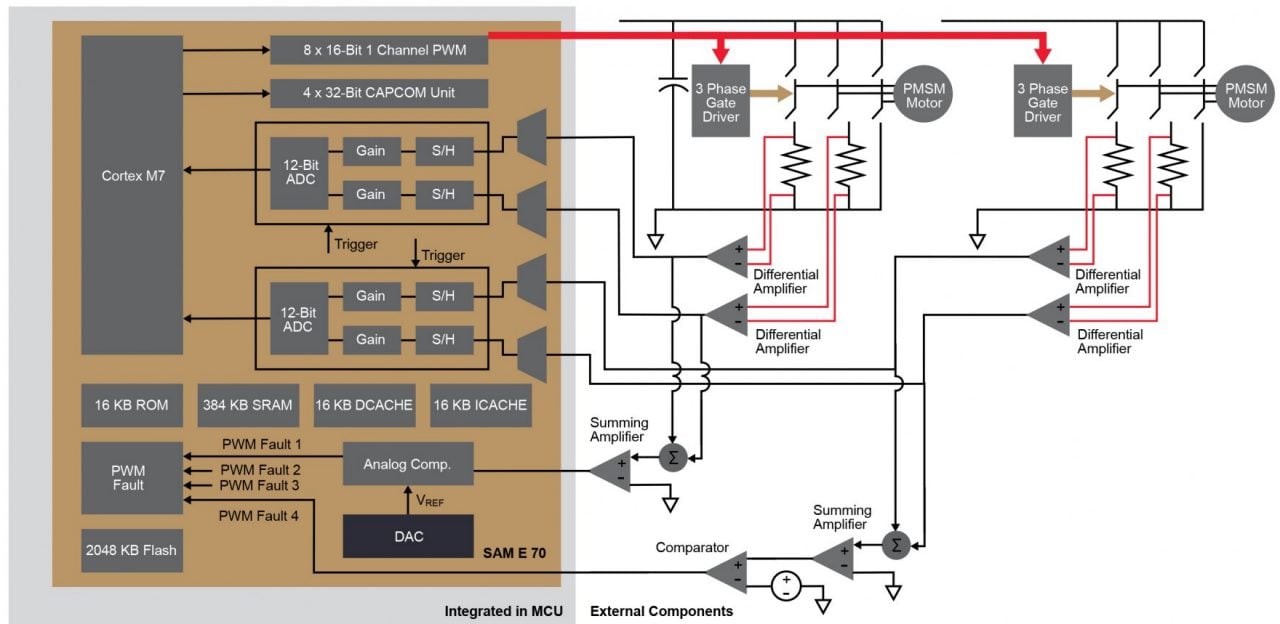

SAM E/S7x Dual Motor 2 Shunt


Simulation and Modeling Tools


SAM E7x/S7x devices are supported in the open-source Scilab® simulation package, a two-part modeling environment that includes the Scilab main and Xcos system modeler.

Scilab Key Features

  • Mathematics and simulation
  • Data visualization
  • Optimization
  • Statistics
  • Control system design and analysis
  • Signal processing
  • Algorithm development
  • Application deployment

Xcos Key Features

  • Standard palettes and blocks
  • Model building and edition
  • Model customization and Modelica blocks creation
  • Simulation

Development Software and Hardware


MPLAB® Harmony, a flexible, abstracted, fully integrated firmware development platform for PIC32 and SAM MCUs, provides support for peripherals, application demos and motor control applications using the SAM D5x/E5x family of MCUs. It provides easy-to-use software modules targeted for motor control that work together in complete harmony and can be configured to meet your specific requirements. It also includes a set of peripheral libraries, drivers and system services that are easily accessible for your application development. The code development format allows for maximum re-use and reduces your time to market.

We offer the following motor control development boards to simplify your development with SAM D5x/E5x devices. You will also need to purchase the ATSAME54 Motor Control Plug-In Module to add a SAM D5x/E5x device to your design. Demo examples for sensored and sensorless Field Oriented Control (FOC) of a permanent magnet synchronous motor are available within MPLAB Harmony v3.

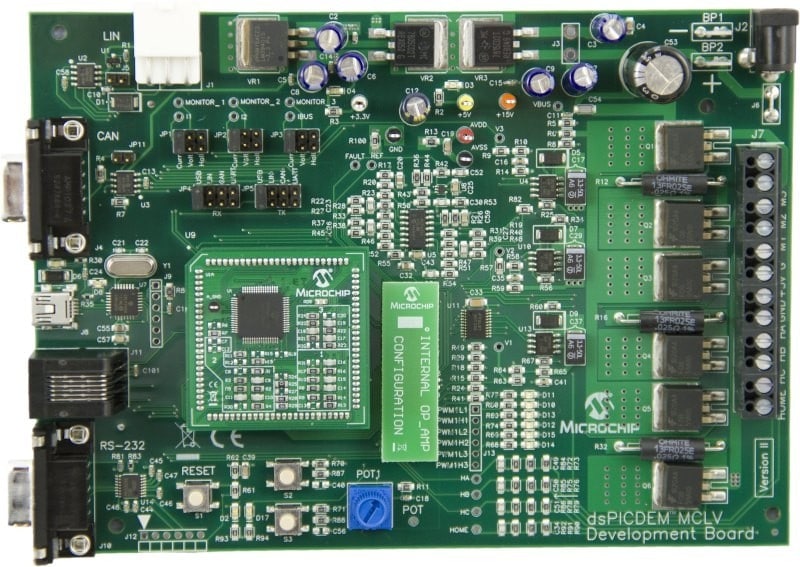

dsPICDEM™ MCLV-2 Low-Voltage Motor Control Development Board

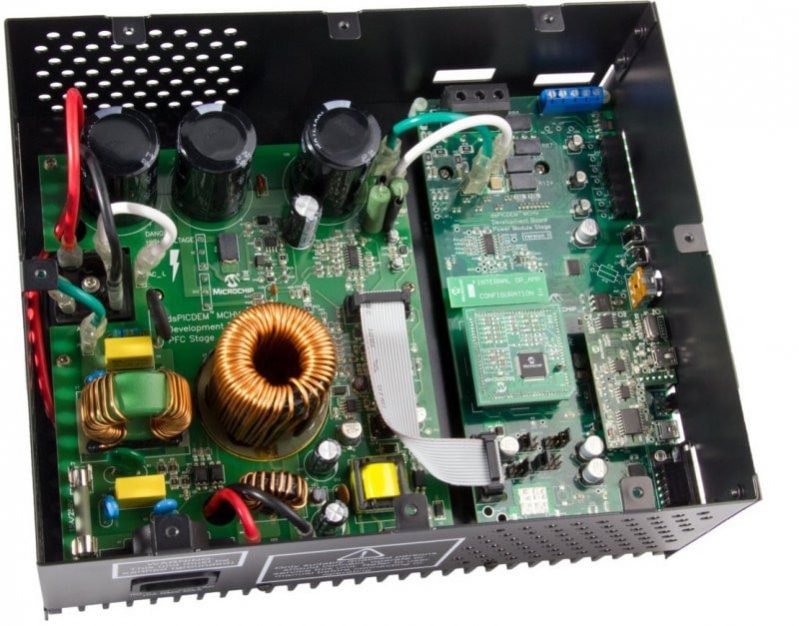

dsPICDEM MCHV-3 High-Voltage Motor Control Development Board

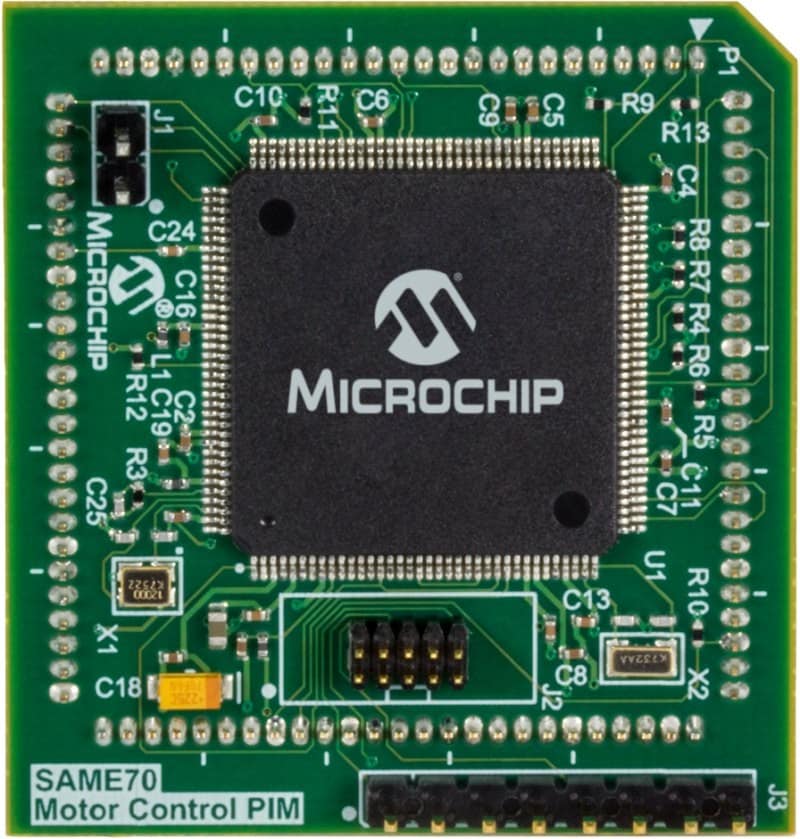

ATSAME70 Motor Control Plug-In Module

New/Popular Microcontroller and Processors Products


Documentation


Title
World's Fastest Embedded Interleaved 12-bit ADC Using PIC32MZ and PIC32MK Families Download
Sensored (Encoder-Based) Field Oriented Control of a Three Phase Permanent Magnet Synchronous Motor (PMSM) Download
Sensorless Field Oriented Control (FOC) for a Permanent Magnet Synchronous Motor (PMSM) Using a PLL Estimator and Equation-based Flux Weakening (FW) Application Note Download
Title
The Difference Between MPLAB Harmony v3 PLIBs and Drivers, and When to Use Them Download
