The Temperature Indicator (TempIND) peripheral allows the microcontroller (MCU) to perform simple die temperature measurements without using external components. You can use the TempIND as a simple thermometer or temperature alarm.

The TempIND is internally connected to the on-board Analog-to-Digital Converter (ADC). The ADC converts the analog output of the peripheral to a digital value. The digital value can then be converted to a physical temperature (see the data sheet for more information on this process).

How Accurate Is It?


The accuracy of the TempIND depends on a variety of factors and varies depending on the device and the surrounding environment. More information about this can be found in the device documentation.

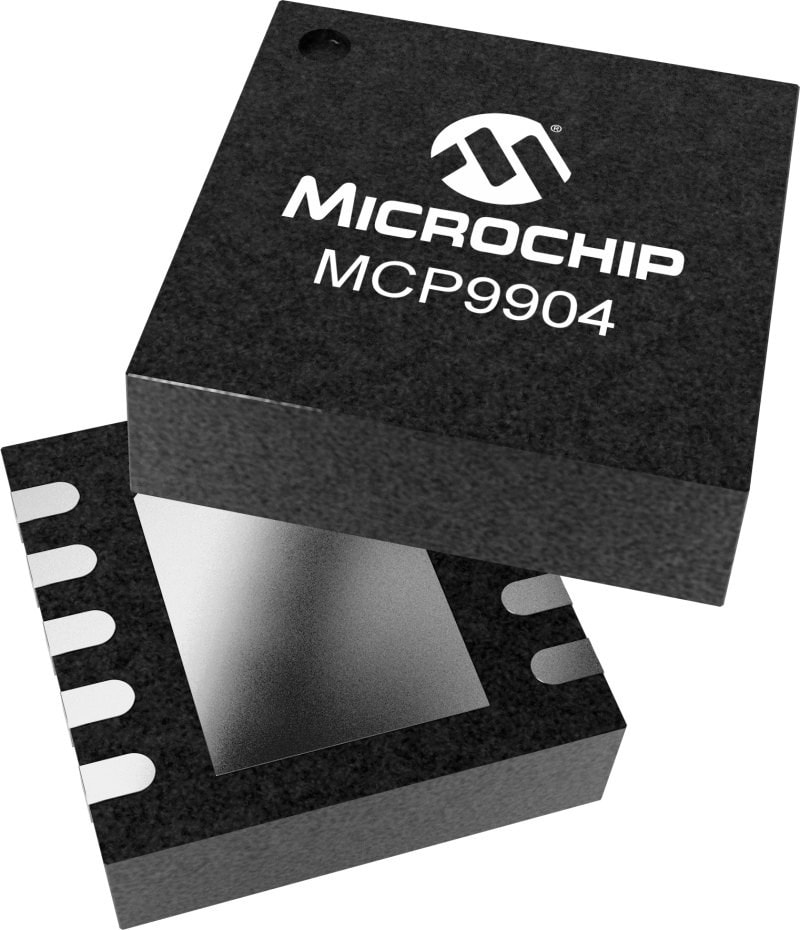

High Performance Temperature Sensors


For applications that require high-accuracy temperature measurements or remote sensing capabilities, we offer dedicated temperature-sensing integrated circuits.

8-bit Microcontrollers with Temperature Indicator


Documentation

Application Notes


Title
Temperature Indicator Module on 8-Bit Microcontrollers Download
Using the PIC16F/PIC18F Ground Referenced Temperature Indicator Module Download
Using the Temperature Indicator Module Download
AVR122: Calibration of the AVR`s Internal Temperature Reference Download
Use and Calibration of the Internal Temperature Indicator Download
