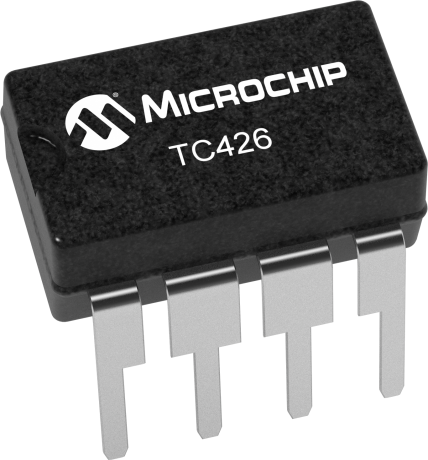

The TC426/TC427/TC428 are dual CMOS high-speed drivers. A TTL/CMOS input voltage level is translated into a rail-to-rail output voltage level swing. The CMOS output is within 25mV of ground or positive supply. The low impedance, high-current driver outputs swing a 1000pF load 18V in 30nsec. The unique current and voltage drive qualities make the TC426/TC427/TC428 ideal power MOSFET drivers, line drivers, and DC-to-DC converter building blocks. Input logic signals may equal the power supply voltage. Input current is a low 1A, making direct interface to CMOS/bipolar switch-mode power supply control ICs possible, as well as open-collector analog comparators. Quiescent power supply current is 8mA maximum. The TC426 requires 1/5 the current of the pin-compatible bipolar DS0026 device. This is important in DC-to-DC converter applications with power efficiency constraints and high-frequency switch-mode power supply applications. Quiescent current is typically 6mA when driving a 1000pF load 18V at 100kHz. The inverting TC426 driver is pin-compatible with the bipolar DS0026 and MMH0026 devices. The TC427 is noninverting; the TC428 contains an inverting and non-inverting driver. Other pin compatible driver families are the TC1426/27/28, TC4426/27/28, and TC4426A/27A/28A.

For product comparison, please consider: TC4426A

• High-Speed Switching (CL = 1000pF): 30nsec
• High Peak Output Current: 1.5A
• High Output Voltage Swing: VDD – 25mV GND +25mV
• Low Input Current (Logic "0" or "1"): 1mA
• TTL/CMOS Input Compatible
• Available in Inverting and Noninverting Configurations
• Wide Operating Supply Voltage: 4.5V to 18V
• Current Consumption
  • Inputs Low: 0.4mA
  • Inputs High: 8mA
• Single Supply Operation
• Low Output Impedance: 6Ω
• Pinout Equivalent of DS0026 and MMH0026
• Latch-Up Resistant: Withstands > 500mA Reverse Current
• ESD Protected: 2kV
