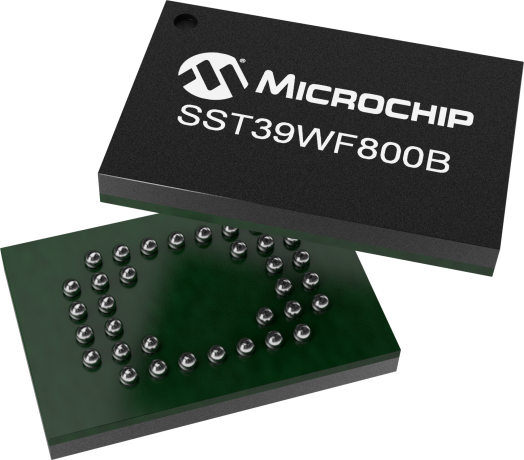

SST39WF800B

8Mb 1.65-1.95V Parallel Flash

Status: In Production

Features:

  • Organized as 512K x16
  • Low Power Consumption: Active Current: 5 mA (typical) Standby Current: 5 µA (typical)
  • Sector-Erase Capability: Uniform 2 KWord sectors
  • Block-Erase Capability: Uniform 32 KWord blocks
  • Fast Erase and Word-Program – Sector-Erase Time: 36 ms (typical), Block-Erase Time: 36 ms (typical), Chip-Erase Time: 140 ms (typical), Word-Program Time: 28 µs (typical)
  • Packages Available: 48-ball TFBGA (6mm x 8mm),48-ball WFBGA (4mm x 6mm), 48-ball XFLGA (5mm x 6mm), 48-ball XFLGA (4mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST39WF800B is a 512K x16 CMOS Multi-Purpose Flash (MPF) manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared to alternate approaches. The SST39WF800B writes (Program or Erase) with a 1.65-1.95V power supply. This device conforms to JEDEC standard pin assignments for x16 memories.

Additional Features
  • Organized as 512K x16
  • Low Power Consumption: Active Current: 5 mA (typical) Standby Current: 5 µA (typical)
  • Sector-Erase Capability: Uniform 2 KWord sectors
  • Block-Erase Capability: Uniform 32 KWord blocks
  • Fast Erase and Word-Program – Sector-Erase Time: 36 ms (typical), Block-Erase Time: 36 ms (typical), Chip-Erase Time: 140 ms (typical), Word-Program Time: 28 µs (typical)
  • Packages Available: 48-ball TFBGA (6mm x 8mm),48-ball WFBGA (4mm x 6mm), 48-ball XFLGA (5mm x 6mm), 48-ball XFLGA (4mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
8 Mbit
Op. Volt Range (V)
1.65 to 1.95
Max. Clock Freq.
0 kHz
Read Access Time
70 ns
Temp Range (°C)
-40°C to +85°C
Endurance
100,000

Documents

Jump to:

Brochures

12/19/2017
3698KB
10/06/2014
3370KB

Product Brief

Product Line Card

Brochures

09/19/2012
740KB
