Status: In Production

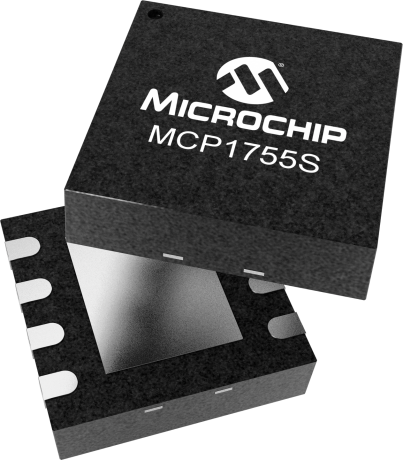

The MCP1755/MCP1755S is a 16 volt, high PSRR voltage regulator with short circuit current foldback. The MCP1755/MCP1755S regulator provides up to 300 mA of current. The input operating voltage range is specified from 3.6V to 16V continuous, 18V absolute maximum, making it ideal for automotive and commercial 12 VDC systems. The MCP1755/ MCP1755S typically delivers 70 dB of ripple rejection at 1 kHz, making the device ideal for AC sensitive applications like GFCI and AFCI circuit breaker designs. The Current Foldback feature is a true short circuit current foldback. The device current will fall back towards 10 mA under short circuit conditions. When the short is removed, the device will recover and continue operating.
The Microchip Wireless Power Micro-Receiver allows users to quickly add wireless charging functionality to their projects without having to deal with complex specific protocols or state machines. This receiver is implemented using a general purpose 8-bit microcontroller and is a flexible, low-cost alternative to the common wireless charging solutions based on ASICs. The receiver is compatible...
For pricing and availability, contact Microchip Local Sales.
