A Complete Multimedia Development System

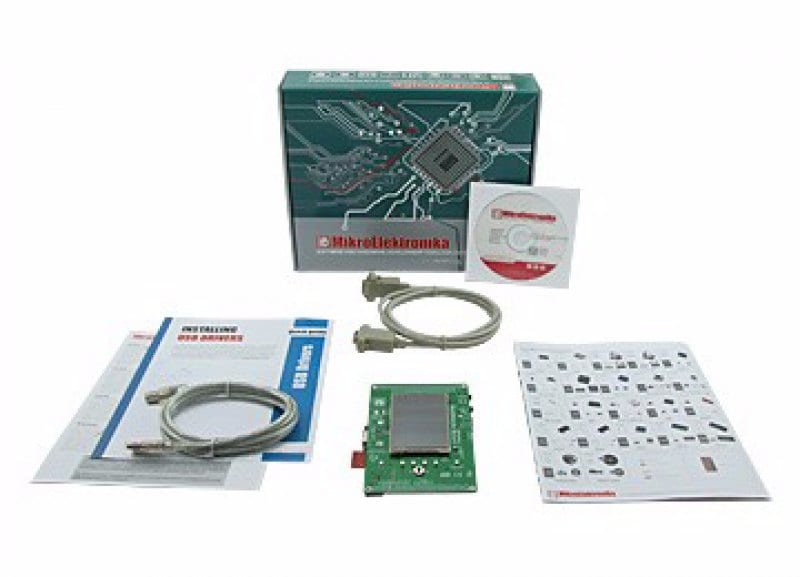

The 32-bit Multimedia Board from mikroElektronika is a compact, all inclusive development board for complete, high quality multimedia development. The board comes packaged with printed user manuals and schematics and a CD full of example projects that are easy to use, and really show the power of the PIC32. The 17+ MB of included code examples are written using Microchip’s software stacks, making them easy to port with few modifications. The board has enough power to stream 16-bit color video at 15 frames per second, from an SD Card.

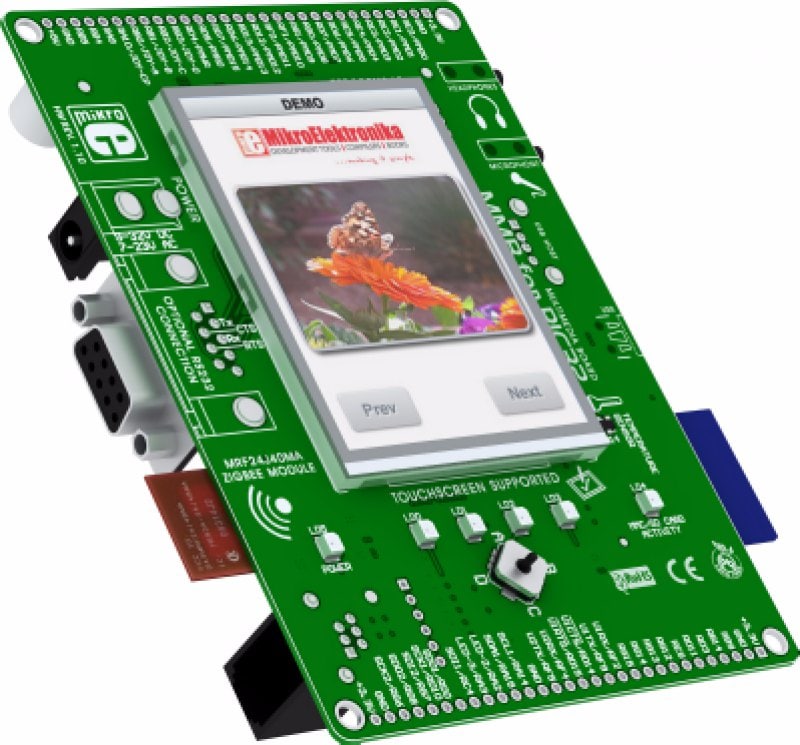

The board contains a 320x240 Touch Screen Panel, 4-way joystick, Microchip’s MCP9700A Temperature Sensor, optional MRF24J40MA ZigBee Module, headphone and microphone connectors, RS-232 port, and prototyping pins. The back side reveals the brains of the board – a PIC32MX460F512L device. The back side also includes USB Host and Device connectors, M25P80 Flash device, a 24LC01 Serial EEPROM, External ICD Connector, SD Card Slot, Stereo Codec chip with integrated Headphone driver, and a digital accelerometer. It can be powered by USB or by a user-supplied AC or DC power supply.
A Complete Multimedia Development System
The 32-bit Multimedia Board from mikroElektronika is a compact, all inclusive development board for complete, high quality multimedia development. The board comes packaged with printed user manuals and schematics and a CD full of example projects that are easy to use, and really show the power of the PIC32. The 17+ MB of included code examples are written using Microchip’s software stacks, making them easy to port with few modifications. The board has enough power to stream 16-bit color video at 15 frames per second, from an SD Card.
The board contains a 320x240 Touch Screen Panel, 4-way joystick, Microchip’s MCP9700A Temperature Sensor, optional MRF24J40MA ZigBee Module, headphone and microphone connectors, RS-232 port, and prototyping pins. The back side reveals the brains of the board – a PIC32MX460F512L device. The back side also includes USB Host and Device connectors, M25P80 Flash device, a 24LC01 Serial EEPROM, External ICD Connector, SD Card Slot, Stereo Codec chip with integrated Headphone driver, and a digital accelerometer. It can be powered by USB or by a user-supplied AC or DC power supply.

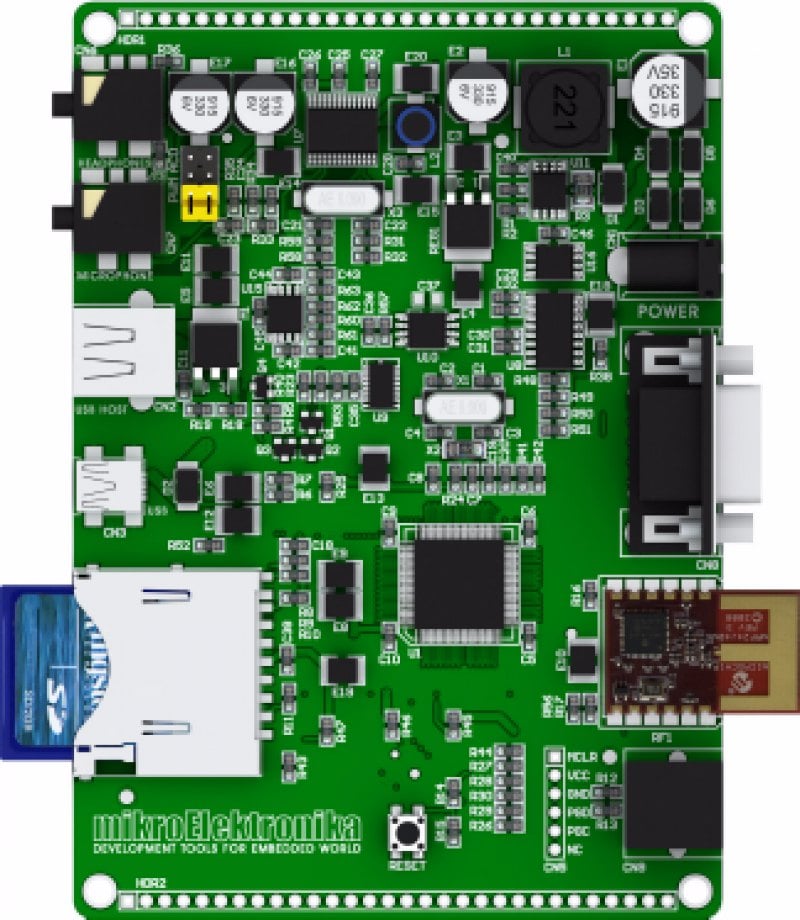

What’s On Board
- There are headphone and microphone connectors on-board for audio testing.
- Host and Device USB Connectors are available for USB device developing needs.
- On-board MMC(SD) card slot is used testing mass storage and data acquisition applications.
- There is a reset circuit that is connected to the MCLR Pin of the microcontroller.
- PIC32MX460F512L is the 32-bit microcontroller powering the development board.
- On-board 2.4 GHz IEEE 802.15.4 Transceiver Module (optional).
- There is connector on-board for connecting External ICD.
- RS-232 communication with PC or another microcontroller.
- Power supply can be DC or AC. Supervisor circuit enables stable system power supply.
- Show advanced visual messages using TFT Color Display 320x240 with Touch Screen.
- Joystick can be used for handling the on-screen menus or as a generic input device.
- Analog Temperature Sensor MCP9700A for measuring temperature from -40ºC to 125ºC.
- You can measure static or dynamic acceleration with ADXL345 Digital Accelerometer.
- There is M25P80 (8 Mbit Serial Flash Memory) that use SPI interface.
- Store prototype device configuration parameters in 24LC01 Serial EEPROM.
- On-board WM8731SEDS - Stereo Codec with an integrated headphone driver.
- Display LD0, LD1, LD2 and LD3 microcontroller pins states with LE Diodes.
- Prototyping Pins allows the microcontroller to be interfaced with external circuits.
