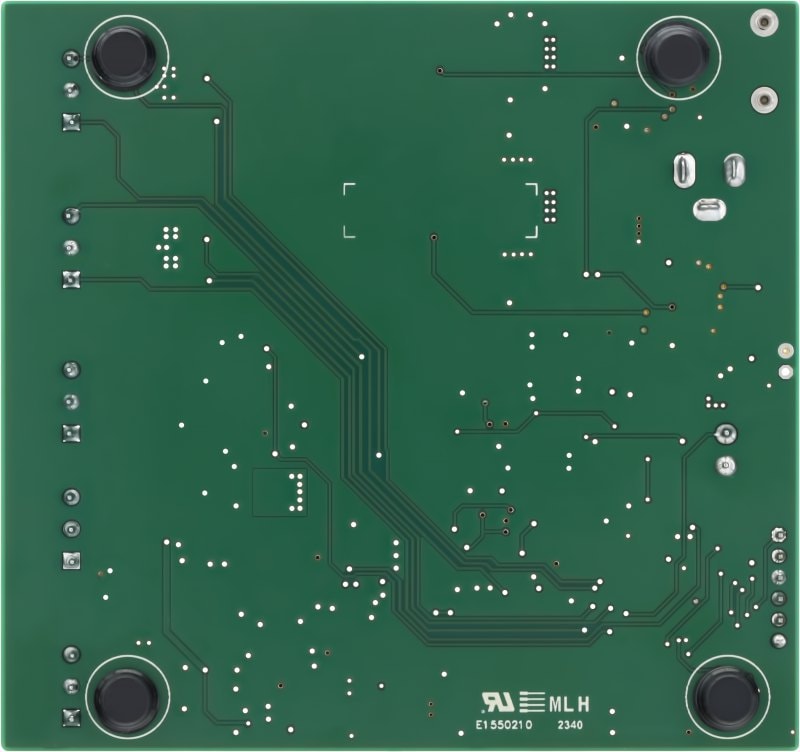

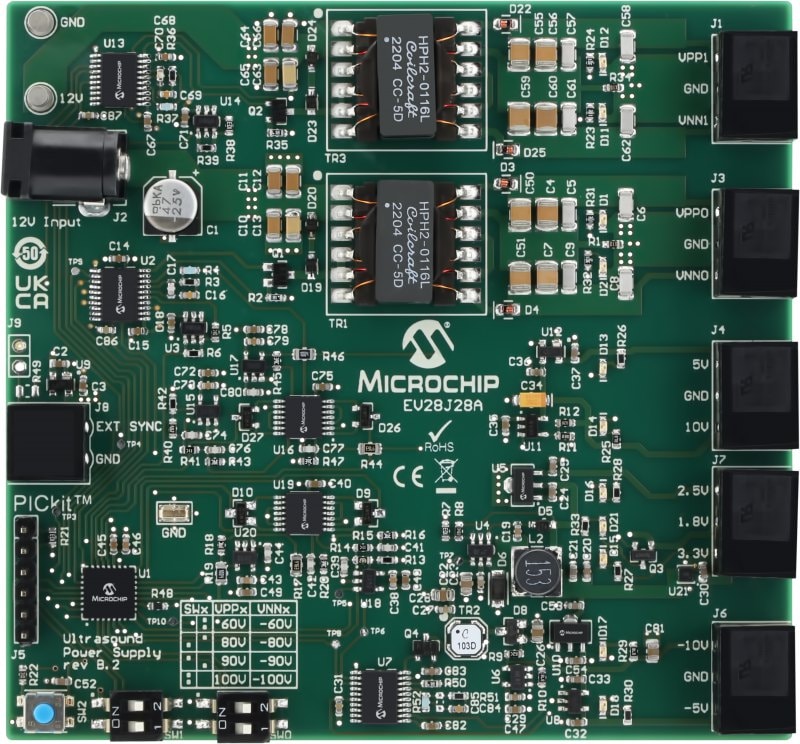

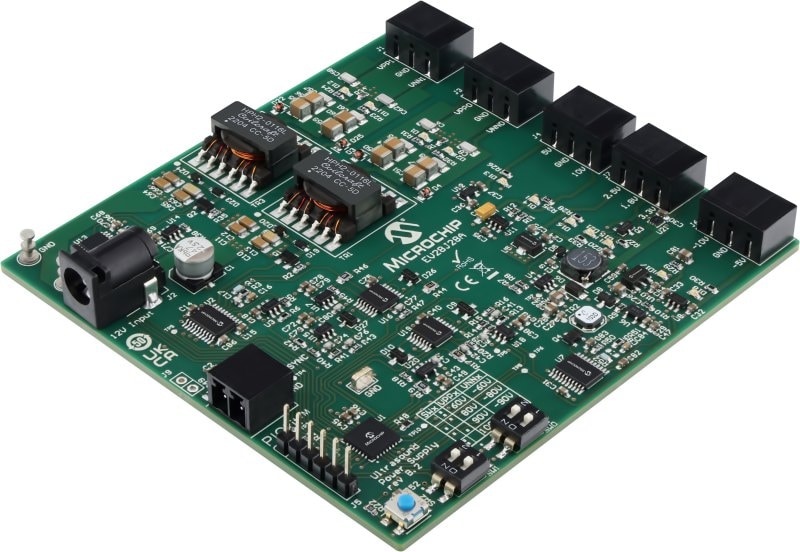

Part Number: EV28J28A
Ultrasound Power Supply EVB
Design benefits:
- features all the necessary voltage rails for Microchip Ultrasound pulser and mux demos
- power sequencing and fault protection
- features external synchronization
Overview
Key features:
- Single 12V input (compatible also with standard 2.5mm power jack)
- Automatic powerup/down sequencing
- Available independent rails: 1.8V, 2.5V, 3.3V, 5V, -5V, 10V, -10V, VPP0, VNN0, VPP1, VNN1
- VPP rails configurable as: 60V, 80V, 90V or 100V
- VNN rails configured opposite polarity to VPP rails
- Optional external synchronization for VPP0, VNN0, VPP1, VNN1, -10V
- Rails 1.8V, 2.5V, 3.3V, 5V, -5V, 10V provided by low ripple LDOs
- Status LEDs for all voltage rails
- Fault monitoring for VPP0, VNN0, VPP1, VNN1 rails, with automatic power down sequence in case of failure
Software
|
Title
|
Date
|
||
|---|---|---|---|
| Firmware EV28J28A | Download | 12 Dec 2023 |
Silicon Products
Product |
Title |
Product |
Title |
|---|---|---|---|
| PIC16F1716 | PIC16F1716 | ||
| MCP1631 | High-Speed PWM Controller w/Peak Current Mode | MCP1631 | High-Speed PWM Controller w/Peak Current Mode |
| MCP65R41 | 3 µA Comparator with Integrated Reference | MCP65R41 | 3 µA Comparator with Integrated Reference |
| MCP16301 | 30V Non-Synchronous Buck Regulator | MCP16301 | 30V Non-Synchronous Buck Regulator |
| MCP1700 | Low Quiescent Current LDO | MCP1700 | Low Quiescent Current LDO |
| MCP6H01 | 1.2 MHz, 16V Op Amps | MCP6H01 | 1.2 MHz, 16V Op Amps |
| MIC5270 | 100mA Negative uCap LDO Regulator | MIC5270 | 100mA Negative uCap LDO Regulator |
| MIC5203 | uCap 80mA Low-Dropout Regulator | MIC5203 | uCap 80mA Low-Dropout Regulator |
| MIC5205 | 150mA 1% Accuracy Low Noise LDO | MIC5205 | 150mA 1% Accuracy Low Noise LDO |
| MCP6544 | Push-Pull Output Sub-Microamp Comparators | MCP6544 | Push-Pull Output Sub-Microamp Comparators |
| MIC94345 | 500mA Fixed Output LDO with Ripple Blocker Technology | MIC94345 | 500mA Fixed Output LDO with Ripple Blocker Technology |
