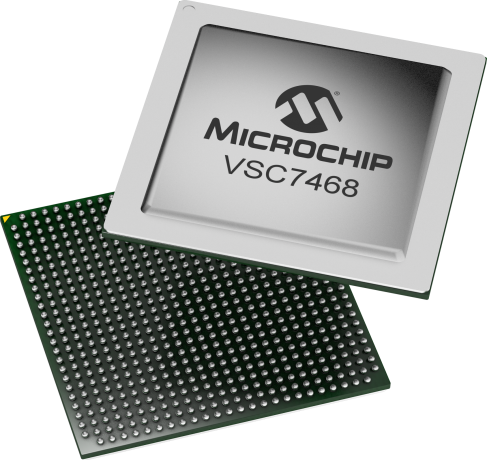

VSC7468

36 Port 80G Carrier Ethernet Switch

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's Carrier Ethernet switch family offers the highest performance, market-ready solution for MEF CE 2.0 services.

The VSC7468 Jaguar-2™ device targets IP Edge demarcation and aggregation equipment to deliver Enterprise and mobile backhaul services. VSC7468 is based on Virtualized Service Aware Architecture (ViSAA™), a silicon implementation that offers an unmatched level of Service Edge and Carrier Ethernet Networking features. ViSAA achieves wirespeed performance for even the most feature-rich Carrier Ethernet (CE) services. VSC7468 also integrates VeriTime™, patent-pending distributed timing technology that delivers the industry’s most accurate IEEE 1588v2 timing implementation to meet today’s LTE/LTE-A requirements.

The VSC7468 Carrier Ethernet switch contains up to thirty-two 10/100/1000 Mbps SGMII/SerDes ports, twelve 10/100/1000 QSGMII ports, and four 10 Gbps XAUI/SFI ports. VSC7468 provides a rich set of Carrier Ethernet switching features such as hierarchical QoS, hardware-based OAM (Ethernet and MPLS/MPLS-TP) and Service Activation Testing, protection switching, and Synchronous Ethernet. Using Provider Bridging (Q-in-Q) and MPLS/MPLSTP technology, VSC7468 delivers MEF CE 2.0 EVCs. It features advanced TCAM classification in both ingress and egress. Per-EVC features include advanced L3-aware classification, a rich set of statistics, OAM for end-to-end performance monitoring, and dual-rate policing and shaping.

VSC7468 supports IPv4/IPv6 Layer-3 (L3) routing with up to 4K IPv4 (1K IPv6) unicast LPM entries and 2K IPv4 (512 IPv6) L3 multicast groups. L3 security features include source guard and reverse path forwarding tasks.

VSC7468 supports application programming interface for easy integration with third-party application software. The device also supports Microsemi’s CEServices application software, dramatically reducing customer time-to-market.



Supported Ethernet Software Options

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches
    • VSC6818: CEServices Linux Application Software Package for Carrier Ethernet Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • 10GE PHYs
    • GE PHYs
    • 1588 software
    • API & BSP
    • CEServices (SDK)
    • Virtualized Service Aware Architecture (ViSAA™)
    • MPLS/MPLS-TP and Layer-3 routing support
    • MEF UNI and NNI functionality
    • Hardware-based Ethernet OAM, performance monitoring, and Service Activation Testing (RFC 2544 and Y.1564)
    • Single chip 48 x 1-GbE solution
    • Hierarchical QoS for priority queuing and subscriber separation
    • Service protection (linear, ring)
    • Integrated timing (VeriTime™ and SyncE)
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps 10Gbps
MAC
52
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII, QSGMII XFI, XAUI
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X, SFI
Vdd I/O (V)
1.0/1.2/2.5/3.3
On-Chip Termination
Yes
