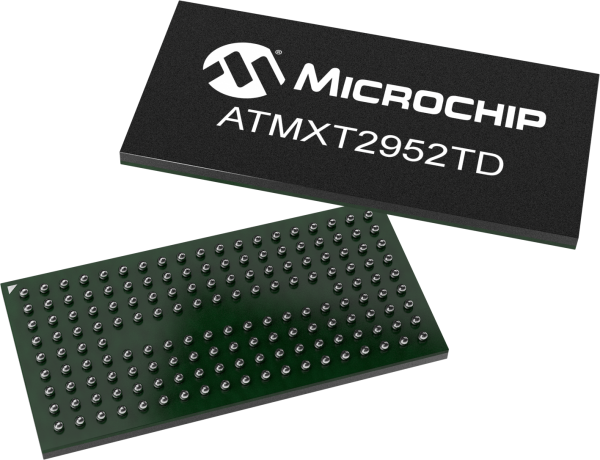

product primary image

ATMXT2952TD

Status: In Production

Features:

  • Communication via USB, I2C, HID-USB, and HID-I2C interfaces
  • Support multiple thick glove (5mm) touches
  • Support thick lens (up to 10mm glass or 5mm PMMA)
  • External high voltage support to increase signal to noise ratio (SNR)
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The ATMXT2952TD touchscreen controller is aimed at display sizes up to 21” used in Industrial designs. This family of touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the industrial market. It enables dynamic touch classification, a feature that automatically and intelligently switches between self-capacitance and mutual-capacitance sensing to provide users a seamless transition between a finger touch and thick glove touch. Adaptive Sensing is also highly resistant to moisture.  Proprietary differential touch sensing delivers unparalleled noise immunity ensuring superior touch performance even in harsh environments, and with a thick cover lens.

Microchip’s new signal shaping technology is lowering emissions significantly and ensures that large touchscreen solutions based on the ATMXT2952TD meet customer requirements for electromagnetic interference. The controller also incorporates a new self and sensor diagnostic function, which constantly monitors the integrity of the touch system.

Support: off the shelf maXTouch standard modules are available to help shorten development time and reduce risk. Microchip also has a strong selection of factory trained global touch sensor module partners to help support custom touch sensor and/or touchscreen display designs.

Additional Features
  • Supports up to 16 concurrent touches in real time with touch size reporting
  • Communication via USB, I2C, HID-USB, and HID-I2C interfaces
  • HID Mouse Mode: single finger relative coordinate reporting emulating a mouse
  • Support multiple thick glove (5mm) touches
  • Support thick lens (up to 10mm glass or 5mm PMMA)
  • Superior moisture performance
  • Dual boot OS support for Microsoft Windows and Android
  • Package: 162-ball UFBGA
  • External high voltage support to increase signal to noise ratio (SNR)
  • Adaptive sensing (self and mutual capacitance)
  • Operating temperature range of -40 to +85 deg C
Parametrics
Name
Value
Interface Type
I2C and USB
Max Screen Size (Inch)
21
Touch Response
>200 Hz
Temperature Range (degC)
-40 to 85
Number of Touches
16
Max Nodes Supported
2911

Documents

Jump to:

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
D21 Bridge Board
D21 Bridge Board ( THW1027 )

This maXTouch USB Bridge product provides an interface to connect the I2C or SPI compatible based maXTouch devices to PC-based applications through a USB port.

The D21 bridge board significantly improves data throughput, increasing test and production efficiency. This board is twice as fast as other maXTouch bridge boards (ATUSB-PCB-80146 and ATUSB-I2C-AUTO-PCB).

Learn More
Add To Cart
ATUSB-HSBB-PCB
ATUSB-HSBB-PCB ( ATUSB-HSBB-PCB )

This maXTouch USB Bridge product is an ARM-based interface to convert I2C or SPI and debug signals to USB and communicate with the PC-based applications. This product is designed to be used with Microchip Automotive maXTouch touchscreen controllers.

Learn More
Add To Cart
ATMXT2952TD-A Evaluation Kit
ATMXT2952TD-A Evaluation Kit ( ATEVK-MXT2952TD-A )

This kit (ATEVK-MXT2952TD-A) is for the evaluation and development of Microchip maXTouch applications using the ATMXT2952TD Touchscreen Sensor IC.

Learn More
Add To Cart
ATMXT2952TD Development PCB
ATMXT2952TD Development PCB ( ATMXT2952TD-DEV-PCB )

This PCB (ATMXT2952TD-DEV-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT2952TD Touchscreen Sensor IC.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT2952TD-C2U001
0.048000
0.860714
162
UFBGA
10x5x0.6mm
LF35
e8
ATMXT2952TD-C2UR001
0.048000
0.365200
162
UFBGA
10x5x0.6mm
LF35
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
