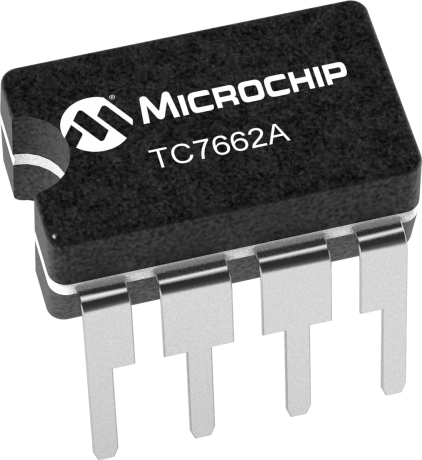

product primary image

TC7662A

Charge Pump DC-DC Voltage Converter

Status: In Production

Features:

  • Pin Compatible with ICL7662/SI7661/TC7660/ LTC1044
  • No External Diodes Required
  • Low Output Impedance @ IL = 20mA, 40 Ohms Typ.
  • No Low-Voltage Terminal Required
  • CMOS Construction
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The TC7662A is a pin-compatible upgrade to the Industry standard TC7660 charge pump voltage converter. It converts a +3V to +18V input to a corresponding –3V to –18V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and EMI. In addition to a wider power supply input range (3V to 18V versus 1.5V to 10V for the TC7660), the TC7662A can source output currents as high as 40mA. The on-board oscillator operates at a nominal frequency of 12kHz. Operation be-low 10kHz (for lower supply current applications) is also possible by connecting an external capacitor from OSC to ground. The TC7662A directly is recommended for designs requiring greater output current and/or lower input/output voltage drop. It is available in 8-pin PDIP, and CerDIP packages in commercial and extended temperature ranges.

Additional Features
    • Pin Compatible with ICL7662/SI7661/TC7660/ LTC1044
    • No External Diodes Required
    • Low Output Impedance @ IL = 20mA, 40 Ohms Typ.
    • No Low-Voltage Terminal Required
    • CMOS Construction
Parametrics
Name
Value
Typical Active Output Current (mA)
40
Output Voltage (V)
Vout = -Vin or Vout = 2Vin
Typical Quiescent Current (µA)
190
Input Voltage Range (V)
3 to 18
Operating Temp. Range (°C)
-45 to 85
Device Description
Inverting or Doubling

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC7662AIJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
TC7662AMJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
TC7662ACPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC7662AEPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
