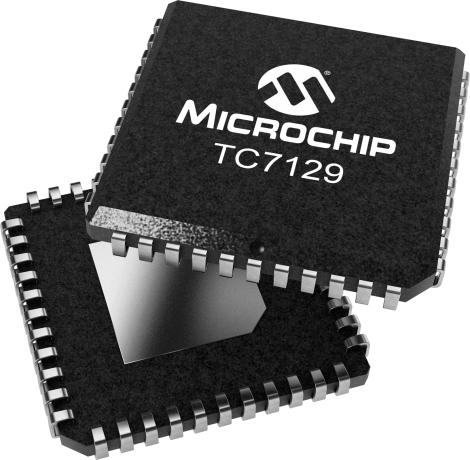

product primary image

TC7129

Status: In Production

Features:

  • Count Resolution: ±19,999
  • Resolution on 200 mV Scale: 10 µV
  • True Differential Input and Reference
  • Low Power Consumption: 500 µA at 9V
  • Direct LCD Driver for 4-1/2 Digits
  • Low Battery Indicator, and Continuity Indicator
  • Overrange and Underrange Outputs
  • Range Select Input: 10:1
  • High Common Mode Rejection Ratio: 110 dB
  • External Phase Compensation Not Required
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The TC7129 is a 4-1/2 digit analog-to-digital converter (ADC) that directly drives a multiplexed liquid crystal display (LCD).Fabricated in high-performance, low-power CMOS, the TC7129 ADC is designed specifically for high-resolution, battery-powered digital multimeter applications. The traditional dual-slope method of A/D conversion has been enhanced with a successive integration technique to produce readings accurate to better than 0.005% of full scale, and resolution down to 10µV per count. The TC7129 includes features important to multimeter applications. It detects and indicates low-battery condition. A continuity output drives an annunciator on the display, and can be used with an external driver to sound an audible alarm. Overrange and underrange outputs and a range-change input provide the ability to create auto-ranging instruments. For snapshot readings, the TC7129 includes a latch-and-hold input to freeze the present reading. This combination of features makes the TC7129 the ideal choice for full-featured multimeter and digital measurement applications.

Additional Features
    • Count Resolution: ±19,999
    • Resolution on 200 mV Scale: 10 µV
    • True Differential Input and Reference
    • Low Power Consumption: 500 µA at 9V
    • Direct LCD Driver for 4-1/2 Digits
    • Low Battery Indicator, and Continuity Indicator
    • Overrange and Underrange Outputs
    • Range Select Input: 10:1
    • High Common Mode Rejection Ratio: 110 dB
    • External Phase Compensation Not Required
Parametrics
Name
Value
Supply Voltage (V)
9
Power (mW)
4.5
Resolution (Digits)
4.5
Resolution (Counts)
20000
Display Type
LCD
Temp. Range (°C)
0 to 70
