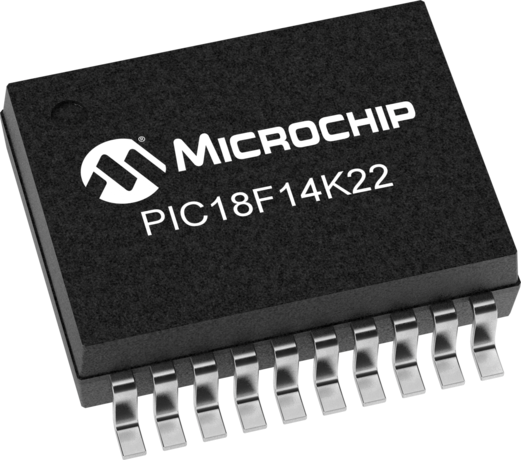

PIC18F14K22

Newer Device Available PIC18F24Q10

Status: In Production

Features:

  • C Compiler optimized architecture
  • 256 bytes data EEPROM
  • Linear program memory addressing to 16 Kbytes
  • Linear data memory addressing to 512 bytes
  • Sleep mode: 50 nA, typical
  • Watchdog Timer: 600 nA, typical
  • Timer1 Oscillator: 800 nA @ 32 kHz, typical
  • Factory calibrated to ± 1%
  • Software selectable frequencies range of 31 kHz to 16 MHz
  • 64 MHz performance available using PLL
  • No external components required
  • Four crystal modes up to 64 MHz
  • Fail-Safe Clock Monitor
  • Allows for safe shutdown if peripheral clock stops
  • Two-Speed Oscillator Start-up
  • Operating voltage 1.8V- 5.5V (with low voltage option 1.8V-3.6V)
  • Self-reprogrammable under software control
  • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Programmable Brown-out Reset (BOR)
  • Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
  • In-Circuit Serial Programming™ (ICSP™) via two pins
  • In-Circuit Debug via two pins
  • 12 Ch. 10-bit Analog-to-Digital (A/D) Converter module:
  • 2 rail-to-rail Analog Comparators module with:
  • Programmable on-chip voltage reference (CVREF) module (% of VDD)
  • Selectable Fixed voltage reference (FVR) with multiple reference voltages
  • High current sink/source 25 mA/25 mA
  • Three external interrupt pins
  • 3 16-bit timers/counters with prescaler
  • 1 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Programmable dead time
  • Auto-shutdown and Auto-restart
  • 3-wire SPI (supports all 4 SPI modes)
  • I2C™ Master and Slave modes (Slave mode with address masking)
  • Supports RS-232, RS-485 and LIN 2.0
  • Auto-Baud Detect
  • Confi gurable inputs and outputs
  • Supports mTouch™ capacitive sensing applications
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

Introducing the nanoWatt XLP PIC18F1XK22 Flash microcontroller: not too big, not too small… just right! This new family of devices offer all of the advantages of the well recognized PIC18F High Performance MCUs; 8-bit, C compiler optimized architecture and an industry leading peripheral set now available in a low pin-count option. These new 20-pin products include a 16 MHz precision Internal Oscillator which can be used with the standard 4X PLL to produce 16 MIPS of performance (64 MHz @ 3V). Standard analog peripherals include 12 channels of 10-bit A/D, Dual Rail-Rail Comparators with improved input/output multiplexing and an on-chip selectable Fixed Voltage Reference. Digital peripherals include an Enhanced Capture/Compare/PWM (ECCP+) module with PWM steering and a Master Synchronous Serial Port (MI2C,SPI) module with software controllable address masking. These devices also feature the SR Latch mode which supports capacitive sensing applications. In addition to these peripherals, the devices feature several microcontroller monitors that provide for reliable operation including BOR (Brown Out Reset) with software enable, POR (Power On Reset) and an Extended WDT. The addition of nanoWatt XLP technology make these devices ideally suited for battery powered applications or designs where power consumption is constrained.

For product comparison, please consider: PIC18F24Q10

Additional Features

    Features

    • C Compiler optimized architecture
    • 256 bytes data EEPROM
    • Linear program memory addressing to 16 Kbytes
    • Linear data memory addressing to 512 bytes

    Extreme Low-Power Management PIC18LF1XK22 with nanoWatt XLP™ Technology

    • Sleep mode: 50 nA, typical
    • Watchdog Timer: 600 nA, typical
    • Timer1 Oscillator: 800 nA @ 32 kHz, typical

    Flexible Oscillator Structure

    • Precision 16 MHz internal oscillator block:
      • Factory calibrated to ± 1%
      • Software selectable frequencies range of 31 kHz to 16 MHz
      • 64 MHz performance available using PLL
      • No external components required
    • Four crystal modes up to 64 MHz
    • Fail-Safe Clock Monitor
    • Allows for safe shutdown if peripheral clock stops
    • Two-Speed Oscillator Start-up

    Special Microcontroller Features

    • Operating voltage 1.8V- 5.5V (with low voltage option 1.8V-3.6V)
    • Self-reprogrammable under software control
    • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
    • Programmable Brown-out Reset (BOR)
    • Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
    • In-Circuit Serial Programming™ (ICSP™) via two pins
    • In-Circuit Debug via two pins

    Peripheral Highlights

    • 12 Ch. 10-bit Analog-to-Digital (A/D) Converter module:
    • 2 rail-to-rail Analog Comparators module with:
    • Voltage Reference module with:
      • Programmable on-chip voltage reference (CVREF) module (% of VDD)
      • Selectable Fixed voltage reference (FVR) with multiple reference voltages
    • 17 I/O pins and 1 input only pin:
      • High current sink/source 25 mA/25 mA
      • Three external interrupt pins
    • Four Timer modules:
      • 3 16-bit timers/counters with prescaler
      • 1 8-bit timer/counter with 8-bit period register, prescaler and postscaler
    • Enhanced Capture/Compare/PWM (ECCP) module with PWM output steering:
      • Programmable dead time
      • Auto-shutdown and Auto-restart
    • Master Synchronous Serial Port (MSSP) module with two modes of operation:
      • 3-wire SPI (supports all 4 SPI modes)
      • I2C™ Master and Slave modes (Slave mode with address masking)
    • Enhanced Universal Synchronous Asynchronous Receiver Transmitter module (EUSART)
      • Supports RS-232, RS-485 and LIN 2.0
      • Auto-Baud Detect
    • SR Latch (555 Timer) module with:
      • Confi gurable inputs and outputs
      • Supports mTouch™ capacitive sensing applications
Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
16
CPU Speed (MIPS/DMIPS)
16
SRAM (B)
512
Data EEPROM/HEF (bytes)
256
Digital Communication Peripherals
1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals
1 Input Capture, 1 ECCP,
Timers
1 x 8-bit, 3 x 16-bit
ADC Input
12 ch, 10-bit
Number of Comparators
2
Temperature Range (°C)
-40 to 125
Operating Voltage Range (V)
1.8 to 5.5
Pin Count
20
Low Power
Yes

Documents

Jump to:
×

Data Sheets

PIC18(L)F1XK22 Data Sheet

3442KB

Errata

PIC18(L)F1XK22 Family Silicon Errata and Data Sheet Clarification

314KB

Supporting Collateral

Functional Safety Ready PIC16 and PIC18 microcontrollers - FMEDA, Safety Manual and Safety Certified Development Tools

372KB
PIC Microcontroller Compiled Tips 'n Tricks Guide

5964KB
PIC® MCU Tips 'n Tricks Featuring nanoWatt XLP Technology

643KB

Programming Specifications

PIC18F1XK22/PICLF1XK22 Flash Memory Programming

462KB

Application Notes

Download All
AN1416 - Low-Power Design Guide

274KB
AN1921 - Microchip TCP/IP Lite Stack

984KB
AN1267 - eXtreme Low-Power (XLP) PIC Microcontrollers: An Introduction to Microchip's Low-Power Devices

184KB
AN2059 - LIN Basics and Implementation of the MCC LIN Stack Library on 8-Bit PIC Microcontrollers

1557KB
AN2045 - Interfacing Serial EEPROMs with 8-Bit PIC Microcontrollers

2087KB
AN1450 - Delay Block/Debouncer

1414KB

Appnote Source Code

AN1921 Source code

3028KB
AN2045 EXP8I2CClick.X.zip - Interfacing Serial EEPROMs with 8-Bit PIC Microcontrollers

684KB
AN2045 EXP8SPIClick.X.zip - Interfacing Serial EEPROMs with 8-Bit PIC Microcontrollers

417KB

White Papers

Differential and Single-Ended ADC

161KB

Brochures

Corporate Product Selector Guide

3905KB
8-bit PIC® Microcontroller Solutions

3380KB
eXtreme Low Power (XLP) PIC® MCUs Brochure

3359KB
Core Independent Peripherals for 8-bit PIC(R) Microcontrollers Brochure

3731KB
MPLAB® X IDE Product Overview

182KB
nanoWatt XLP Mini-Poster

780KB
nanoWatt XLP PIC18F1XK22 Flash MCU Product Overview

156KB
nanoWatt XLP PIC18F1XK22 Flash MCU

105KB
PIC18F "K22" Family of Microcontrollers Product Overview

115KB

User Guides
