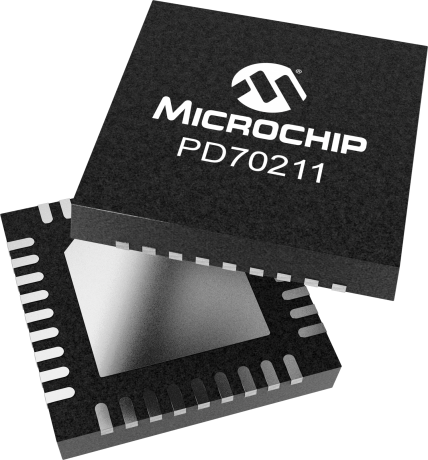

product primary image

PD70211

IEEE 802.3at / PoH PD front-end and PWM controller IC w/internal 0.3 Ohm FET

Status: In Production

Features:

  • Supports IEEE 802.3af/at, HDBaseT both 2-pair / 4-pair configurations
  • Wall-adapter support (Rear Aux method)
  • PD detection & programmable classification
  • 2,3,4, and 6 event classification
  • Integrated 0.3 Ohm isolating (series-pass) FET
  • Inrush current limiting
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

PD70211 is an advanced Powered Device (PD) Interface IC with integrated switching (PWM) regulator control for PDs in PoE applications. It supports IEEE 802.3af, IEEE 802at, HDBaseT and general 2/4-pair configurations. The PD70211 front-end includes an advanced classification block that supports 2, 3, 4, and 6 event classification. Using the SUPP_Sx pins, it also identifies which of the four pairs of the cable receives power and generates appropriate flags. The IC features an internal bleeder for discharging the input capacitor of the DC/DC converter rapidly, to ensure fast re-detection and port power-up in case of sudden removal and re-insertion of the Ethernet cable into the RJ-45. The advanced PWM current mode section supports synchronous flyback and active clamp forward topologies, as well as buck, boost etc.

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.

Additional Features
  • Supports IEEE 802.3af/at, HDBaseT both 2-pair / 4-pair configurations
  • Wall-adapter support (Rear Aux method)
  • PD detection & programmable classification
  • 2,3,4, and 6 event classification
  • Integrated 0.3 Ohm isolating (series-pass) FET
  • Inrush current limiting
  • Less than 10µA offset current during detection
  • Advanced PWM section
  • 36 pin, 6mm × 6 mm MLPQ
  • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PD IC
Standards Supported
IEEE 802.3af, IEEE 802.3at, dual-IEEE 802.3at, PoH
IC Type
PD Front end + PWM controller
POE Type
AT Type 2 / PoH
PoE Class
1-4
Output Power
95W
Maximum Current
2A
Maximum Channel Resistance
0.3 Ohm
Operating Temperature (C)
–40 to 85
Temperature Grade
Industrial
Integrated PWM Controller
Yes

Documents

Jump to:

Data Sheets


1013KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FWD conv. 3.3V 15A output
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FWD conv. 3.3V 15A output ( PD70211EVB50FW-3 )

The PD70211EVB50FW-3 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ...

Learn More
Add To Cart
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FWD conv. 5V 10A output
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FWD conv. 5V 10A output ( PD70211EVB50FW-5 )

The PD70211EVB50FW-5 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ...

Learn More
Add To Cart
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FB 12V 4.17A output
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FB 12V 4.17A output ( PD70211EVB51F-12 )

The PD70211EVB51F-12 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ...

Learn More
Add To Cart
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FWD conv. 12V 6A output
IEEE802.3at/bt Type2/PoH EVB PD70211 4pair w/isolated FWD conv. 12V 6A output ( PD70211EVB72FW-12 )

The PD70211EVB72FW-12 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the detection, class, and power supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ...

Learn More
Add To Cart
8 x 2-pair PSE EVB, 2 PDs, featuring PD69208M + PD69200 loaded w/IEEE802.3at FW
8 x 2-pair PSE EVB, 2 PDs, featuring PD69208M + PD69200 loaded w/IEEE802.3at FW ( PD-IM-7608M-2 )

PD-IM-7608M-2 evaluation board is developed based on PD69208M PSE manager, PD69200 PSE Controller, PD70224 ideal diode bridge and PD70211 PD IC. It provides a dual input PD-PSE system, each PD supports up to 60 watt with additional support of AUX DC input. The AUX input gets priority in supplying the load and when it is connected to the application the PD inputs are acting as backup power in

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD70211ILQ-TR
0.000000
0.210000
36
VQFN
6x6x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
