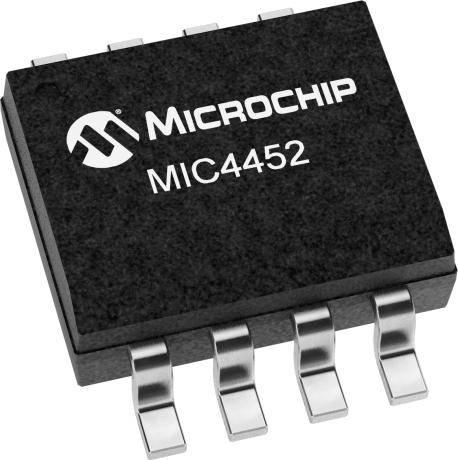

product primary image

MIC4452

12A Non-Inverting Peak Low Side MOSFET Driver

Status: In Production

Features:

  • BiCMOS/DMOS construction
  • Latch-up proof: fully isolated process is inherently immune to any latch-up.
  • Input will withstand negative swing of up to 5V
  • Matched rise and fall times 25ns
  • High peak output current 12A peak
  • Wide operating range 4.5V to 18V
  • High capacitive load drive 62,000pF
  • Low delay time 30ns typ.
  • Logic high input for any voltage from 2.4V to VS
  • Low equivalent input capacitance (typ.) 7pF
  • Low supply current 450µA with logic 1 input
  • Low output impedance 1.0Ω
  • Output voltage swing to within 25mV of ground or VS
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

MIC4451 and MIC4452 CMOS MOSFET drivers are tough, efficient, and easy to use. The MIC4451 is an inverting driver, while the MIC4452 is a non-inverting driver. Both versions are capable of 12A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4451/4452 accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge. MIC4451/4452 drivers can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly cost. Modern Bipolar/CMOS/DMOS construction guarantees freedom from latch-up. The rail-to-rail swing capability of CMOS/DMOS helps ensure adequate gate voltage to the MOSFET during power up/down sequencing. Since these devices are fabricated on a self-aligned process, they have very low crossover current, run cool, use little power, and are easy to drive.

Additional Features
    • BiCMOS/DMOS construction
    • Latch-up proof: fully isolated process is inherently immune to any latch-up.
    • Input will withstand negative swing of up to 5V
    • Matched rise and fall times 25ns
    • High peak output current 12A peak
    • Wide operating range 4.5V to 18V
    • High capacitive load drive 62,000pF
    • Low delay time 30ns typ.
    • Logic high input for any voltage from 2.4V to VS
    • Low equivalent input capacitance (typ.) 7pF
    • Low supply current 450µA with logic 1 input
    • Low output impedance 1.0Ω
    • Output voltage swing to within 25mV of ground or VS
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Non-Inverting
Peak Output Current (source/sink, A)
12.0/12.0
Output Resistance (source/sink, Ω)
0.8/0.6
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
25/40
Rise/Fall Time (Tr/Tf, ns)
20/24
Capacitive Load Drive
10,000 pF in 24 ns
