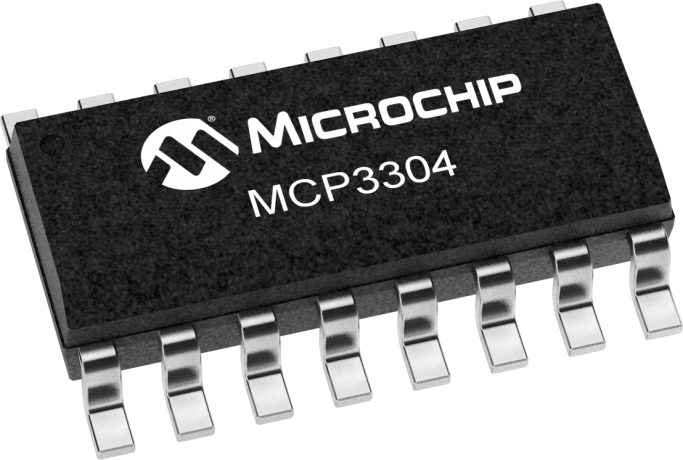

product primary image

MCP3304

13-Bit, 100kSPS, 4-Channel ADC

Status: In Production

Features:

  • 13-bit resolution
  • Four Differential input
  • SPI interface
  • ±1 LSB DNL
  • ±1 LSB INL
  • 100 ksps sample
  • -40 to +85°C temperature range
  • AEC-Q100 Grade 3
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The MCP3304 13-bit Analog to Digital Converter (ADC) features full differential inputs and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The industry-standard SPI™ serial interface enables 13-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3304 features 100k samples/second, 1 input channel, low power consumption (300 nA typical standby, 450µA maximum active), and is available in 16-pin PDIP and SOIC packages. The full differential inputs of the MCP3304 enable a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation, and battery operated applications.

Additional Features
    • 13-bit resolution
    • Four Differential input
    • SPI interface
    • ±1 LSB DNL
    • ±1 LSB INL
    • 100 ksps sample
    • -40 to +85°C temperature range
    • AEC-Q100 Grade 3
Parametrics
Name
Value
Max Sample Rate (ksamples/sec)
100
Typ. INL ± (LSB)
0.5(Grade B), 1(Grade C)
Max. Supply Current (µA)
450
Input Type
Differential
# of Input Channels
4
Resolution (bits)
13
Interface
SPI
Temp Range (°C)
-40 to +85°C
Input Voltage Range (V)
0 to 5.5

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP3304-BI/SL
0.157400
0.300000
16
SOIC
.150in
Matte Tin
e3
MCP3304-CI/SL
0.157400
0.300000
16
SOIC
.150in
Matte Tin
e3
MCP3304T-BI/SL
0.157400
0.307692
16
SOIC
.150in
Matte Tin
e3
MCP3304T-CI/SL
0.157400
0.307692
16
SOIC
.150in
Matte Tin
e3
MCP3304-BI/P
1.112700
1.833333
16
PDIP
.300in
Matte Tin
e3
MCP3304-CI/P
1.112700
1.833333
16
PDIP
.300in
Matte Tin
e3
MCP3304-CI/PREL
1.112700
1.833333
16
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
