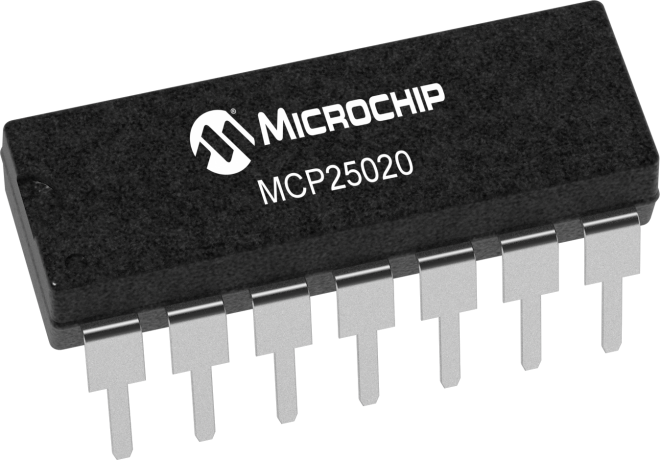

product primary image

MCP25020

CAN Input/Output Expander. Contains up to 8 digital I/O and up to 2 PWM ouputs configurable by the user.

Status: Not Recommended for new designs

Features:

  • Implements CAN V2.0B
  • CAN I/O Expander
  • configurable I/O
  • 2 PWM outputs
  • Low-power CMOS technology

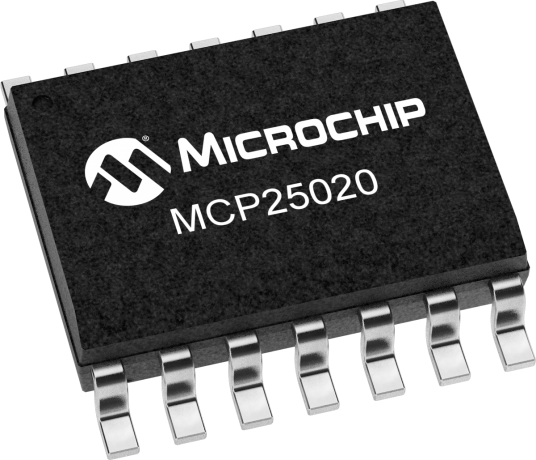

  • 14-pin PDIP (300 mil) and SOIC (150 mil) packages
  • Industrial (I): -40°C to +85°C
  • Extended (E): -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP2502X/5X devices operate as I/O expanders for a Controller Area Network (CAN) system, supporting CAN V2.0B active, with bus rates up to 1 Mb/s. Contains up to 8 digital I/O and up to 2 PWM ouputs configurable by the user. The MCP2502X/5X allows a simple CAN node to be implemented without the need for a microcontroller.

Please consider this device MCP2515, MCP25625

Additional Features
  • Implements CAN V2.0B
  • CAN I/O Expander
  • configurable I/O
  • 2 PWM outputs
  • Low-power CMOS technology
  • 14-pin PDIP (300 mil) and SOIC (150 mil)packages
  • Industrial (I): -40°C to +85°C
  • Extended (E): -40°C to +125°C
Parametrics
Name
Value
Tx Buffers
3
Rx Buffers
2
Masks
1
Filters
2
Temp. Range (°C)
-40 to 125
Operating Voltage Range (V)
2.7 to 5.5

Documents

Jump to:

Data Sheets

Supporting Collateral

Programming Specifications

User Guides

Development Environment

  • Integrated Development Environments
  • Programmers
  • Demo & Evaluation Boards
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164301   PartNo: MCP25020 (14P)
  • Socket: AC164302   PartNo: MCP25020 (14SL)
Learn More
Add To Cart
Demo & Evaluation Boards
CAN BUS Analyzer Tool
CAN BUS Analyzer Tool ( APGDT002 )

The CAN BUS Analyzer Tool is a simple to use low cost CAN bus monitor which can be used to develop and debug a high speed CAN network. The tool supports CAN 2.0b and ISO11898-2 and a broad range of functions which allow it to be used across various market segments including automotive, industrial, medical and marine. The toolkit comes with all the hardware and software required to connect a CAN...

Learn More
Add To Cart
MCP2515 CAN Controller PICtail Demo Board
MCP2515 CAN Controller PICtail Demo Board ( MCP2515DM-PCTL )

The MCP2515 PICtail™ Demo Board implements a simple CAN bus using two nodes. One node uses the MCP2515 Stand Alone CAN controller and the other node uses the MCP25020 CAN I/O Expander. Each node utilizes one input (push button) and one output (LED).

The boards demonstrate a simple, inexpensive implementation of a CAN bus. The MCP2515 node transmits its input (push button)...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP25020-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25020-I/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25020T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25020T-I/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25020-I/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP25020-E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
