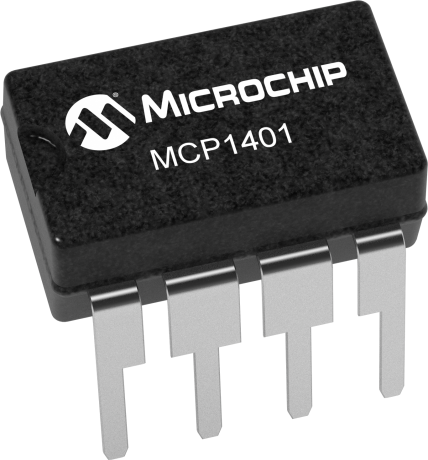

The MCP1401/02 are inverting and non-inverting, 500mA MOSFET drivers in SOT-23 packages. These small package MOSFET drivers allow the gate driver to be positioned close to the MOSFET's physical gate connection, which minimizes gate bounce caused by the parasitic effects of PCB layout. This also minimizes gate rise-times,-fall times, propagation-delay times and shoot-through current; all of which help to increase system efficiency and reduce power dissipation.

• Space-saving 5-Lead SOT-23 Package
• Wide Input Supply Operating Voltage Range: 4.5 V to 18V
• Low Shoot-Through/Cross-Conduction Current in Output Stage
• High Capacitive Load Drive Capability:
  • 470 pF in 19 ns (Typical)
  • 1000 pF in 34 ns (Typical)
• Matched, Short 35 ns Delay Times (Typical)
• Matched, Fast Rise and Fall Times (Under 20 ns, Typical)
• Low Output Impedance: Less Than 12 ohms (Typical)
• Low Supply Current Consumption:
  • 850 µA (Typical) with 3 V Logic Input
  • 100 µA (Typical) with 0 V Logic Input
• Robust Design:
  • Latch-Up Protected, Can Withstand Up to 500mA Reverse Current
  • Logic Input Will Withstand Up to 5V Negative Swings
  • ESD Protected
