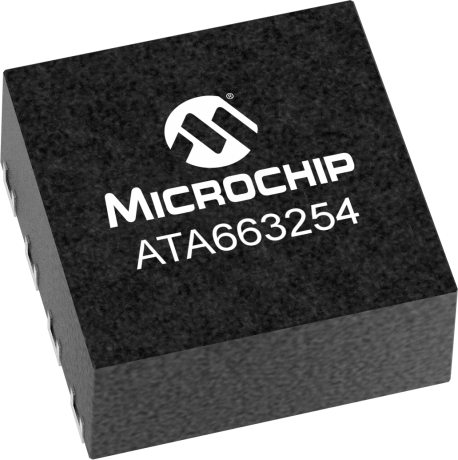

product primary image

ATA663254

LIN System Basis Chip Including 5.0V Voltage Regulator and NRES-Output

Status: In Production

Features:

  • Supply voltage up to 40V
  • Operating voltage VS = 5V to 28V
  • Sleep mode: typically 9μA
  • Silent mode: typically 47μA
  • Very low current consumption at low supply voltages (2V < VS < 5.5V): typically 130μA
  • MLC (multi-layer ceramic) capacitor with 0Ohm ESR
  • Normal, fail-safe, and silent mode: VCC = 5.0V ±2%
  • Sleep mode: VCC is switched off
  • VCC undervoltage detection with open drain reset output (NRES, 4ms reset time)
  • Voltage regulator is short-circuit and over-temperature protected
  • LIN physical layer according to LIN 2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
  • Wake-up capability via LIN bus (100μs dominant)
  • Wake-up source recognition
  • TXD time-out timer
  • Bus pin is over-temperature and short-circuit protected versus GND and battery
  • Advanced EMC and ESD performance
  • Fulfills the OEM “Hardware Requirements for LIN in Automotive Applications Rev.1.3”
  • Interference and damage protection according to ISO7637
  • Qualified according to AEC-Q100
  • DFN8 with wettable flanks (Moisture Sensitivity Level 1)
  • SO8
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip ATA663254 system basis chip is a fully integrated LIN transceiver, designed according to the LIN specification 2.0, 2.1, 2.2, 2.2A and SAEJ2602-2, with a low-drop voltage regulator with 5V/85mA. The combination of voltage regulator and bus transceiver makes it possible to develop simple but powerful slave nodes in LIN bus systems. Microchip ATA663254 is designed to handle the low-speed data communication in vehicles (for example, in convenience electronics). Improved slope control at the LIN driver ensures secure data communication up to 20Kbaud. The bus output is designed to withstand high voltage. Sleep mode and silent mode guarantee minimized current consumption even in the case of a floating or a shorted LIN bus. The voltage regulator is a fully integrated low-drop regulator working down to a supply voltage of 2.3V with best-in-class current consumption in linear mode (2V<VVS<5V) with less than 170µA. This enables storing data within the MCU during system shutdown even in case of an unexpected power supply interruption. The device is available in SO8 and DFN8 package with wettable flanks and pin assignment according to OEM hardware requirements for LIN-, CAN-, and Flexray- interfaces, rev. 1.3.

Please see our MikroElektronika click Board! https://www.mikroe.com/ata663254-click

Additional Features
    • Supply voltage up to 40V
    • Operating voltage VS = 5V to 28V
    • Supply current
      • Sleep mode: typically 9μA
      • Silent mode: typically 47μA
      • Very low current consumption at low supply voltages (2V < VS < 5.5V): typically 130μA
    • Linear low-drop voltage regulator, 85mA current capability:
      • MLC (multi-layer ceramic) capacitor with 0W ESR
      • Normal, fail-safe, and silent mode: VCC = 5.0V ±2%
      • Sleep mode: VCC is switched off
    • VCC undervoltage detection with open drain reset output (NRES, 4ms reset time)
    • Voltage regulator is short-circuit and over-temperature protected
    • LIN physical layer according to LIN 2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
    • Wake-up capability via LIN bus (100μs dominant)
    • Wake-up source recognition
    • TXD time-out timer
    • Bus pin is over-temperature and short-circuit protected versus GND and battery
    • Advanced EMC and ESD performance
    • Fulfills the OEM “Hardware Requirements for LIN in Automotive Applications Rev.1.3”
    • Interference and damage protection according to ISO7637
    • Qualified according to AEC-Q100
    • Packages:
      • DFN8 with wettable flanks (Moisture Sensitivity Level 1)
      • SO8
Parametrics
Name
Value
Description
LIN Transceiver with Vreg
Vreg Output Voltage Options (V)
5.0 -
Vreg Output Current (mA)
85
Max. Baud Rate (kBaud)
20
Vcc Range (V)
5 to 28
Integrated VREG
Yes

Documents

Jump to:
×

Data Sheet

ATA663201/ATA663203/ATA663231/ATA663254 Data Sheet
01/31/2019
1017KB

Application Notes

Download All
AN_8123 - AVR286: LIN Firmware Base for AVR microcontrollers with LIN/UART Controller
03/01/2008
317KB
AN_8125 - AVR292: LIN Break-in-Data Feature for AVR microcontrollers with LIN/UART Controller
03/01/2008
114KB
AN_9330 - ATAN0087: Development Board for the ATA663203/31/54 and the ATA663431/54
12/10/2016
2694KB
AN_9335 - ATAN0091: The Low Drop Voltage Regulators ATA6632xx
12/10/2016
433KB

Brochures

Automotive Compilation
08/01/2015
3116KB
Automotive Solutions
11/01/2013
5255KB

Getting Started

Automotive LIN Bus Driving Sensor Applications
10/01/2010
1013KB
LIN-Based Bootloader Implementation on ATA6616/17
10/01/2013
343KB
Simplifying the Design of Switch Applications with LIN Bus Connections
10/01/2012
1540KB
Two-Wire LIN Networking
10/01/2012
1989KB

Product Brief

TB3173 MCP202XA to ATA6632XX Migration
11/14/2017
431KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATAB663254A-V1.2
ATAB663254A-V1.2 ( ATAB663254A-V1.2 )

ATAB663254A-V1.2 is an evaluation tool for a quick start with s 4th generation LIN SBC including LIN transceiver + low drop 5V/85mA voltage regulator enabling easy prototyping and testing.

Learn More
Add To Cart

Similar Devices

Product
Vcc Range
Vreg Output Voltage V
LIN Spec Supported
Price 5K
ATA6612C
5 - 27
5.0 -
2.0, 2.1, 2.2, SAE J2602-2
$2.16
ATA6613C
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.37
ATA6614Q
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.58
ATA6616C
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.14
ATA6617C
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.06
ATA6622C
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
ATA6623C
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
ATA6624C
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
ATA6625
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA6625C
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
ATA6626C
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

ATA6628
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

ATA6629
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

ATA6630
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.13
ATA6631
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.96
ATA663201
5 - 28
3.3 -

$0.41
ATA663203
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.41
ATA663211
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.35
ATA663231
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663232
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663254
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663255
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663331
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA663354
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA663431
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA663454
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA664151
5 - 28
5 -


ATA6662C
5 - 27
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
ATA6663
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
ATA6664
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.53
ATA6670
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.93
ATSAMHA0E14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0E15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0E16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0G14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0G15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0G16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1E14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1E15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1E16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1G14A
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.90
ATSAMHA1G14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1G15A
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.93
ATSAMHA1G15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1G16A
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.99
ATSAMHA1G16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

MCP2003
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.59
MCP2003A
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.55
MCP2003B
6 - 30
-
1.3, 2.0, 2.1, SAEJ2602, ISO17987
$0.44
MCP2004
6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.59
MCP2004A
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.55
MCP2021
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$0.84
MCP2021A
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.81
MCP2022
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$1.01
MCP2022A
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
MCP2025
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
MCP2050
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$1.05

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA663254-GBQW
0.023100
0.098833
8
VDFN
3x3x0.9mm
Matte Tin
e3
ATA663254-GBQW-V07
0.023100
0.098833
8
VDFN
3x3x0.9mm
Matte Tin
e3
ATA663254-GBQW-VAO
0.023100
0.098833
8
VDFN
3x3x0.9mm
Matte Tin
e3
ATA663254-GAQW
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
