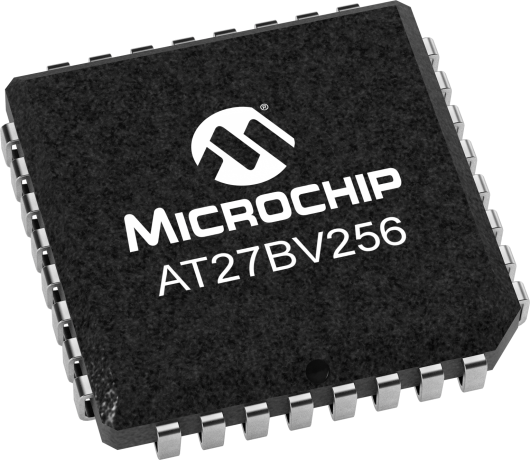

product primary image

AT27BV256

256Kb (32-Kbit x 8) Unregulated Battery-Voltage High-Speed OTP EPROM

Status: In Production

Features:

  • 256-Kbit (32-Kbit x 8)
  • Dual voltage range operation
  • Unregulated battery power supply range, 2.7V to 3.6V, or
  • Standard power supply range, 5V +/-10%
  • Parallel Interface
  • 70 ns access time
  • Pin compatible with Microchip AT27C256R
  • Low-power CMOS operation
  • 20 μA max standby (less than 1 μA, typical) for VCC = 3.6V
  • 29 mW max active at 5 MHz for VCC = 3.6V
  • High-reliability CMOS technology
  • 2,000V ESD protection
  • 200 mA latchup immunity
  • Rapid programming algorithm – 100 μs/byte (typical)
  • CMOS and TTL compatible inputs and outputs
  • JEDEC standard for LVTTL and LVBO
  • Integrated product identification code
  • Industrial Temperature Range: -40°C to 85°C
  • Available in Green (Pb/Halide-free) Packaging Only
  • 32-lead, Plastic J-leaded Chip Carrier (PLCC)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip AT27BV256 is a high-performance, low-power, Battery-Voltage 256-kbit One Time Programmable EPROM organized as 32-Kbit x 8. Requiring a single power supply in the range of 2.7V to 3.6V; any byte can be accessed in less than 70 ns. With typical power consumption of only 18 mW at 5 MHz and VCC = 3V, the AT27BV256 consumes less than one-fifth the power of a standard, 5V EPROM, making it ideal for fast, portable systems using either regulated or unregulated battery power.

Additional Features
    • 256-Kbit (32-Kbit x 8)
    • Dual voltage range operation
      • Unregulated battery power supply range, 2.7V to 3.6V, or
      • Standard power supply range, 5V +/-10%
    • Parallel Interface
      • 70 ns access time
    • Pin compatible with Microchip AT27C256R
    • Low-power CMOS operation
      • 20 μA max standby (less than 1 μA, typical) for VCC = 3.6V
      • 29 mW max active at 5 MHz for VCC = 3.6V
    • High-reliability CMOS technology
      • 2,000V ESD protection
      • 200 mA latchup immunity
    • Rapid programming algorithm – 100 μs/byte (typical)
    • CMOS and TTL compatible inputs and outputs
      • JEDEC standard for LVTTL and LVBO
    • Integrated product identification code
    • Industrial Temperature Range: -40°C to 85°C
    • Available in Green (Pb/Halide-free) Packaging Only
      • 32-lead, Plastic J-leaded Chip Carrier (PLCC)
Parametrics
Name
Value
Density
256Kb
Read Access Time
70 ns
Temp Range (°C)
-40°C to +85°C

Documents

Jump to:

Data Sheet


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K


PLCC-32
$1.46


PDIP-28, PLCC-32
$1.04


PLCC-32
$1.16

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT27BV256-70JU
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
AT27BV256-70JU-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
AT27BV256-70TU
0.232100
1.696581
28
TSOP
8x11.8x1mm
Matte Tin
e3
AT27BV256-70TU-T
0.232100
0.048000
28
TSOP
8x11.8x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
