Overview
This product is no longer available for sale.

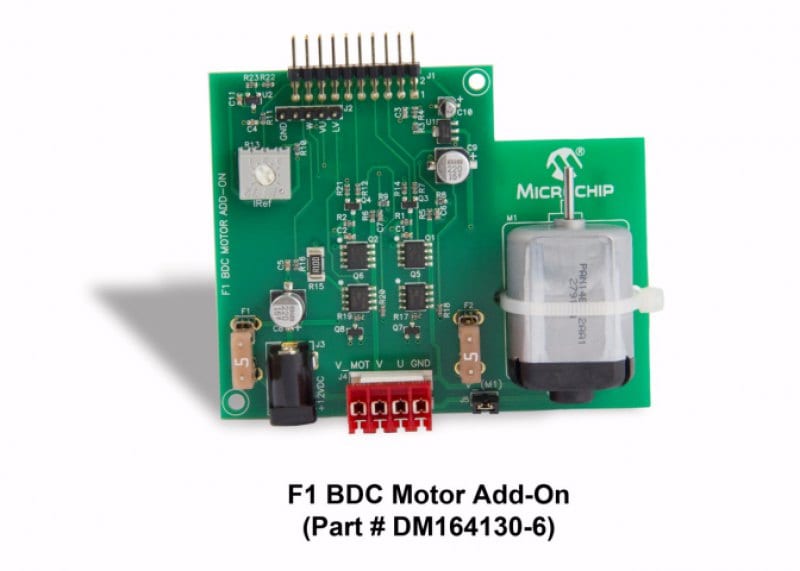

The BDC Motor add-on is a simple development accessory that plugs directly into the F1 LV Evaluation Platform and incorporates all the components necessary to implement Brushed DC motor control. Key features include: 2 MOSFET half bridge circuits, motor current limit adjustment, debug header, and pin header connector for the motor and power supply.
The BDC Motor add-on is a simple development accessory that plugs directly into the F1 LV Evaluation Platform and incorporates all the components necessary to implement Brushed DC motor control. Key features include: 2 MOSFET half bridge circuits, motor current limit adjustment, debug header, and pin header connector for the motor and power supply.
- Direct connect to F1 LV Evaluation Platform (does not support the F1 Evaluation Platform)
- 2 MOSFET half bridge circuits for BDC motor drive
- Pin connector interface for motor
- Motor current limiting adjustment
- 12V plug with voltage regulation
- Debug Header
- Pin connector for additional power connections
- 5A Fuses
The BDC Motor add-on is a simple development accessory that plugs directly into the F1 LV Evaluation Platform and incorporates all the components necessary to implement Brushed DC motor control. Key features include: 2 MOSFET half bridge circuits, motor current limit adjustment, debug header, and pin header connector for the motor and power supply.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| F1 Demo Code | Code Examples | Download | ||
| F1 LV Evaluation Platform Motor Control Add-ons User's Guide | User Guide | Download | ||
| F1 Schematics | Board Design Files | Download | ||
| F1 LV Evaluation Platform for Enhanced PIC® Microcontrollers User's Guide | User Guide | Download | ||
| F1 Evaluation Platform for Enhanced PIC Microcontrollers User's Guide | User Guide | Download |
