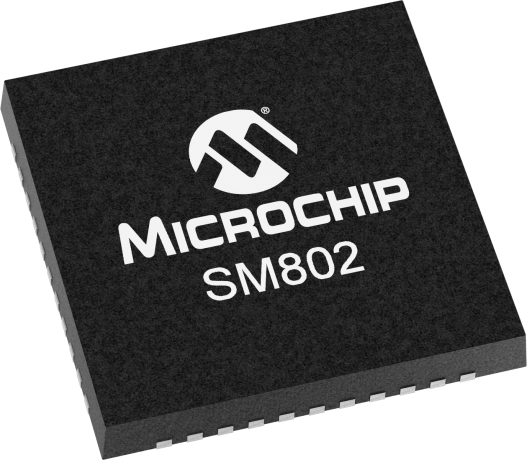

product primary image

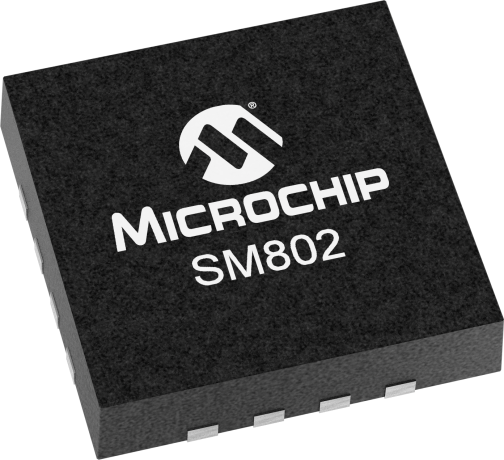

SM802

Low Jitter Clock Generator

Status: Samples Available

Features:

  • 115fs at 156.25MHz (1.875MHz to 20MHz)
  • 245fs at 156.25MHz (12kHz to 20MHz)
  • On chip power supply regulation for excellent board level power supply noise immunity
  • Generates up to 8 combinations of differential or 16 single-ended clock outputs.
  • LVPECL, LVDS, HCSL, LVCMOS (SE or Diff)
  • Selectable input:
  • Crystal: 11MHz to 30MHz
  • Reference input: 11MHz to 80MHz
  • No external crystal oscillator capacitors required
  • 2.5V or 3.3V operating power supply
  • Available in Industrial Temperature range
  • Available in Green, RoHS, and PFOS compliant QFN packages:
  • 44-pin 7mm x 7mm
  • 32-pin 5mm x 5mm
  • 24-pin 4mm x 4mm
  • 16-pin 3mm x 3.5mm
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SM802xxx series is a member of the ClockWorks™ family of devices from Microchip and provide an extremely low-noise timing solution for applications such as (1-100) Gigabit Ethernet, SONET, Wireless base station, Satellite communication, Fibre Channel, SAS/SATA and PCI-e. It is based upon a unique PLL architecture that provides less than 250fs phase jitter.The devices operate from a 2.5V or 3.3V power supply and synthesize up to 8 different combinations (LVPECL, LVDS, HCSL) of differential or 16 single ended output clocks. The devices accept an external reference clock or crystal input.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.



Additional Features
    • 115fs at 156.25MHz (1.875MHz to 20MHz)
    • 245fs at 156.25MHz (12kHz to 20MHz)
    • On chip power supply regulation for excellent board level power supply noise immunity
    • Generates up to 8 combinations of differential or 16 single-ended clock outputs.
      • LVPECL, LVDS, HCSL, LVCMOS (SE or Diff)
    • Selectable input:
    • Crystal: 11MHz to 30MHz
    • Reference input: 11MHz to 80MHz
    • No external crystal oscillator capacitors required
    • 2.5V or 3.3V operating power supply
    • Available in Industrial Temperature range
    • Available in Green, RoHS, and PFOS compliant QFN packages:
      • 44-pin 7mm x 7mm
      • 32-pin 5mm x 5mm
      • 24-pin 4mm x 4mm
      • 16-pin 3mm x 3.5mm
Parametrics
Name
Value
Product Type
Low-Jitter Clock Generators
# of Outputs
8
Voltage
2.5, 3.3
PDB
False
OE
False
FSEL
False
CSEL
False
CLK
False
Output Logic
HSCL
Ultra Low Power
False
Output Frequency Min. (MHz)
11.4
Output Frequency Max. (MHz)
840

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SM802001
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802002
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802003
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802004
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802005
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802006
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802101UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802101UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802104UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802105UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802105UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802108UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802109UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802110UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802111UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802111UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802116UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802116UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802121UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802128UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802128UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802134UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802140UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802140UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802144UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802149UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802158UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802158UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802173UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802181UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802181UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802182UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802185UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802185UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802191UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802191UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802194UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802194UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802204UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802214UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802215UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802220UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802220UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802227UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802227UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802230UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802230UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802231UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802231UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802239UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802251UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802251UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802255UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802265UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802265UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802272UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802272UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802283UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802283UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802285UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802287UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802287UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802312UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802312UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802314UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802319UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802320UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802320UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802352UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802352UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802353UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802353UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802354UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802354UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802355UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802355UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802356UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802356UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802357UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802357UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802358UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802358UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802359UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802359UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802360UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802360UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802361UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802361UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802362UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802362UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802363UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802363UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802364UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802364UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802365UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802365UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802366UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802366UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802368UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802368UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802369UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802369UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802370UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802370UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802371UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802371UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802372UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802372UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802373UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802373UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802374UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802374UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802375UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802375UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802376UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802376UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802377UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802377UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802378UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802378UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802379UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802379UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802380UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802380UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802381UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802381UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802382UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802382UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802383UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802383UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802384UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802384UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802385UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802385UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802386UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802386UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802387UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802387UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802388UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802388UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802393UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802390UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802402UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802399UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802403UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802403UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802391UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802395UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802401UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802394UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802389UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802392UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802397UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802396UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802400UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802398UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802404UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802404UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802405UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802405UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802391UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802395UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802401UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SM802392UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802394UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802389UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802393UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802397UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802390UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802396UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802402UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802400UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802398UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
SM802399UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802406UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802406UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802410UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802410UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802411UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802411UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802412UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802412UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802413UMG
0.024100
0.055474
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802413UMG-TR
0.024100
0.079900
16
VQFN
3.0x3.5x0.9mm
NiPdAu
e4
SM802123UMG
0.118100
0.722685
44
VQFN
7x7x0.9mm
NiPdAu
e4
SM802123UMG-TR
0.118100
0.620478
44
VQFN
7x7x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from Microchip

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
