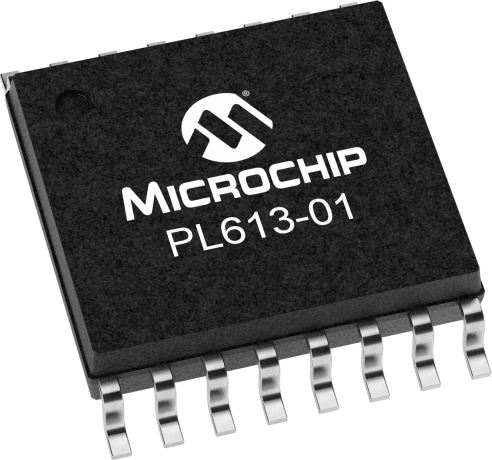

product primary image

PL613-01

Status: In Production

Features:

  • Designed for PCB space savings with 3 low-power Programmable PLLs and up to 8 clock outputs
  • 10µA typical when PDB is activated
  • ≤110MHz @ 1.8V operation
  • ≤166MHz @ 2.5V operation
  • ≤200MHz @ 3.3V operation
  • Fundamental Crystal: 10MHz to 40MHz
  • Reference Input: 10MHz to 200MHz
  • Programmable I/O pins can be configured as Output Enable (OE), Configuration Switching (CSEL), Frequency Switching (FSELX), Power Down (PDB) inputs, or Clock outputs
  • Disabled outputs programmable as HiZ or Active Low
  • Four distinct configurations selectable with CSEL[0:1]
  • Single 1.8V, 2.5V or 3.3V ±10% power supply
  • Temperature range: 0°C to +70°C, -40°C to +85°C
  • Available in GREEN/RoHS compliant 3mm x 3mm QFN or TSSOP packages
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The PL613-01 is an advanced triple PLL design based on PicoPLL™, world’s smallest programmable clock, technology. This advanced technology allows the 8 output PL613-01 to fit in to a small 3mm x 3mm QFN package or TSSOP for high performance, low-power, low-cost applications. Besides its small form factor and 8 outputs that can reduce overall system costs, the PL613-01 offers superior phase noise, jitter and power consumption performance.The power down feature of PL613-01, when activated, allows the IC to consume less than 10µA of power, while its CSEL[0:1] allows switching between up to 4 pre-programmed configurations. The FSELX, on the other hand, allows frequency switching of two outputs (CLK1 & CLK2) on a single clock pin (CLK2).

Additional Features
    • Designed for PCB space savings with 3 low-power Programmable PLLs and up to 8 clock outputs
    • Low-Power Consumption
      • 10µA typical when PDB is activated
    • Output Frequency:
      • ≤110MHz @ 1.8V operation
      • ≤166MHz @ 2.5V operation
      • ≤200MHz @ 3.3V operation
    • Input Frequency:
      • Fundamental Crystal: 10MHz to 40MHz
      • Reference Input: 10MHz to 200MHz
    • Programmable I/O pins can be configured as Output Enable (OE), Configuration Switching (CSEL), Frequency Switching (FSELX), Power Down (PDB) inputs, or Clock outputs
    • Disabled outputs programmable as HiZ or Active Low
    • Four distinct configurations selectable with CSEL[0:1]
    • Single 1.8V, 2.5V or 3.3V ±10% power supply
    • Temperature range: 0°C to +70°C, -40°C to +85°C
    • Available in GREEN/RoHS compliant 3mm x 3mm QFN or TSSOP packages
Parametrics
Name
Value
Product Type
Low Power Clock Generators
PLLs
3
Input Frequency (MHz) Crystal
10-40
Input Frequency (MHz) Reference
10-200
# of Outputs
8
Voltage
1.8 - 3.3
PDB
True
OE
True
FSEL
True
CSEL
False
CLK
True
Output Logic
LVCMOS
Function
Programmable, OE, PDB, FSEL, or CLK2
Ultra Low Power
False
Output Frequency Min. (MHz)
1
Output Frequency Max. (MHz)
200

Documents

Jump to:

Silicon Product

12/11/2015
0B

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL613-01-002
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
PL613-01-001
0.106667
16
WQFN
3x3x0.75mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
