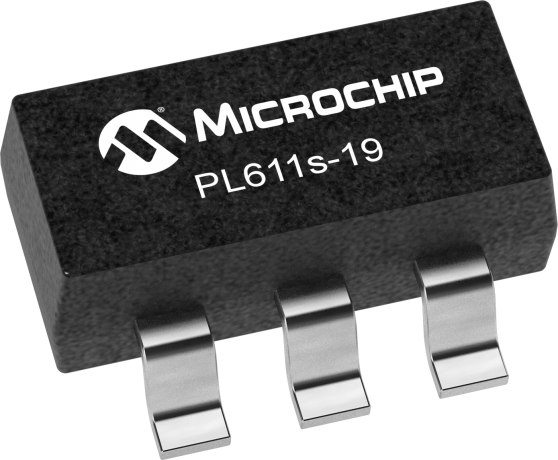

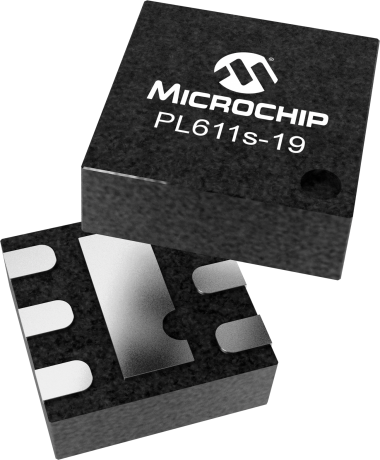

product primary image

PL611s-19

Status: In Production

Features:

  • Designed for Very Low-Power applications
  • Reference input: 1MHz to 125MHz
  • Accepts >0.1V input signal voltage
  • ≤65MHz @ 1.8V operation
  • ≤90MHz @ 2.5V operation
  • ≤125MHz @ 3.3V operation
  • One programmable input pin can be configured as Power Down (PDB) input, output Enable (OE), or Frequency Selection Switching input
  • Disabled outputs Active Low
  • <1.0mA with 27MHz & 32kHz outputs
  • <5µA when PDB is activated
  • Single 1.8V - 3.3V ±10% power supply
  • Operating temperature range from -40°C to +85°C
  • Available in 6-pin DFN, and SOT23 GREEN/RoHS compliant packages
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PL611s-19 is a low-cost general purpose frequency synthesizer and a member of ‘Quick Turn Clock (QTC)’ family. PL611s-19 offers the versatility of using a single reference clock input and producing up to two (kHz or MHz) system clock outputs. Designed for low-power applications with very stringent space requirement, PL611s-19 consumes ~1.0mA, while producing 2 distinct outputs of 27MHz and 32kHz. The power down feature of PL611s-19, when activated, allows the IC to consume less than 5µA of power.The PL611s-19 fits in a small DFN or SOT23 package. Cascading of the PL611s-19 with other programmable clocks allow generating system level clocking requirements, thereby reducing the overall system implementation cost. In addition, one programmable input pin can be configured as Power Down (PDB) input, Output Enable (OE), or Frequency switching (FSEL). The CLK1 output can be programmed as FREF or CLK0.

Additional Features
    • Designed for Very Low-Power applications
    • Input Frequency, AC Coupled:
      • Reference input: 1MHz to 125MHz
      • Accepts >0.1V input signal voltage
    • Output frequency up to 125MHz LVCMOS:
      • ≤65MHz @ 1.8V operation
      • ≤90MHz @ 2.5V operation
      • ≤125MHz @ 3.3V operation
    • One programmable input pin can be configured as Power Down (PDB) input, output Enable (OE), or Frequency Selection Switching input
    • Disabled outputs Active Low
    • Low current consumption:
      • <1.0mA with 27MHz & 32kHz outputs
      • <5µA when PDB is activated
    • Single 1.8V - 3.3V ±10% power supply
    • Operating temperature range from -40°C to +85°C
    • Available in 6-pin DFN, and SOT23 GREEN/RoHS compliant packages
Parametrics
Name
Value
Product Type
Low Power Clock Generators
PLLs
1
Input Frequency (MHz) Reference
1-125
# of Outputs
2
Voltage
1.8 - 3.3
PDB
True
OE
True
FSEL
True
CSEL
False
CLK
True
Output Logic
LVCMOS
Function
Programmable, Ultra Low-Power, Reference Input
Ultra Low Power
True
Output Frequency Min. (MHz)
0.5
Output Frequency Max. (MHz)
125

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL611S-19-002
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL611S-19-001
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
