PL611s-18

Status: In Production

Features:

  • Designed for very low power applications
  • Accepts crystal or reference clock inputs
  • Fundamental crystal: 10MHz to 50MHz
  • Reference input: 1MHz to 125MHz
  • Accepts >0.1V reference signal input voltage
  • 65MHz @ 1.8V operation
  • 90MHz @ 2.5V operation
  • 125MHz @ 3.3V operation
  • One programmable I/O pin can be configured as OE, PDB, FSEL, or CLK1
  • <1.0mA with 27MHz & 32kHz outputs
  • <5µA when PDB is activated
  • Single 1.8V - 3.3V ±10% power supply
  • Operating temperature range from -40°C to +85°C
  • Available in 6-pin DFN, and SOT23 GREEN/RoHS compliant packages
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The PL611s-18-xxx is a general purpose frequency synthesizer and a member of the PicoPLL family, the world’s smallest programmable clocks. PL611s-18-xxx offers the versatility of using a single crystal (MHz) or reference clock input and producing up to two (kHz/MHz) system clocks, or a combination of reference and low frequency outputs. The PL611s-18-xxx is designed for low-power applications with very stringent space requirements and consumes, for example, ~1.0mA while producing two distinct outputs of 27MHz and 32kHz. The power down feature of PL611s-18-xxx, when activated, allows the IC to consume less than 5µA of power.The PL611s-18-xxx fits in a small DFN-6L or SOT23-6L package. Cascading of the PL611s-18-xxx with other programmable clocks allow generating system level clocking requirements, thereby reducing the overall system implementation cost.In addition, one programmable I/O pin can be configured as Output Enable (OE), Frequency switching (FSEL), Power Down (PDB) input, or CLK1 (CLK0, FREF, FREF/2) output.

Additional Features
    • Designed for very low power applications
    • Accepts crystal or reference clock inputs
    • Input frequency:
      • Fundamental crystal: 10MHz to 50MHz
      • Reference input: 1MHz to 125MHz
    • Accepts >0.1V reference signal input voltage
    • Output frequency 0.5kHz to 125MHz CMOS:
      • 65MHz @ 1.8V operation
      • 90MHz @ 2.5V operation
      • 125MHz @ 3.3V operation
    • One programmable I/O pin can be configured as OE, PDB, FSEL, or CLK1
    • Low current consumption:
      • <1.0mA with 27MHz & 32kHz outputs
      • <5µA when PDB is activated
    • Single 1.8V - 3.3V ±10% power supply
    • Operating temperature range from -40°C to +85°C
    • Available in 6-pin DFN, and SOT23 GREEN/RoHS compliant packages
Parametrics
Name
Value
Product Type
Low Power Clock Generators
PLLs
1
Input Frequency (MHz) Crystal
10-50
Input Frequency (MHz) Reference
1-125
# of Outputs
2
Voltage
1.8 - 3.3
PDB
True
OE
True
FSEL
True
CSEL
False
CLK
True
Output Logic
LVCMOS
Function
Programmable, Very low-power
Ultra Low Power
True
Output Frequency Min. (MHz)
0.5
Output Frequency Max. (MHz)
125

Documents

Jump to:

Silicon Product

12/11/2015
0B

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

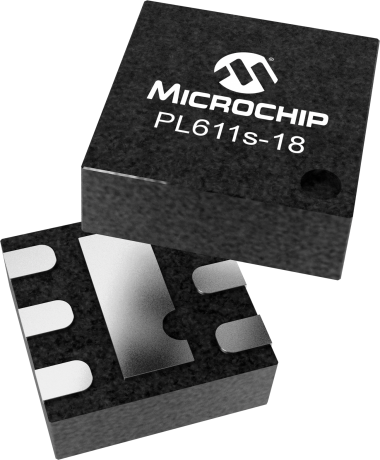

PL611S-18-002
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4

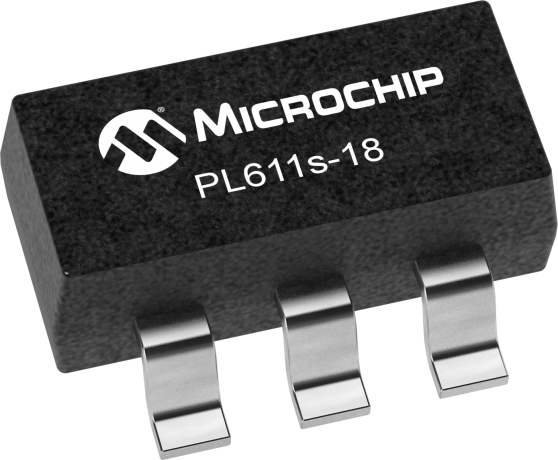

PL611S-18-001
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
