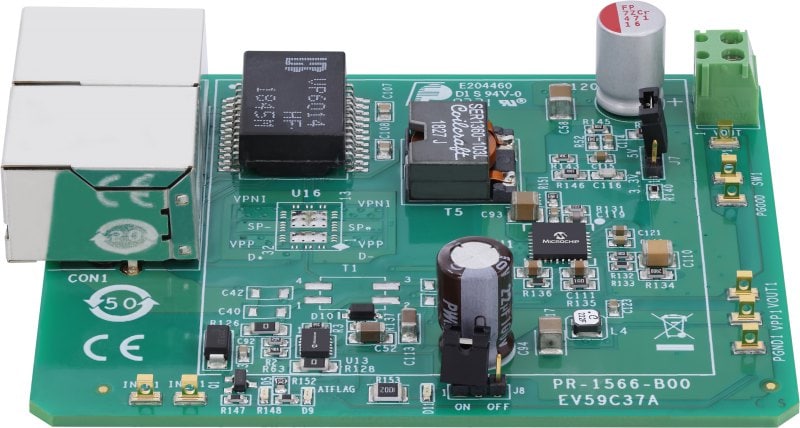

Part Number: EV59C37A
PD PD70200 MIC28514 5V/3.3V 5A BUCK
- Support for data and spare current by a single PD70200 device
- Two RJ45 connectors (Data and Power In, Data Out)
- Output voltage connector
- On-Board Power Good LED indicator
- On-Board AT detected LED indicator
- On-Board MPS LED indicator
- Pulse transformer for routing the data to PD application to enable full PD evaluation
- Evaluation board working temperature: –30 °C to 70 °C (10% per 10 °C load current derating above 50 °C)
- RoHS compliant
Overview
EV59C37A evaluation board provides designers with the environment needed for evaluating the performance and implementation of non-isolated PD applications based on the PD70200 PD Front-End IC and the MIC28514 Buck regulator. The board uses a single PD device, PD70200, to support the detection, classification, and powering phases on the 2/4 pairs of the Cat 5 cable.
DC-DC conversion is implemented with the MIC28514 synchronous buck regulator. The PD70200 supports a standard IEEE® 802.3af and IEEE 802.3at Type 2 interface. The EV59C37A evaluation board supports a 5A load at 5V and 3.3V user-selectable outputs.
