mikroe-3325
mikroe-3325

Part Number: MIKROE-3325

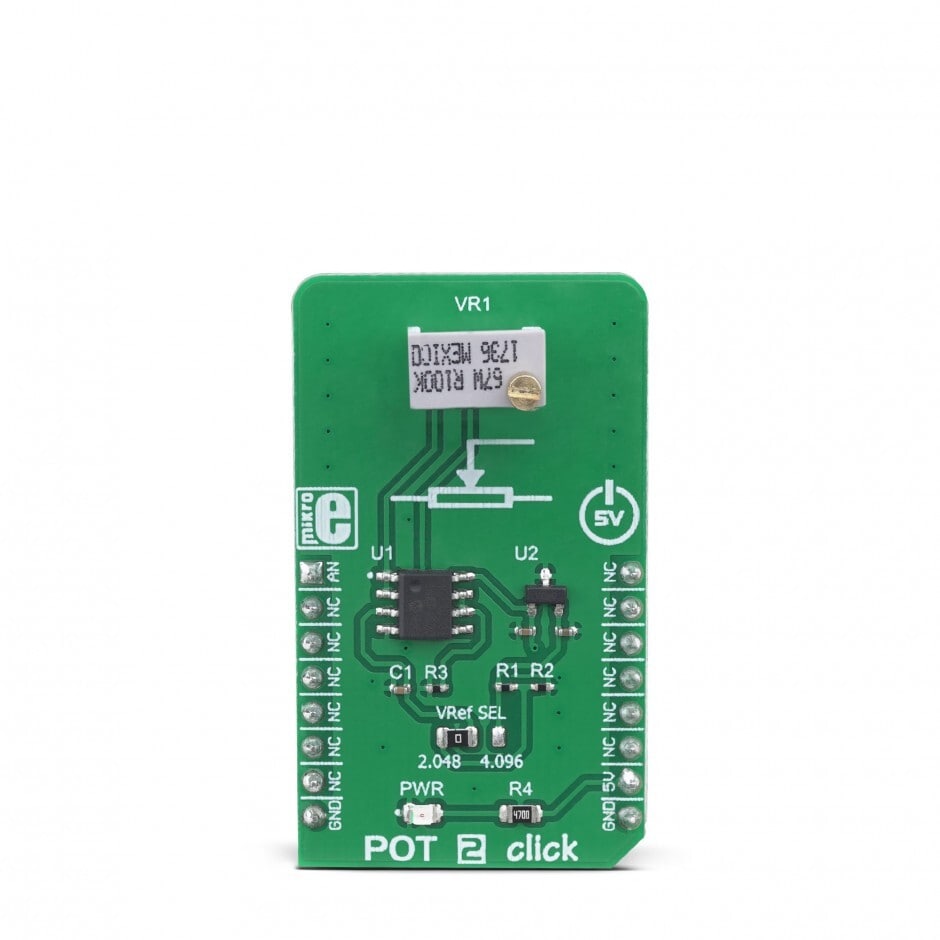

POT 2 Click

Overview

POT 2 click is a Click board™ with the accurate selectable reference voltage output. By utilizing a multi-turn precision potentiometer, this Click board™ can provide very accurate voltage output on the AN pin of the mikroBUS™. POT 2 click is also equipped with the SMD jumper, which allows the maximum reference voltage to be selected between two typically used values: 2.048V or 4.096V. Using a rail-to-rail buffering operational amplifier which provides constant input and output impedance, this Click board™ is an ideal solution when accurately controlled voltage reference is required. POT 2 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Silicon Products

Product
Title
Product
Title
MCP1541 4.096V Voltage Reference MCP1541 4.096V Voltage Reference
MCP6022 Rail-to-Rail Input/Output, 10 MHz Op Amps MCP6022 Rail-to-Rail Input/Output, 10 MHz Op Amps
