Part Number: MIKROE-2227

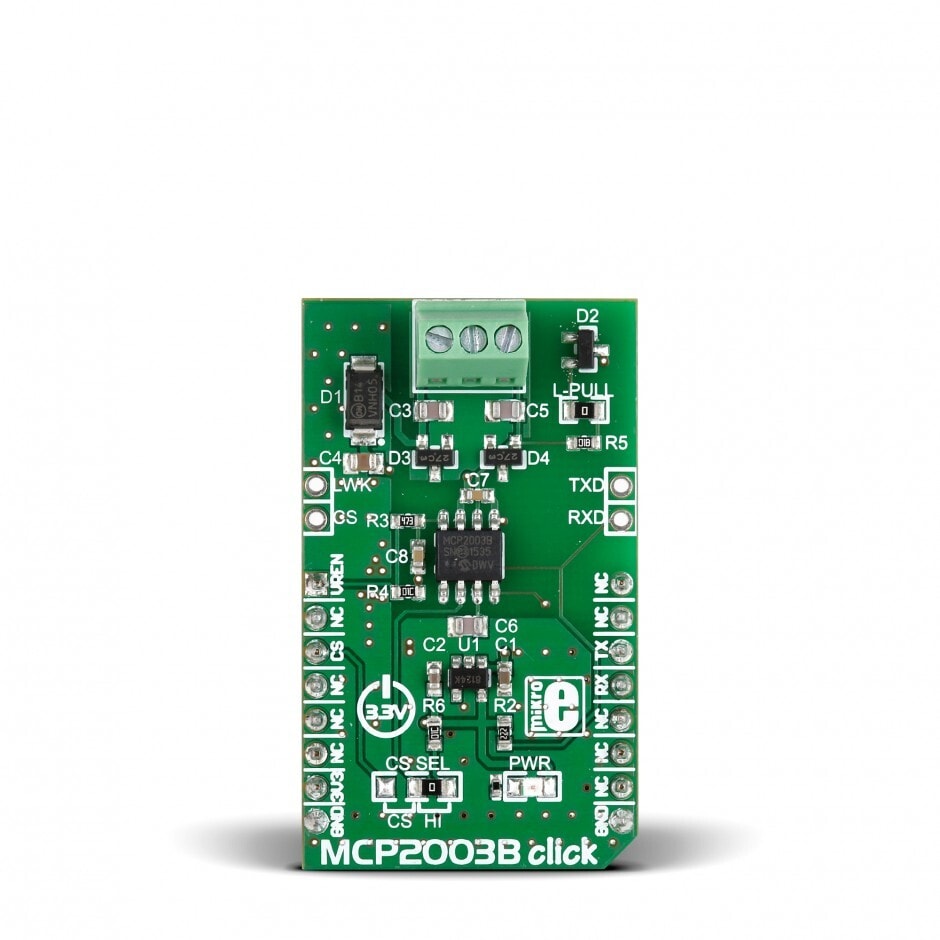

MCP2003B Click

Overview

MCP2003B Click is a compact add-on board with a physical interface to automotive and industrial LIN systems compliant with the LIN Bus Specification Revision 2.2, SAE J2602, and ISO 17987. This board features the MCP2003B, a LIN transceiver from Microchip. The LIN, which stands for a Local Interconnect Network, is used in conjunction with the CAN interface for communication between the components inside of vehicles. The MCP2003B is a bi-directional half-duplex LIN transceiver that supports baud rates up to 20Kbaud with a LIN-compatible output driver. According to the standard on which this LIN transceiver works, connecting up to 15 peripheral devices to a single controller device is possible. This Click board™ makes the perfect solution for the development of sensor networks for vehicles. MCP2003B Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Silicon Products

Product
Title
Product
Title
MCP2003B LIN Transceiver MCP2003B LIN Transceiver
