Part Number: EV68M25A

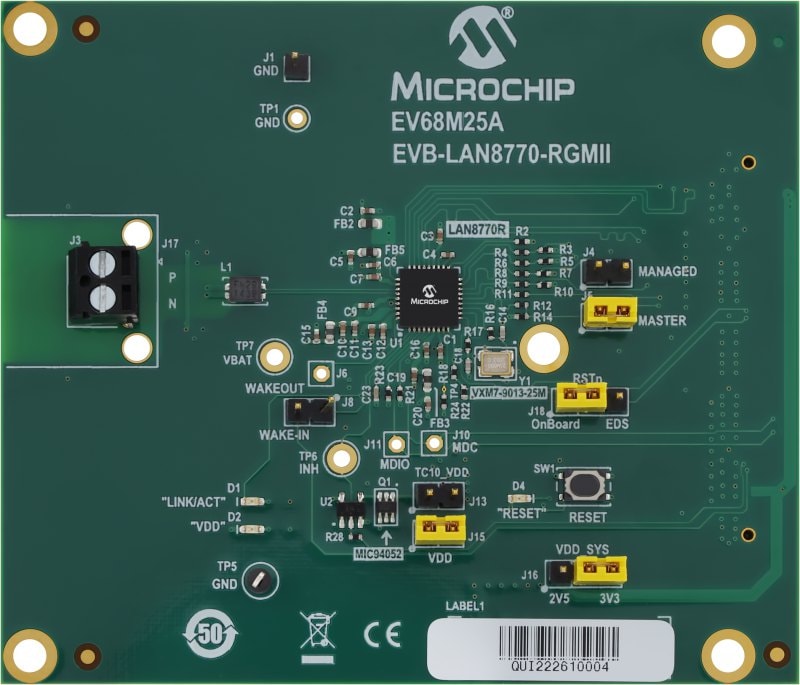

EVB-LAN8770-RGMII

• Xplained Ultra RGMII connector to interface with Ethernet MCU boards.

• 4-pin Molex 34793-0040 connector for 100BASE-T1 physical interface

• Single LED Indicators for speed/link/activity status

View Purchasing Options
Contact Us

Overview

The EVB-LAN8770_RGMII board is a 100BASE-T1 Ethernet PHY plug-in card for the SAMS70/E70/V70/V71 Xplained Ultra board.

System Requirements

SAMS70/E70/V70/V71 Xplained Ultra board

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB-LAN8770 RGMII Evaluation Board User’s Guide Download ae2fee05-ce0e-4e79-8f02-e82eabee353b

Software

Title
Date
LAN8770 Linux Driver and Library Files 01 Jan 1970 Link

Silicon Products

Product
Title
Product
Title
LAN8770 100Base-T1 Ethernet Transceiver LAN8770 100Base-T1 Ethernet Transceiver
