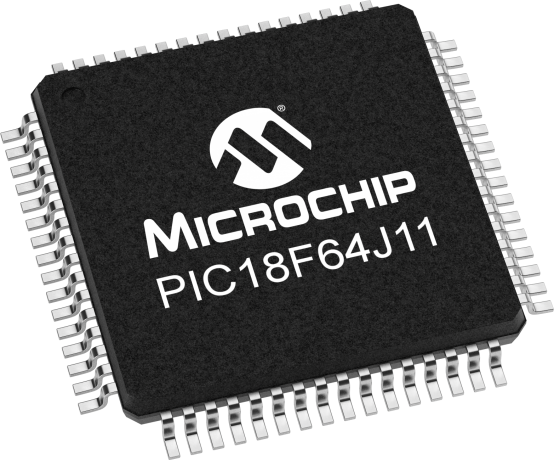

PIC18F64J11

In Production

General Purpose PIC18 J-series Microcontroller providing 10 MIPS performance at 3V with 8MHz internal oscillator and lower sleep power than the 18F87J10 family. These devices are easily adapted for cost sensitive application such as data loggers, control panels, home security, car alarms, and seat controllers.



    Features

        CPU

        • Up to 10 MIPS Performance
        • C compiler optimized RISC architecture
        • 8x8 Single Cycle Hardware Multiply
        • Internal oscillator support-31 kHz to 8MHz
        • Voltage range; 2.0V to 3.6V

        LCD Module

        • An integrated LCD driver module, capable of driving 48 segments and 4 commons for LCD display (132 pixels)
        • Integrated LCD Voltage Boost Regulator

        nanoWatt Power Managed Modes

        • Run, Idle and down to 0.1uA SLEEP modes

        Analog Features

        • 10-bit ADC, 12 channels, 100K samples per second
        • Low Voltage Detection Module
        • Brown-out-Reset Module
        • Two Analog Comparators

        Other Peripherals

        • Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode
        • EUSART module including LIN bus support
        • Four Timer Modules
        • Two CCP
    Parameter Name
    Value
    Program Memory Type
    Flash
    Program Memory (KB)
    16
    CPU Speed (MIPS)
    10
    RAM Bytes
    1,024
    Digital Communication Peripherals
    2-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
    Capture/Compare/PWM Peripherals
    2 CCP,
    Timers
    1 x 8-bit, 3 x 16-bit
    ADC
    12 ch, 10-bit
    Comparators
    2
    Temperature Range (C)
    -40 to 85
    Operating Voltage Range (V)
    2 to 3.6
    Pin Count
    64
    Documentation
    Data Sheets
    02/12/2010
    3294KB
      Errata



    Errata
    10/14/2011
    140KB
    Errata
    03/08/2010
    230KB
      Programming Specifications




    Programming Specification
    12/21/2009
    381KB
      Application Notes



    AppNote
    06/27/2011
    427KB
    AppNote
    08/08/2017
    414KB
    AppNote
    01/05/2017
    439KB
    AppNote
    02/03/2010
    482KB
      Brochures




    Brochures
    07/27/2017
    3378KB
      aspxDesignNotes




    Design Notes
    01/30/2012
    178KB
      Product Selection Tools




    Product Line Card
    07/31/2017
    3479KB
      Sell Sheets




    Sell Sheets
    07/11/2011
    182KB
      Tips and Tricks



    Tips and Tricks
    02/01/2008
    561KB
    Tips and Tricks
    04/22/2009
    5964KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    PIC18F64J11-I/PT
    64
    TQFP
    -40C to +85C
    TRAY
    2.64
    2.42
    2.19
    2.02
    1.92
    PIC18F64J11T-I/PT
    64
    TQFP
    -40C to +85C
    T/R
    2.69
    2.46
    2.23
    2.05
    1.95


    ** Device not available to purchase online. Please contact a sales office for pricing information.
