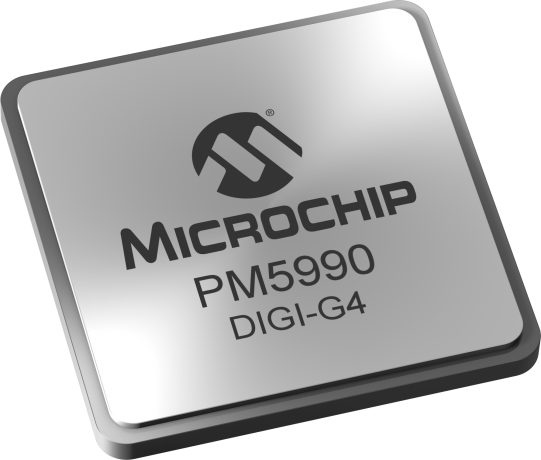

product primary image

PM5990

DIGI-G4 OTN Processor Family

Status: In Production

Features:

  • High-density 400G single-chip line card solution for OTN switching on Packet Optical Transport Platforms (P-OTP)
  • Sub-wavelength Layer 1 OTN encryption solution to secure the cloud
  • 25G granularity flexible OTN framer to DSP
  • High density 10G, 40G and 100G multi-service support, including Ethernet, storage, IP/MPLS and SONET/SDH
  • Transport SDN-ready features, enabling OpenFlow extensions such as network element neighbor discovery
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

DIGI-G4 is Microchip's fourth-generation OTN processing solution for next-generation OTN switching and packet-optical transport (POTP/P-OTN), WDM/ROADM, and hyperscale data center interconnect (DCI) equipment. Building on the innovations in Microchip's DIGI-120G, which is widely deployed in service provider and hyperscale data center WAN networks today, DIGI-G4 is a 4x100G multi-service OTN processor, scaling line card capacity by 4x, while reducing power per port by 50 percent,as compared to previous generation OTN processors. DIGI-G4 addresses the requirements of SDN-ready, encrypted optical transport infrastructure. Reusing Microchip's proven, service provider-qualified DIGI family OTN switching software development kit (SDK), DIGI-G4 can be leveraged across multiple applications and equipment platforms, providing OEMs with the lowest risk, fastest time-to-market and lowest cost of development.

Variants available with OTN encryption (PM5990) and without OTN encryption (PM5991).

Benefits for Service Providers & OEMs
• Lowers CAPEX & OPEX of service provider 100G deployments
   • High-capacity hybrid packet/OTN switching & aggregation maximizes 100G wavelength utilization
   • Universal line card solution simplifies line card inventory management
• Supports hyperscale data center interconnect transport requirements
   • Flexible, low latency, protocol agnostic Layer 1 OTN payload encryption
   • Flexible on-chip OTN switch & Interlaken interconnects enable design of compact, scalable, ‘rack-and-stack’ data center interconnect WAN transport platforms
• Supports transition to transport SDN-based network architectures
   • Flexible hybrid packet/OTN mapping, aggregation & switching enables virtualization of 100G optical infrastructure
   • Hitless, on-demand scaling of optical connections
   • Features to enable OpenFlow extensions such as network element neighbor discovery
• Accelerates time-to-market & lowers development costs for OEMs
   • High-performance, field-proven OTN-SDK built upon the DIGI family code base, allowing OEMs to reuse existing software investments
   • ‘Application-centric’ APIs reduce time-to-market by up to 6 months.
• Optimizes power, footprint and cost of line cards:
   • Integrated 100G gearbox for direct connect to CFP2, CFP4 and QSFP28 transceivers.
   • Connects directly to many off-the-shelf Network Processors & Switch Fabrics
   • Integrated PLLs & GCC processor reduces the need for auxiliary components

Additional Features
  • High-density 400G single-chip line card solution for OTN switching on Packet Optical Transport Platforms (P-OTP)
  • Sub-wavelength Layer 1 OTN encryption solution to secure the cloud
  • 25G granularity flexible OTN framer to DSP
  • High density 10G, 40G and 100G multi-service support, including Ethernet, storage, IP/MPLS and SONET/SDH
  • Transport SDN-ready features, enabling OpenFlow extensions such as network element neighbor discovery
Parametrics
Name
Value
Max Bandwidth (Gbps)
800
Line Rates
OTU2/OTU3/OTU4
Client Interfaces
GbE/FC/SDH/SONET/OTUk
Max SERDES Rates (Gbps)
28
ODUk Switching
Yes (ODU0+)
System Interfaces
Interlaken
OTN Encyption
Yes
RoHS
Yes
Description
DIGI-G4 OTN Processor Family

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PM5990B-FEI
34.11480
44.25000
1932
BBGA
45x45x4.00mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
