Switchtec™ PCIe® Switches
High-Density, High-Reliability PCI Express® (PCIe®) Switches
Switchtec PFX/PSX Gen 6 Fanout PCIe Switch Family
The Switchtec PFX Gen 6 fanout PCIe switch family comprises high-reliability PCIe switches supporting up to 160 lanes, 20 ports and 10 stacks, hot- and surprise-plug controllers for each port, advanced error containment and comprehensive diagnostics and debug capabilities, a wide breadth of I/O interfaces and an integrated MIPS® processor. Bufurication at x8 and x16.
Switchtec PSX Programmable PCIe Switches
PSX Gen 5 Fanout PCIe Switch Family
The Switchtec PSX Gen 5 fanout PCIe switch family comprises high-reliability PCIe switches supporting up to 100 lanes, 52 ports, 26 virtual switch partitions, 48 Non-Transparent Bridges (NTBs), hot- and surprise-plug controllers for each port, advanced error containment and comprehensive diagnostics and debug capabilities, a wide breadth of I/O interfaces and an integrated MIPS processor.
PSX Gen 4 Programmable PCIe Switch Family
The Switchtec PSX Gen 4 programmable PCIe switch family comprises programmable and high-reliability switches that support up to 100 lanes, 52 ports, 26 virtual switch partitions, 48 NTBs, hot- and surprise-plug controllers for each port, advanced error containment, comprehensive diagnostics and debug capabilities, a wide breadth of I/O interfaces and an integrated MIPS processor.
PSX Gen 3 Programmable PCIe Switch Family
The Switchtec PSX Gen 3 programmable PCIe switch family comprises programmable and high-reliability PCIe Base Specification 3.1-compliant switches supporting up to 96 lanes, 48 ports, 24 virtual switch partitions, 48 NTBs and hot- and surprise-plug controllers for each port.

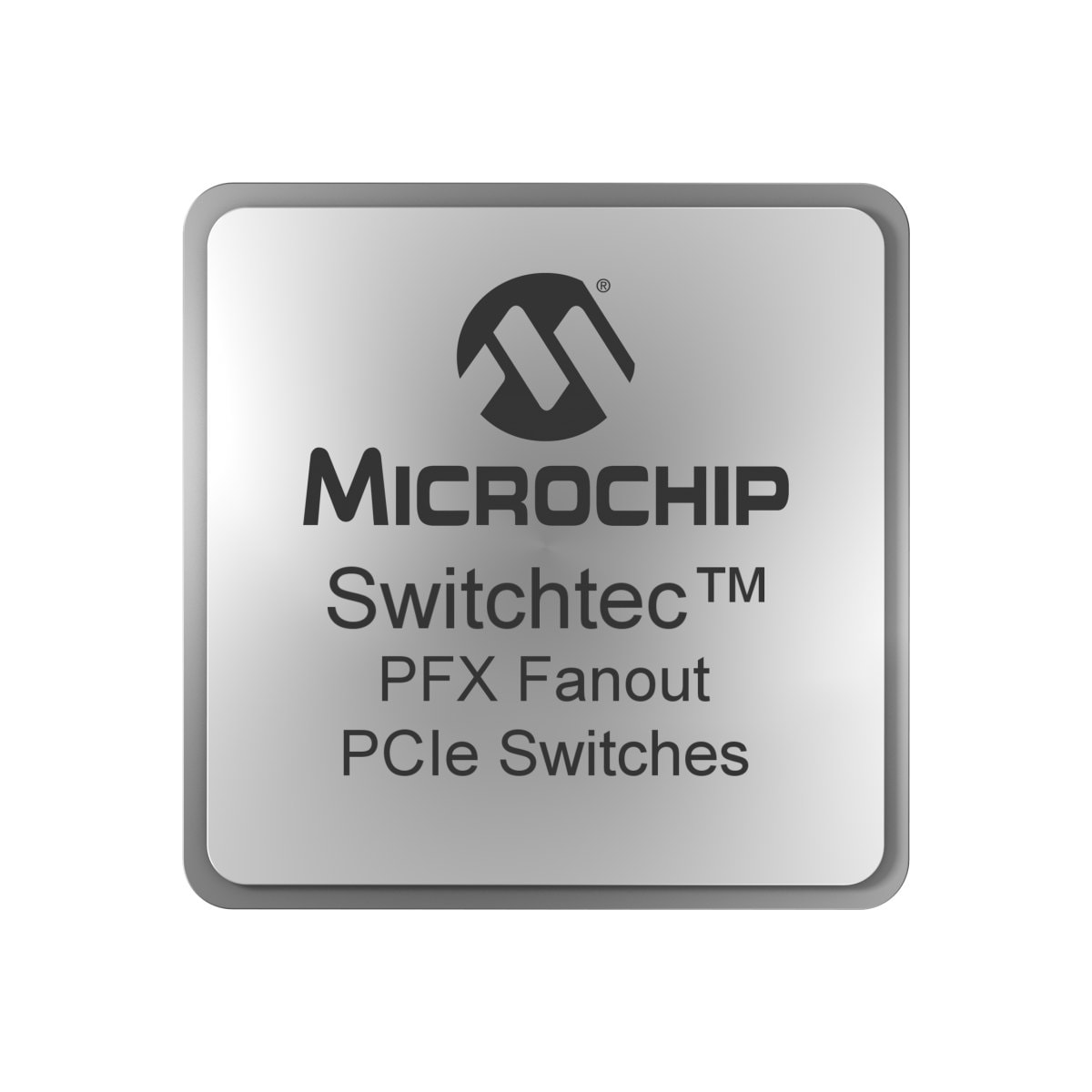

Switchtec PFX Fanout PCIe Switches
PFX Gen 5 Fanout PCIe Switch Family
The Switchtec PFX Gen 5 fanout PCIe switch family comprises high-reliability PCIe switches supporting up to 100 lanes, 52 ports, 26 virtual switch partitions, 48 NTBs, hot- and surprise-plug controllers for each port, advanced error containment and comprehensive diagnostics and debug capabilities, a wide breadth of I/O interfaces and an integrated MIPS processor.
PFX Gen 4 Fanout PCIe Switch Family
The Switchtec PFX Gen 4 fanout PCIe switch family comprises high-reliability PCIe switches supporting up to 100 lanes, 52 ports, 26 virtual switch partitions, 48 NTBs, hot- and surprise-plug controllers for each port, advanced error containment and comprehensive diagnostics and debug capabilities, a wide breadth of I/O interfaces and an integrated MIPS processor.
PFX/PFX-I Gen 3 Fanout PCIe Switch Families
The Switchtec PFX/PFX-I PCIe Gen 3 fanout switch families comprise high reliability PCIe Base Specification 3.1-compliant switches supporting up to 96 lanes, 24 virtual switch partitions, 48 NTBs, hot- and surprise-plug controllers for each port, advanced error containment and comprehensive diagnostics and debug capabilities.
Switchtec Gen 5 PCIe Switch Reference Validation Board
Our Switchtec Gen 5 PCIe switch reference validation board allows you to evaluate the functionality of Switchtec Gen 5 PCIe switches and their interaction with the CPU root complex and endpoints in your design.
- Turnkey reference design and development kit
- Fully tested and validated for quick time to market with reduced risk
- Switchtec switch designs include full access to ChipLink Diagnostics Tool for configuration, functional debug and signal integrity analysis
- Expert technical support
The ChipLink Advanced Tool Platform
ChipLink is an intuitive, Java-based, cross-platform Graphical User Interface (GUI) that allows you to monitor, configure and diagnose our data center products with immediate visual feedback, deploys a consistent toolset and offers many other advanced features which accelerate overall time-to-market for your design. Watch this video to learn more.
