Our in-house CoaXPress FPGA solution for PolarFire® and PolarFire SoC FPGAs enables ultra-reliable, multi-Gigabit video and control over a single coaxial cable and is purpose-built for demanding embedded vision systems. With integrated device and host IP, internal equalization and long-reach cable support, it is an excellent choice for machine vision applications such as inspection, metrology and high-speed imaging. In medical endoscopes, CoaXPress delivers low-latency, high-resolution video with deterministic control and power over coax in compact, EMI-sensitive designs. For robotics, the solution supports synchronized, high-bandwidth vision streams essential for real-time perception, guidance and factory automation.
FPGAs for Smart Robotics
FPGAs for Medical Imaging
FPGAs for Automotive
- CoaXPress-to-HDMI Video Transport
- SLVS-EC-to-CoaXPress Video Transport

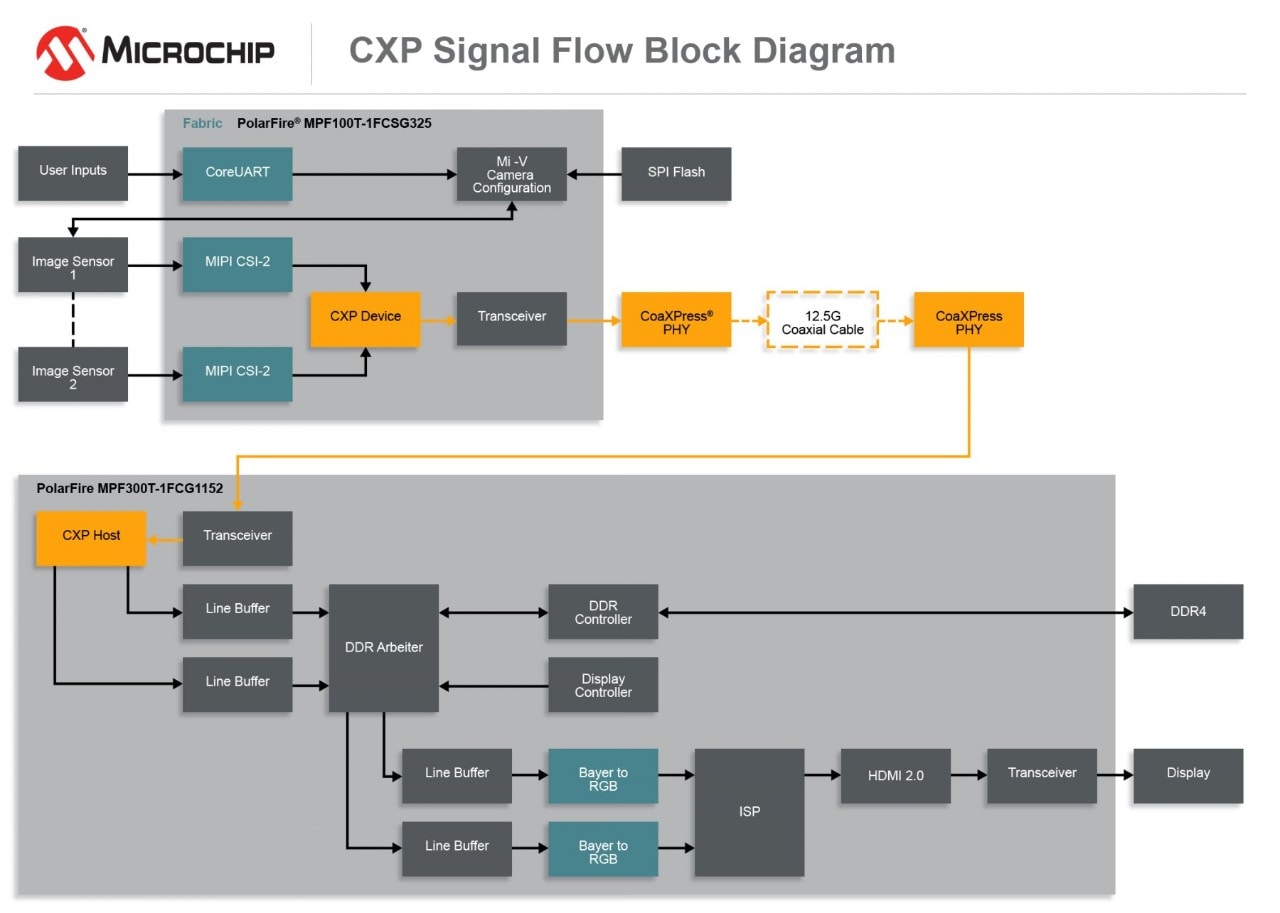

CoaXPress-to-HDMI Video Transport
- Capture and control: Image sensors connect via MIPI® CSI-2®, with camera configuration handled through GenICam
- Transport: Video and control data stream over CoaXPress links (up to 12.5 Gbps per connection)
- Process: PolarFire® FPGA performs CFA-to-RGB conversion and ISP image enhancement
- Display: Processed 4K video is output in real time over HDMI 2.0

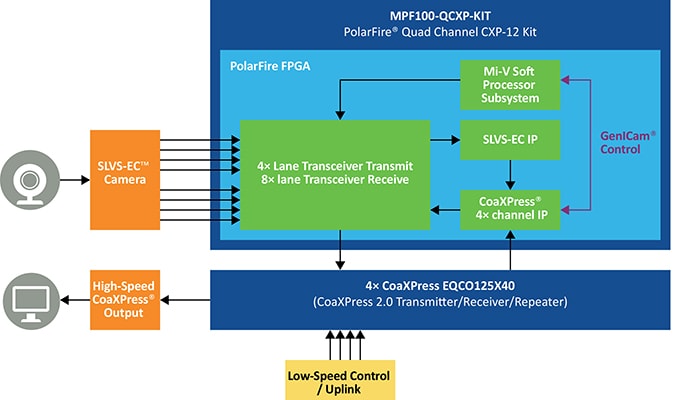

SLVS-EC-to-CoaXPress Video Transport
- Platform and capture: Uses the PolarFire quad-channel CXP-12 kit with an SLVS-EC camera FMC and frame grabber to capture high-resolution, high-frame-rate video
- High-speed transport: Streams video in real time over a 4-channel CoaXPress link, delivering high bandwidth with low latency
- Design implementation: Fully implemented and integrated using Libero® SoC Design Suite
- Camera control: Leverages GenICam with XML-based feature description for standardized camera configuration and seamless frame-grabber interoperability
SLVS-EC FMC Daughter Card
This FMC daughter card is a dedicated platform for evaluating and testing the SLVS-EC receiver IP with PolarFire FPGAs.
MIPI Tx FMC
The MIPI Tx FMC Daughter Card is a platform to implement high-performance video transmission using the MIPI CSI-2 standard and PolarFire FPGAs.
PolarFire Video Kit
Evaluate 4K image processing and rendering using dual camera sensors, numerous display interfaces and popular imaging and video protocols including MIPI CSI-2 TX, MIPI CSI-2 RX, HDMI 1.4 TX, HDMI 2.0, DSI and HD/3G SDI.
Support

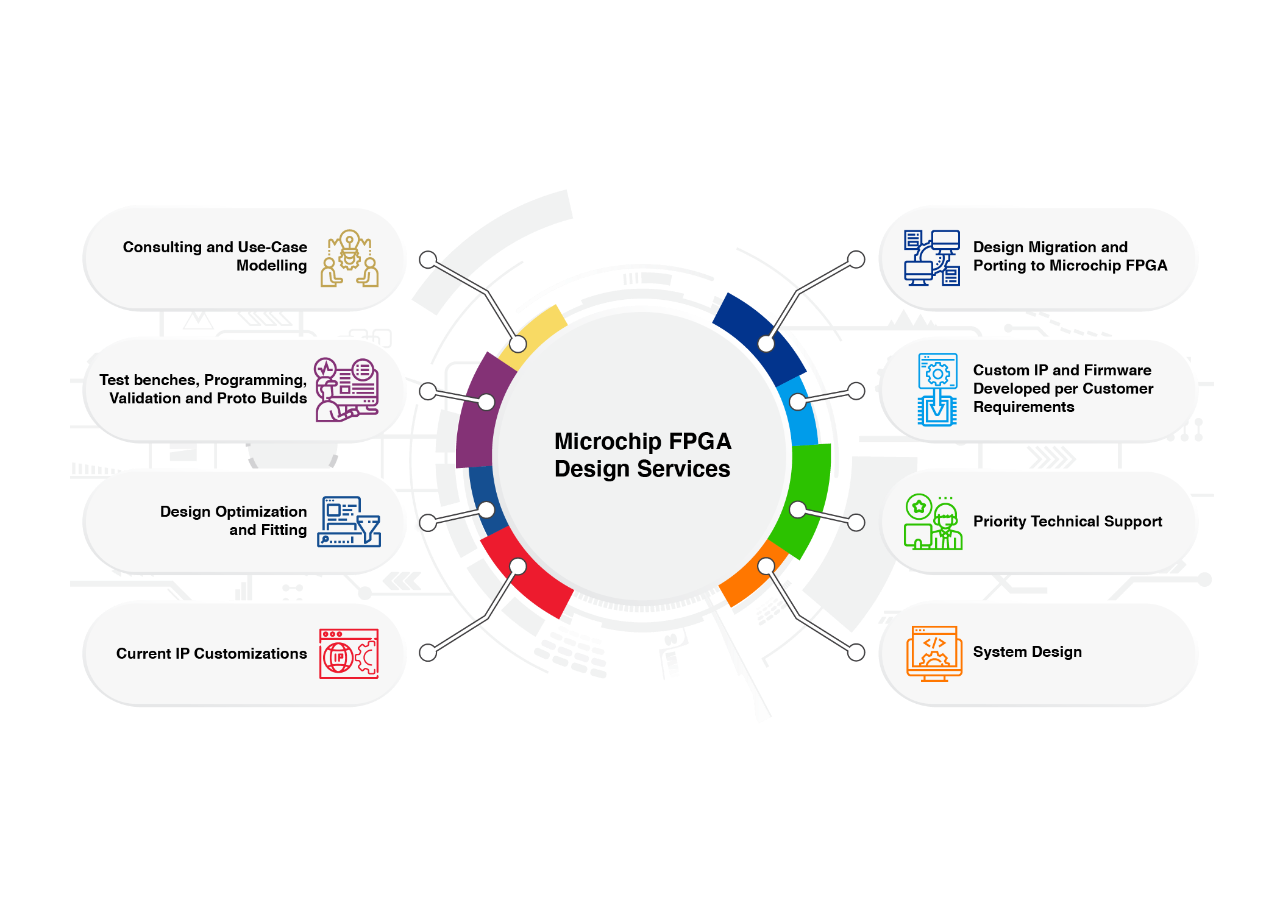

FPGA Design Services
