MIPI CSI-2® Receiver

MIPI CSI-2® is a high-speed camera interface that connects image sensors to a host processor, using short packets for sync and long packets for pixel data. Built on a D-PHY, it supports embedded data and high-speed mode to enable 4K resolutions on the PolarFire® family.

FPGAs for Smart Robotics

FPGAs for Medical Imaging

FPGAs for Automotive

Supported Families and IP Licensing Requirements

FeaturesMIPI CSI-2 RxMIPI CSI-2 Tx
Supported Families

PolarFire® FPGAs and PolarFire SoC FPGAs

PolarFire® FPGAs and PolarFire SoC FPGAs

Licensing Requirements

Free to use: The encrypted IP and Libero® Silver licenses are available at no cost.

Click here to learn about Libero licensing.

Free to use: The encrypted IP and Libero® Silver licenses are available at no cost.

Click here to learn about Libero licensing.

RTLContact UsContact us
Key IP FeaturesLearn More about MIPI CSI-2 Rx IP
Learn More about MIPI CSI-2 Tx IP

Evaluation Options

Summary

Evaluation Options

Kits Required

Short Description

Additional Requirements

Supported Families

MIPI CSI-2 Receiver to HDMI Transmitter with picture-in-picture

MPF300-VIDEO-KIT-NS

Using a dual-camera MIPI module and an HDMI display, this MPFS250TS-based design delivers a full imaging pipeline, from MIPI capture to HDMI output with real-time processing and enhancements.

HDMI monitor

PolarFire FPGA

PolarFire SoC FPGA

MIPI CSI-2 Receiver to CoaXPress 2.0 Transmitter to HDMI

VIDEO-DC-CXP +
MPF300-VIDEO-KIT-NS

CCoaXPress (CXP) communication compliant with CXP 1.0/1.1/2.0 uses Generic Interface for Cameras (GenICam) to provide a unified API and GUI for camera feature control, defined through a standard XML description.

HDMI monitor

PolarFire FPGA and

PolarFire SoC FPGA

MIPI CSI-2 Receiver to DisplayPort Transmitter VIDEO-DC-DP +
MPF300-VIDEO-KIT-NS		The demo takes MIPI input from a dual-camera sensor module and streams it over DisplayPort Tx using the PolarFire Video Kit, showcasing its use in advanced embedded vision.DisplayPort monitor

PolarFire FPGA and

PolarFire SoC FPGA

MIPI CSI-2 Receiver to MIPI CSI-2 TransmitterVIDEO-DC-MIPITX +
MPF300-VIDEO-KIT-NS		MIPI CSI-2 video on the PolarFire Video and Imaging Kit and receives it on a Raspberry Pi® 4 over MIPI CSI-2 TransmitRaspberry Pi

PolarFire FPGA and

PolarFire SoC FPGA

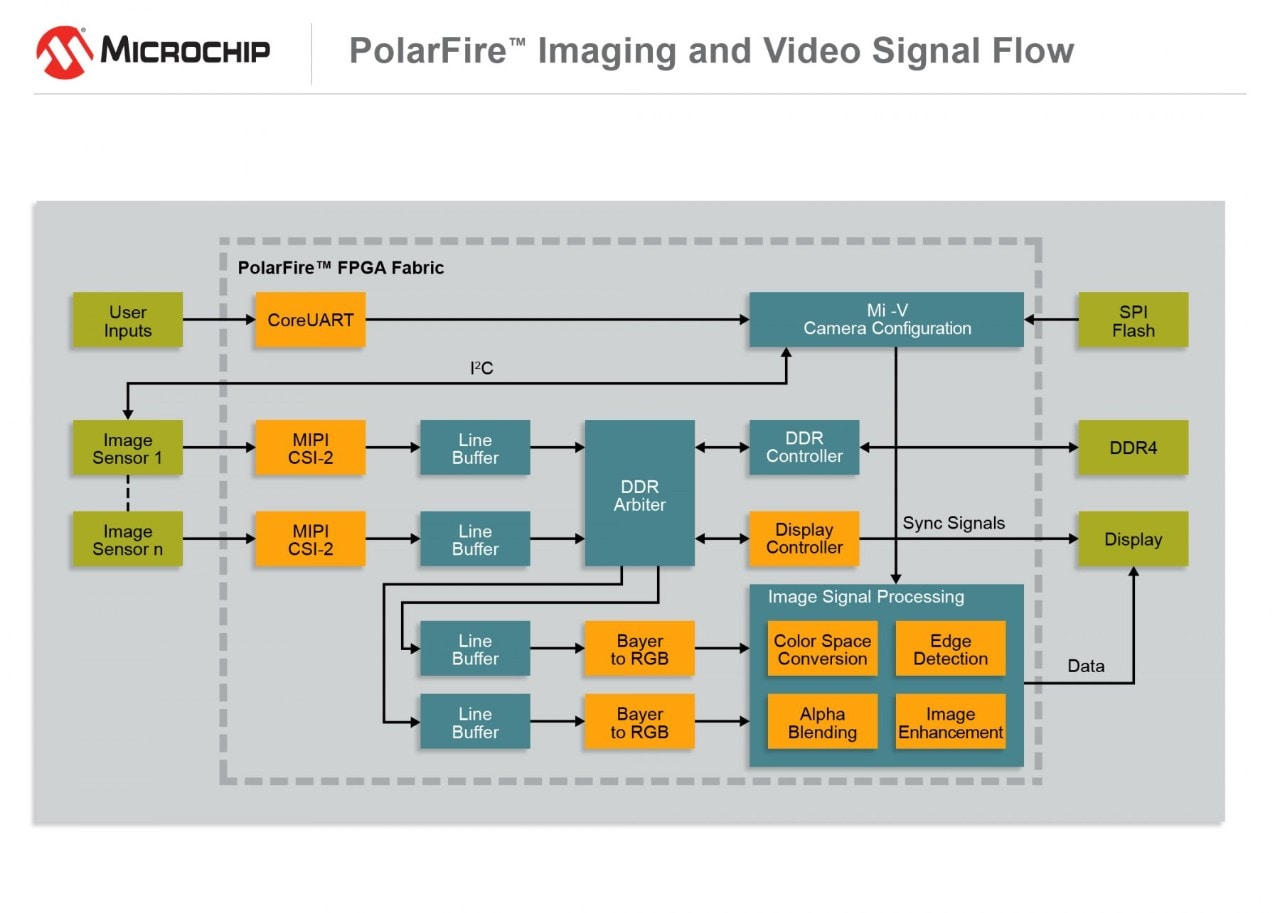

MIPI CSI-2 Receiver to HDMI Transmitter with picture-in-picture on PolarFire FPGA

  • MIPI CSI-2 RX for Full HD dual-camera input
  • Color Filter Array to RGB conversion
  • Picture-in-Picture (PIP)
  • Full HD output via HDMI 2.0 Transmitter (Tx)
  • Edge detection, histogram
  • Image enhancements (contrast, brightness, color balance and gamma)
MIPI CSI-2 Rx IP
MIPI CSI-2 Rx Application Note
HDMI Tx IP
HDMI Tx Application Note
PolarFire Video Kit

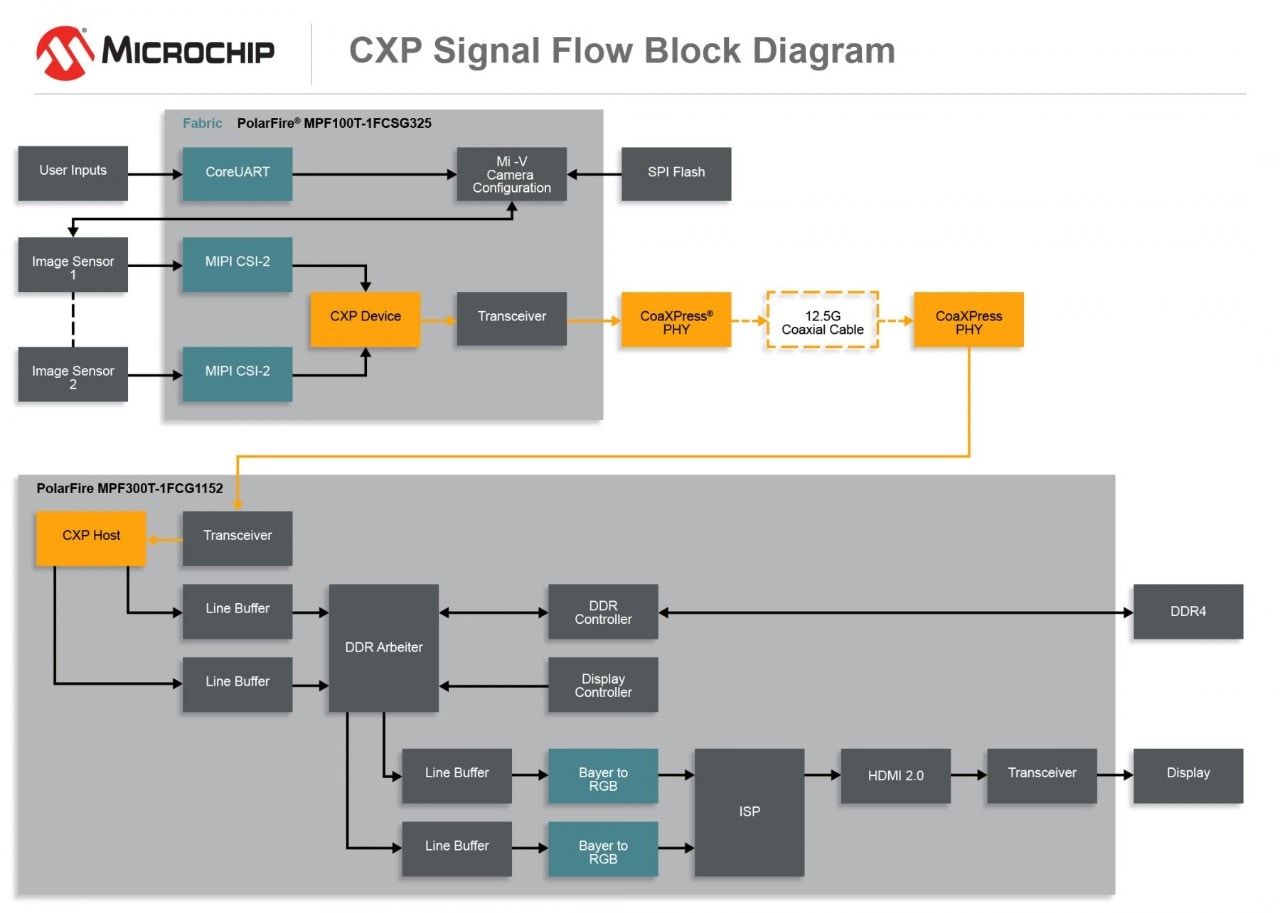

MIPI CSI-2 Receiver to CoaXPress 2.0 Transmitter to HDMI on PolarFire FPGA

  • CoaXPress communication compliant with CXP 1.0/1.1/2.0
  • 4K input over MIPI CSI-2 and HDMI 2.0 output
  • GenICam-based camera control
  • CFA-to-RGB conversion
  • Image enhancement via ISP
MIPI CSI-2 Rx IP
MIPI CSI-2 Rx Application Note
CoaXPress 2.0 IP
CoaXPress 2.0 Application Note
PolarFire Video Kit
CoaXPress FMC

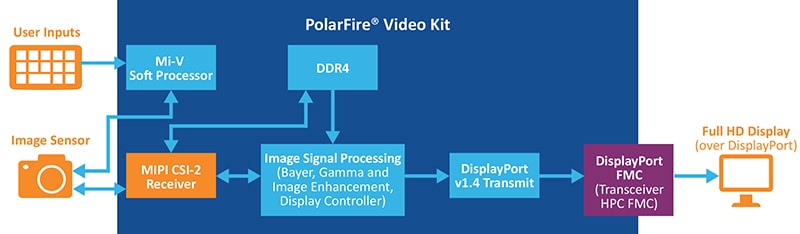

MIPI CSI-2 Receiver to DisplayPort Transmitter on PolarFire FPGA

  • Implements DisplayPort Tx on PolarFire FPGAs, compliant with VESA DisplayPort 1.4
  • Supports data rates from 1.62–8.1 Gbps for diverse display applications
  • Uses the PolarFire FPGA Video Kit with a dual-camera MIPI input to stream video over DisplayPort Tx
  • Built in Libero SoC for fast prototyping and evaluation
MIPI CSI-2 Rx IP
MIPI CSI-2 Rx Application Note
DisplayPort Tx IP
DisplayPort Tx Application Note
PolarFire Video Kit
DisplayPort FMC

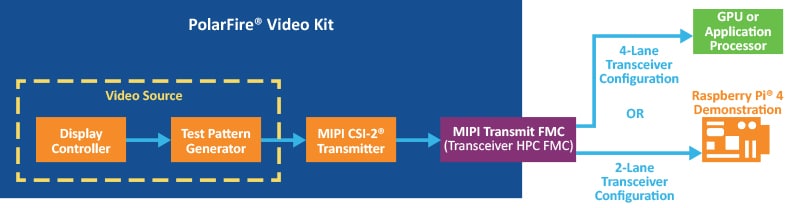

MIPI CSI-2 Receiver to MIPI CSI-2 Transmitter on PolarFire FPGA

  • Generates MIPI CSI-2 video on the PolarFire FPGA Video and Imaging Kit with the MIPI TX FMC
  • Supports two-lane Full HD RAW8 @ 30 fps
  • Supports four-lane 4K RAW8 @ 120 fps
  • MIPI CSI-2 TX IP in two-byte mode with a transceiver interface
  • Enables 2.5-Gbps-per-lane high-speed transmission
MIPI CSI-2 Rx IP
MIPI CSI-2 Rx Application Note
MIPI CSI-2 Tx IP
MIPI CSI-2 Tx Application Note
PolarFire Video Kit
MIPI Transmit FMC
PolarFire SoC Video Kit

CoaXPress FMC Daughter Card

This FMC daughter card is a hardware evaluation platform for evaluating and testing the 12.5 Gbps CoaXPress protocol.



DisplayPort FMC

The DisplayPort daughter card is a platform used to implement high-performance video transmission using the DisplayPort standard and our PolarFire® FPGAs.

MIPI Tx FMC

The MIPI Tx FMC Daughter Card is a platform to implement high-performance video transmission using the MIPI CSI-2 standard and PolarFire FPGAs.

PolarFire Video Kit

Evaluate 4K image processing and rendering using dual camera sensors, numerous display interfaces and popular imaging and video protocols including MIPI CSI-2 TX, MIPI CSI-2 RX, HDMI 1.4 TX, HDMI 2.0, DSI and HD/3G SDI.

Support

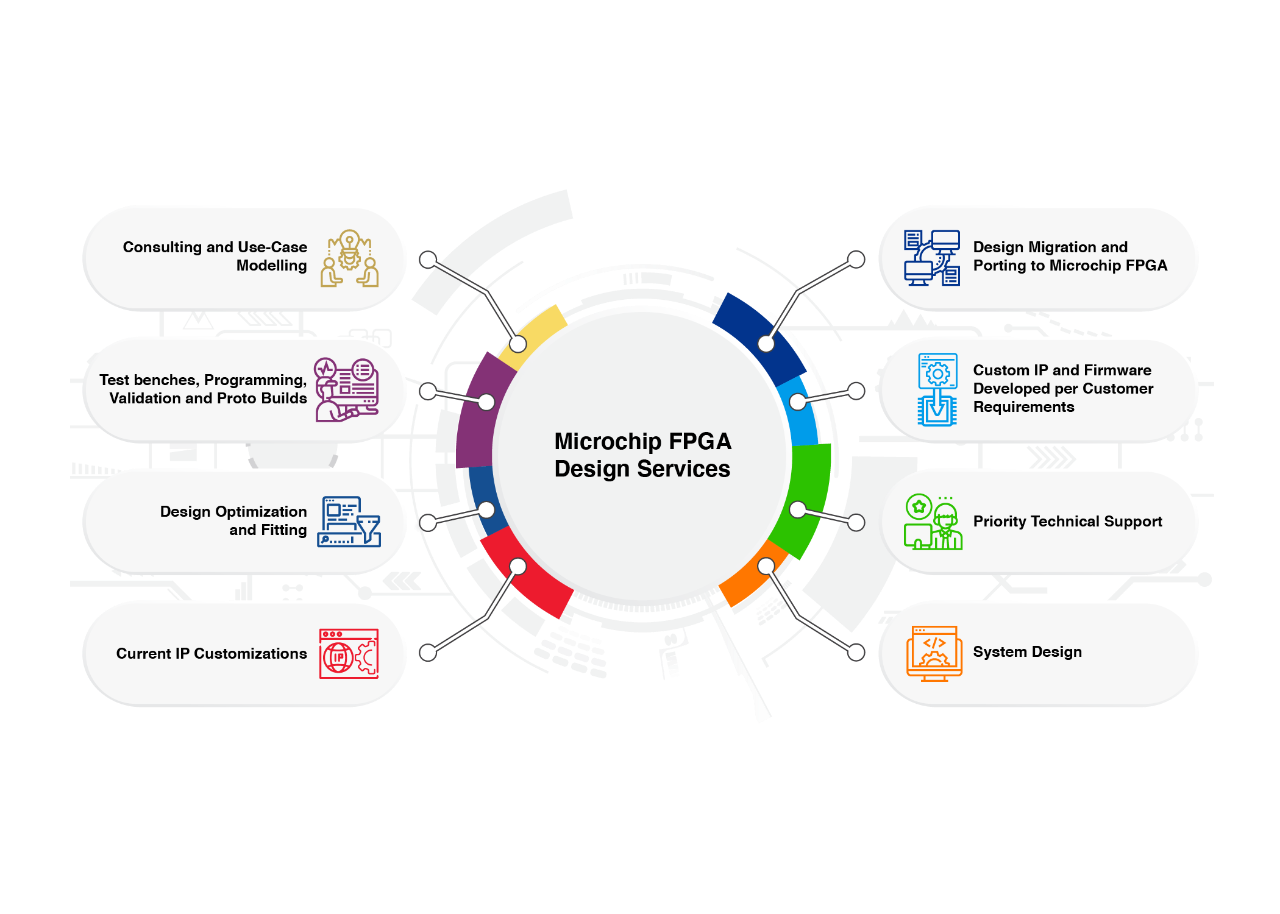

FPGA Design Services
