PIC16F18346 Product Family

Peripheral Integration to Enable Functions

The PIC16F18346 products feature a high level of core independent peripherals that can be combined to perform a wide variety of functions without the core. The integration of peripherals brings a new level of interconnection that enables unsurpassed flexibility in creating functions for a wide range of applications, including consumer electronics, Internet of Things (IoT) and wearable technology applications. These products also include new power-conserving functionality, including Idle/Doze operating modes and Peripheral Module Disable (PMD), in addition to eXtreme Low Power (XLP) technology.

Getting Started

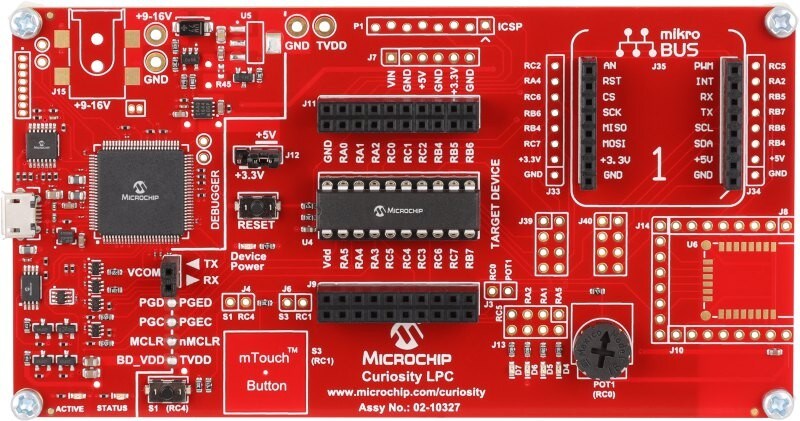

The Curiosity Development Board (DM164137) supports the PIC16F18346 product family. Curiosity Development Boards are cost-effective, fully-integrated MCU development platforms. The development board includes an integrated programmer/debugger and requires no additional hardware to get started.

The PIC16F18346 product family is also supported by MPLAB® Code Configurator (MCC), a free software plug-in that provides a graphical interface to configure peripherals and functions specific to your application.  MCC is incorporated into our award-winning Integrated Development Environments (IDEs), the downloadable MPLAB X IDE and the cloud-based MPLAB Xpress IDE. Additionally, several Xpress code examples are available to help designers start development immediately.

Order Now
Get Started Now

Easy Complementary Output Generation

Any of the 10-bit Pulse Width Modulations (PWMs) or Capture/Compare/PWMs (CCP) can be combined with the Complementary Waveform Generator (CWG) which enables automated complementary output control with control of dead-band and auto-shutdown modes. Once configured, the complementary outputs run completely independent of the core, allowing the core to perform other tasks.

Learn More

Intelligent Analog

The onboard 10-bit ADC, 5-bit DAC, internal voltage references and comparators can be connected internally to create closed-loop feedback without requiring pins or PCB space or can be used for other functions within the applications. The versatile 10-bit ADC can be used to implement buttons or sliders using Microchip's mTouch® Capacitive Sensing solution.

Increased Low-Power Functionality

New Idle and Doze low-power modes allow applications to optimize device performance and power consumption. The Peripheral Module Disable (PMD) allows unused peripherals to be turned off individually, further lowering power consumption

Flexible PCB Routing

The Peripheral Pin Select (PPS) functionality allows for I/O pin remapping of the digital peripherals for increased flexibility and ease of PCB layout and improved utilization by accessing multiple peripherals on the same I/O port.

Communicate With Others

These products include SPI, I2C and EUSART peripherals, which enable a wide range of communication protocols. This allows for intelligent applications where communication with a host or master device is required.

PIC16F18346 Key Attributes

  • 32 MHz internal oscillator
  • Up to 14 KB self-write program Flash memory
  • Up to 1 KB RAM
  • 256B of EEPROM data Flash memory
  • Two 10-bit PWMs
  • Up to four capture-compare PWMs (CCP)
  • Up to two comparators
  • 10-bit ADC, up to 17 channels
  • Numerically Controlled Oscillator
  • Data-signal modulator
  • Up to four Configurable Logic Cells (CLCs)
  • 5-bit DAC
  • Up to two Complementary Waveform Generators (CWGs)
  • Up to two SPI/I2C
  • EUSART
  • Temperature indicator
  • mTouch® capacitive sensing
  • Peripheral Pin Select
  • Available in 8, 14 and 20 pins

Building Blocks for Real-Time Control

10-bit PWM

The 10-bit PWM provides edge-aligned output which can be used with the Complementary Waveform Generator.

Complementary Waveform Generator (CWG)

Complementary Waveform Generator provides a complementary waveform with rising and falling edge dead band control, enabling high-efficiency synchronous switching with no processor overhead. The CWG also incorporates auto shutdown, auto restart and can interface directly with other peripherals/external inputs.

More Information

Peripheral Pin Select (PPS)

Peripheral Pin Select provides ultimate flexibility when routing digital signals to device pins. With PPS, any digital peripheral can be connected to any I/O pin on-the-fly for a customized layout. This allows users to maintain layout compatibility with older PIC® MCUs, even as new features are implemented.

More Information

Power Conserving Functionality

IDLE and DOZE low-power modes allow applications to optimize device performance and power consumption. The Peripheral Module Disable (PMD) allows unused peripherals to be turned off individually, further reducing power consumption. The device features the industry-leading eXtreme Lower Power (XLP) technology.

Capture Compare PWM (CCP)

The Capture Compare PWM provides 16-bit signal capture and compare, as well as 10-bit PWM output functionality.

Closed Loop Control (CLC)

With the additional 10-bit ADC, 5-bit DAC and Comparator, control loops for closed loop feedback control can be created or used for other functions within the application. Using Microchip's mTouch Capacitive Sensing solution, the 10-bit ADC can be used to create buttons or sliders.

PIC16F18346 Product Family

View All Parametrics
Product Status 5K Pricing CPU Type Architecture Family Program Memory Size (KB) Program Memory Size (KWords) Bootload capable SRAM (Bytes) Emulated EEPROM in Flash DMA Channels Max I/O Pins Pin count Max CPU Speed (MHz) ADC with Enhanced Features Peripheral Pin Select / Pin Muxing Vbat/Vddbu battery backup Brown-Out Reset Low Voltage Detection Power On Reset Internal Oscillator Hardware RTCC/RTC Watch Dog Timer Windowed Watch Dog Timer (WWDT) Number of Comparators Number of Op Amps Number of ADCs ADC Input Max ADC Resolution (Bits) Max ADC Sampling Rate (ksps) ADC with Computation Number of DACs DAC Outputs Max DAC Resolution (Bits) Internal Voltage Reference (Bandgap) Zero Cross detect Slope Compensation / Programmable Ramp Generator Data Signal Modulator CTMU Max 8-Bit Digital Timers Max 16-Bit Digital Timers Signal Measurement Timer Hardware Limit Timer Stand alone PWMs Capture / Compare/PWM (CCP) Enhanced Capture/Compare/PWM (ECCP) Max PWM outputs (including complementary) Number of PWM Time Bases PWM Max Resolution (Bits) Quadrature Encoder Interface Angular Timer Math Accelerator UART SPI I2C Number of USB Modules USB Interface USB Active Clock Tuning Number of CAN Modules CAN Transmit Buffers CAN Receive Buffers Ethernet LIN IrDA Parallel Port Class B Support CRC Configurable Logic Cell (CLC/CCL) Complementary Waveform Generator / Complementary Output Generator Numerically Controlled Oscillator Programmable Switched Mode Controller Hardware Touch Peripheral Hardware Direct Touch Channel Buttons Hardware Touch Matrix Nodes Touch Library Support Hardware Cap Voltage Divider Segmented LCD Keeloq Hardware Crypto Engine JTAG Temp Range Min Temp Range Max Operation Voltage Min (V) Operation Voltage Max (V) High Voltage Capable Packages
PIC16F18313 In Production $0.53 8-bit PIC MCU 8 8-bit MCU 3.5 2 Yes 256 256 0 6 8 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 1 0 1 5 10 100 No 1 1 5 Yes No 0 2 No 2 1 0 0 2 2 0 8 1 10 0 No No 1 1 1 0 None No 0 0 0 None No No No No No 2 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 8/PDIP, 8/SOIC, 8/UDFN
PIC16F18323 In Production $0.57 8-bit PIC MCU 8 8-bit MCU 3.5 2 Yes 256 256 0 12 14 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 2 0 1 11 10 100 No 1 1 5 Yes No 0 2 No 2 1 0 0 2 2 0 8 1 10 0 No No 1 1 1 0 None No 0 0 0 None No No No No No 2 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 14/PDIP, 14/SOIC, 14/TSSOP, 16/UQFN, 16/VQFN
PIC16F18324 In Production $0.64 8-bit PIC MCU 8 8-bit MCU 7 4 Yes 512 256 0 12 14 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 2 0 1 11 10 100 No 1 1 5 Yes No 0 4 No 4 3 0 0 2 4 0 14 3 10 0 No No 1 1 1 0 None No 0 0 0 None No No No No No 4 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 14/PDIP, 14/SOIC, 14/TSSOP, 16/UQFN
PIC16F18326 In Production $0.78 8-bit PIC MCU 8 8-bit MCU 28 16 Yes 2048 256 0 12 14 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 2 0 1 11 10 100 No 1 1 5 Yes No 0 4 No 4 3 0 0 2 4 0 14 3 10 0 No No 1 2 2 0 None No 0 0 0 None No No No No No 4 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 14/PDIP, 14/SOIC, 14/TSSOP, 16/UQFN, 16/VQFN
PIC16F18346 In Production $0.84 8-bit PIC MCU 8 8-bit MCU 28 16 Yes 2048 256 0 18 20 32 Yes Yes No BOR Programmable LVD Yes 32 MHz, 32 kHz No No Yes 2 0 1 17 10 100 Yes 1 0 5 Yes Yes 0 1 No 4 3 1 3 2 4 0 0 2 10 0 No No 1 2 2 0 None No 0 0 0 None Yes No No No No 4 2 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 20/PDIP, 20/QFN, 20/SOIC, 20/SSOP, 20/UQFN, 20/VQFN
PIC16F18325 In Production $0.71 8-bit PIC MCU 8 8-bit MCU 14 8 Yes 1024 256 0 12 14 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 2 0 1 11 10 100 No 1 1 5 Yes No 0 4 No 4 3 0 0 2 4 0 14 3 10 0 No No 1 2 2 0 None No 0 0 0 None No No No Yes No 4 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 14/PDIP, 14/SOIC, 14/TSSOP, 16/UQFN, 16/VQFN
PIC16F18344 In Production $0.70 8-bit PIC MCU 8 8-bit MCU 7 4 Yes 512 256 0 18 20 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 2 0 1 17 10 100 No 1 1 5 Yes No 0 4 No 4 3 0 0 2 4 0 14 3 10 0 No No 1 1 1 0 None No 0 0 0 None No No No Yes No 4 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 20/PDIP, 20/SOIC, 20/SSOP, 20/UQFN, 20/VQFN
PIC16F18345 In Production $0.77 8-bit PIC MCU 8 8-bit MCU 14 8 Yes 1024 256 0 18 20 32 Yes No BOR LVD Yes 32 MHz, 32 kHz No Yes 2 0 1 17 10 100 No 1 1 5 Yes No 0 4 No 4 3 0 0 2 4 0 14 3 10 0 No No 1 2 2 0 None No 0 0 0 None No No No Yes No 4 1 0 0 0 No 0 No No None -40 125 1.8 5.5 No 20/PDIP, 20/SOIC, 20/SSOP, 20/UQFN, 20/VQFN

PIC16F18346

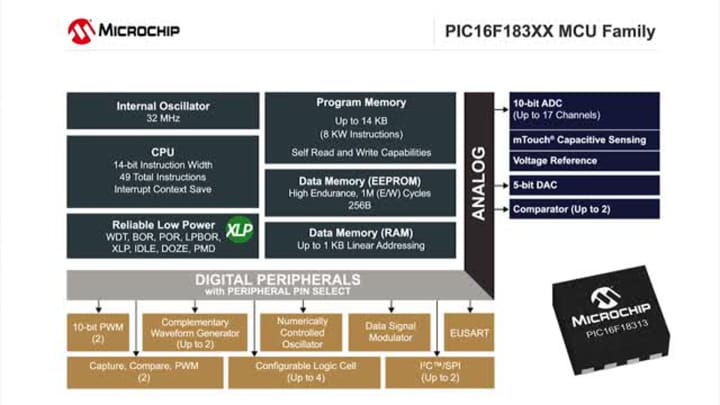

Product highlights of the PIC16F183XX product family, featuring integrated analog, digital and communication peripherals. microchip.com/pic16f183xx
