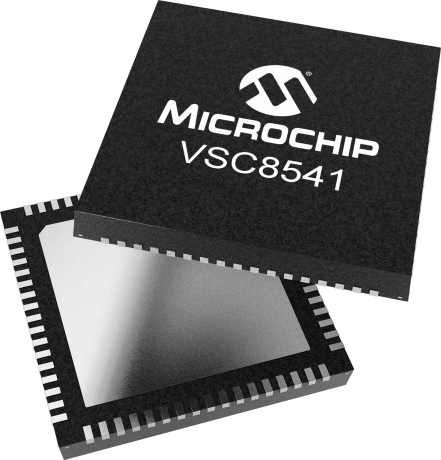

product primary image

VSC8541

1 Port GbE Cu PHY with SyncE, (R/G/RG)MII

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Low-power, small form-factor Cu PHY with IEEE 802.3az Energy Efficient Ethernet (EEE), Wake-on-LAN (WoL), Synchronous Ethernet (SyncE), Start of Frame (SOF), and Fast Link Failure 2.0 (FLF2) indication, with widest I/O LVCMOS support.  The VSC8541 device, offered in a small 8 mm x 8 mm single-row QFN package, is designed for space-constrained 10/100/1000BASE-T applications. It features integrated line-side termination to conserve board space, lower EMI, and improve system performance. Additionally, integrated RGMII version 2.0 standard timing compliant compensation eliminates the need for on-board delay lines.
The device supports the industry’s widest range of LVCMOS levels for a parallel MAC interface including: 1.5 V, 1.8 V, 2.5 V, and 3.3 V, as well as 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V support on the MDIO/MDC interface. It includes Microchip’s EcoEthernet™ 2.0 technology with Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. It optimizes power consumption at all link operating speeds, and features Wake-on-LAN power management using magic packets. The device has a recovered clock output for Synchronous Ethernet applications. Programmable clock squelch control is included to inhibit undesirable clocks from propagating and to help prevent timing loops. Microchip's patented Ring Resiliency™ allows a PHY port to switch between master and slave timing references with no link drop while in 1000BASE-T mode.  VSC8541 also includes Fast Link Failure (FLF) indication for high availability networks. FLF indication identifies the onset of a link failure in less than 1 ms typical, which goes beyond the IEEE 802.3 standard requirement of 750 ms ±10 ms (link master). In addition, the device adds a programmable threshold for applications where indication of even a potential link drop must be known at the microsecond level (<10 μs).

Additional Features
    • EcoEthernet™ 2.0, with Energy Efficient Ethernet (EEE)
    • Fast Link Failure™ 2.0 (FLF2) with failure indication for commutator ring applications
    • Widest voltage range, fully-compliant parallel MAC interface device
    • Start of Frame (SOF) sync for ingress and egress enables high accuracy calculation of latency (RGMII/RMII mode, VSC8541-04 only)
    • Configurable drive strength on MAC interface enables better control of system-level EMI/EMC
    • Synchronous Ethernet support and Ring Resiliency™
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000Mbps
LEDs
4
# of Ethernet Ports
1
Interface
RMII MII RGMII GMII
EEE
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
HP-Auto MDIX
Yes
Wake-on-LAN
No
Automotive
No
Interface1
RMII/RGMII/GMII
Ethercat
Yes
Copper Support
Yes
SyncE
Yes
MAC I/O Voltage
1.5/1.8/2.5/3.3V
Cable Diagnostics
Yes
802.3az
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8541XMV-02
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
VSC8541XMV-05
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
VSC8541XMV-01
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
VSC8541XMV-04
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
