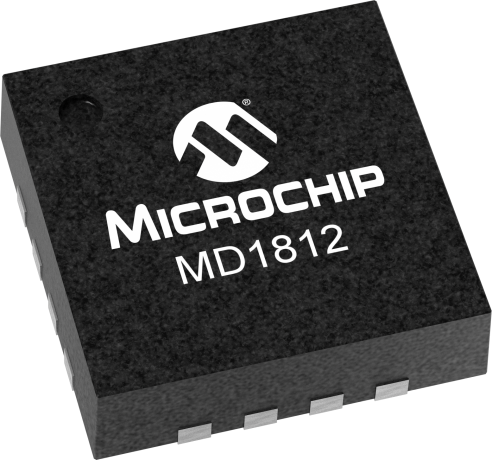

MD1812

High Speed QUAD MOSFET Driver

Status: In Production

Features:

  • 6.0ns rise and fall time
  • 2.0A peak output source/sink current
  • 1.8 to 5.0V input CMOS compatible
  • Smart logic threshold
  • Low jitter design
  • Quad matched channels
  • Drives two N and two P-channel MOSFETs
  • Outputs can swing below ground
  • Built-in level translator for negative gate bias
  • User-defined damping for return-to-zero application
  • Low inductance quad flat no-lead package
  • Thermally-enhanced package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

MD1812 is a high-speed quad MOSFET driver. It is designed to drive two N and two P-channel high voltage DMOS FETs for medical ultrasound applications, but may be used in any application that needs a high output current for a capacitive load. The input stage of the MD1812 is a high-speed level translator that is able to operate from logic input signals of 1.8 to 5.0V amplitude. An adaptive threshold circuit is used to set the level translator threshold to the average of the input logic 0 and logic 1 levels. The level translator uses a proprietary circuit which provides DC coupling together with high-speed operation. The output stage of the MD1812 has separate power connections enabling the output signal L and H levels to be chosen independently from the driver supply voltages. As an example, the input logic levels may be 0V and 1.8V, the control logic may be powered by +5V and –5V, and the output L and H levels may be varied anywhere over the range of -5.0 to +5.0V. The output stage is capable of peak currents of up to ±2.0 amps depending on the supply voltages used and load capacitance. The OE pin serves a dual purpose. First, its logic H level is used to compute the threshold voltage level for the channel input level translators. Secondly, when OE is low, the outputs are disabled, with the A and C outputs high and the B and D outputs low. This assists in properly pre-charging the coupling capacitors that may be used in series in the gate drive circuit of an external PMOS and NMOS. A built-in level shifter provides PMOS gate negative bias drive. This enables the user-defined damping control to generate return-to-zero bipolar output pulses.

Additional Features
  • 6.0ns rise and fall time
  • 2.0A peak output source/sink current
  • 1.8 to 5.0V input CMOS compatible
  • Smart logic threshold
  • Low jitter design
  • Quad matched channels
  • Drives two N and two P-channel MOSFETs
  • Outputs can swing below ground
  • Built-in level translator for negative gate bias
  • User-defined damping for return-to-zero application
  • Low inductance quad flat no-lead package
  • Thermally-enhanced package
Parametrics
Name
Value
# of Channels
4
Input Voltage min (V)
1.2
Input Voltage max (V)
5
Output Voltage Bipolar (V)
±5.0
Output Voltage Unipolar (V)
0 - 12
Package
QFN-16

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MD1812K6-G
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
