The healthcare industry is seeing a strong and a steady growth around the globe, resulting in an increased demand for non-invasive medical imaging modalities including ultrasound, Computerized Tomography (CT), Magnetic Resonance Imaging (MRI) and Positron Emission Tomography (PET). Among these options, medical ultrasound offers outstanding features such as low cost, portability and zero radiation.

Ultrasound instruments have evolved over the years from heavy, trolley-based systems to lightweight and portable devices that are often hand held and battery powered for use in Point-of-Care (POC) applications. If you are developing a medical ultrasound platform, our IC solutions offer exceptional performance, reliability and a long lifecycle to meet your design requirements.

Our portfolio of High-Voltage (HV) ultrasound products includes high-voltage analog switches, integrated high-voltage transmitters, high-voltage Field-Effect Transistors (FETs) and FET arrays, FET drivers, arbitrary waveform generators and Transmit/Receive (T/R) switches. By choosing our high-density, multi-channel analog switches and feature-rich ultrasound transmitters, you can significantly shrink the size of your ultrasound scanner can while still offering high image quality.

High-Voltage Analog Switches

  • Industry-leading portfolio of high channel-count (up to 32) HV analog switches
  • Superior performance in low charge injection, low harmonic distortion, low cross-talk and off-isolation, low parasitic capacitance, and low quiescent power dissipation
  • High-density bumped die package available in HV2701/HV2705 and HV2601/HV2605

Ultrasound Transmitters

  • Broad portfolio in high-voltage FETs, FET drivers and FET arrays
  • High-performance integrated ultrasound transmitter with output current up to 3A
  • Rich feature integration, such as transmit beamformer, return-to-zero circuit and more
  • Arbitrary waveform generator products for high-end systems
  • Ultra-low phase noise (<-160 dBc/Hz) Continuous Wave (CW) transmitters:  CW01, MD1730

T/R Switches

  • No bias voltage required
  • Single channel, dual channel, quad channel available
  • Integrated clamp diodes in MD0101 quad-channel device
  • Input voltage up to ±130V in MD0105 quad-channel device

How Does Ultrasound Imaging Work?

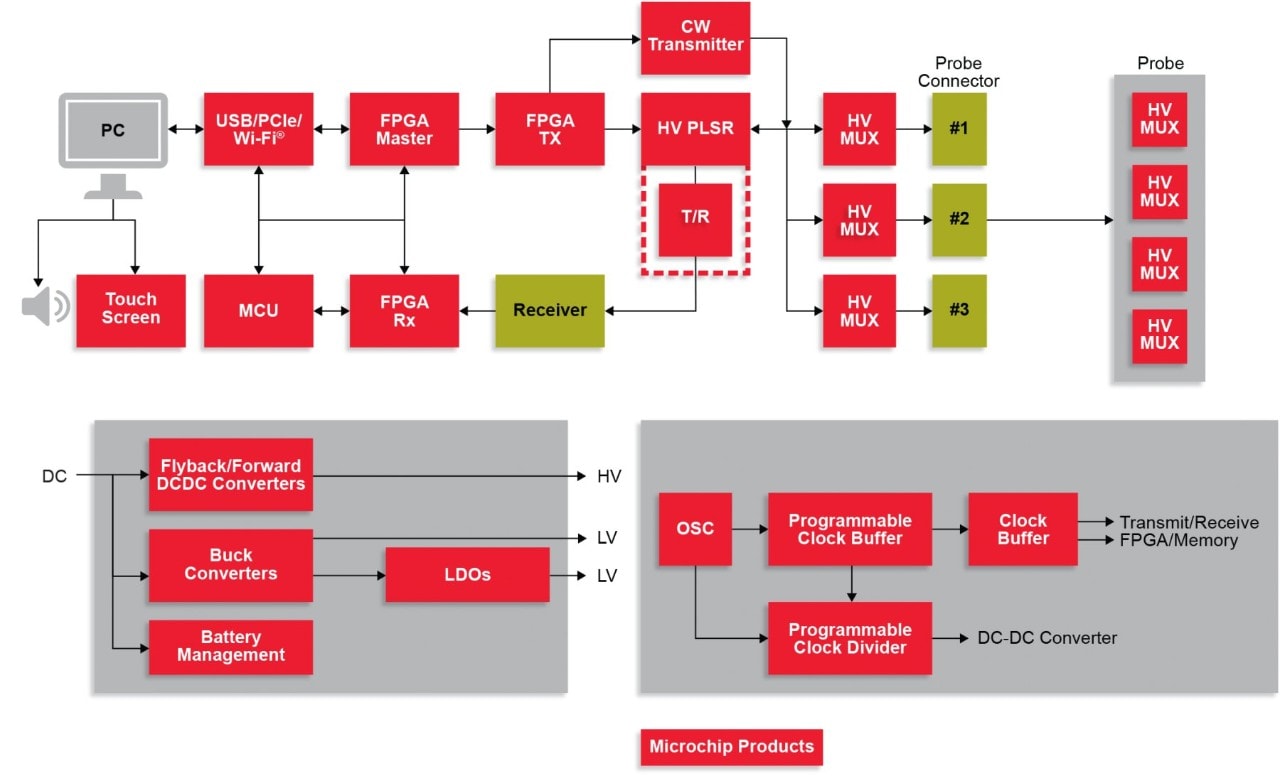

An ultrasound image is formed by applying high-voltage pulses to an ultrasound probe and processing the back-scattered echoes from the human body. An ultrasound probe is an array that consists of hundreds to thousands of elements to beamform a specific sound field. Although they don’t all fire at once, each of these elements needs to be controlled by one switch channel and be driven by one transmitter channel at a time. Therefore, high channel-count transmit/receive is a must to generate a decent image for diagnostic purposes. The trend in system miniaturization in ultrasound instrument designs is also driving the need for high-performance, low-power and highly integrated analog front-end ICs. Communicating with multiple component suppliers while trying to implement an extremely complex ultrasound system design just adds to your development challenges. We not only offer a one-stop shop to implement a full system solution, but our knowledgeable application and solution engineers are available to support you through your design cycle.




Products


View All Parametrics
Product Status 5K Pricing Interface Configuration Supply Voltage Vpp - Vnn (V) Analog Signal Voltage (V) Switch Current (A) Switch Resistance typ (Ω) Output Bleed Resistors Notes Packages
HV20220 In Production $10.74 Serial 8-SPST 200 180 ±2 16 No Use HV2201 for new designs 48/LQFP, 28/PLCC
HV2070 In Production Call for pricing Serial 32 SPST; 16PDT 12 200 3.7 4.5 NO Ultra-low Ron, no HV bias Please call for package information
HV20822 In Production $19.25 2 Banks of 8 16-SPST 220 200 ±2 18 No use HV2631 for new designs 48/LQFP
HV209 In Production $18.76 Serial 6-SPDT 200 180 ±2 16 Yes 48/LQFP
HV219 In Production $19.40 Serial 8-SPST 200 180 ±2 8 No 48/LQFP, 28/PLCC
HV2201 In Production $7.79 Serial 8-SPST 200 180 ±2 16 No 48/LQFP, 28/PLCC
HV2221 In Production $11.04 Serial 8-SPST 240 220 ±4 12 No 48/LQFP
HV230 In Production Call for pricing Serial 8-SPST 200 180 ±2 16 Yes Please call for package information
HV2301 In Production $7.43 Serial 8-SPST 200 180 ±2 16 Yes 48/LQFP, 28/PLCC
HV232 In Production $11.84 Serial 8-SPST 220 180 ±2 16 Yes use HV2301 for new designs 48/LQFP, 28/PLCC
HV2321 In Production $9.62 Serial 8-SPST 240 220 ±4 12 Yes 48/LQFP
HV238 In Production $19.61 2 Banks of 8 16-SPST 220 200 ±2 18 Yes use HV2731 for new designs 48/LQFP
HV2601 In Production $13.92 Serial 16-SPST 200 180 ±2 16 No 48/LQFP
HV2605 In Production $14.29 Serial 16-SPST 200 180 ±2 16 No low harmonic distortion 48/LQFP
HV2607 In Production $10.80 Serial 16 SPST 5 200 1.9 14 No No Bleed Resistors 48/LQFP
HV2621 Samples Available $14.25 Serial 16 SPST 300 270 ±3.0 18 NO Low charge injection 64/QFN
HV2631 In Production $13.99 2 Banks of 8 16-SPST 220 200 ±2 18 No 48/LQFP
HV2661 In Production $10.69 Serial 8x3:1 MUX w/8 states 200 180 ±1.3 18 No 48/LQFP
HV2662 In Production $12.29 Serial 24-SPST 200 180 ±1.3 18 No 64/VFBGA
HV2701 In Production $14.15 Serial 16-SPST 200 180 ±2 16 Yes 48/LQFP
HV2705 In Production $14.34 Serial 16-SPST 200 180 ±2 16 Yes low harmonic distortion 48/LQFP
HV2707 In Production $10.80 Serial 16 SPST 5 200 1.9 14 No Bleed resistors at both sides of the switches 48/LQFP
HV2708 In Production $10.80 Serial 16 SPST 5 200 1.9 14 No Bleed resistors at SWA side 48/LQFP
HV2721 Samples Available $14.50 Serial 16 SPST 300 270 ±3.0 18 Yes, two Low charge injection 64/QFN
HV2722 Samples Available $14.50 Serial 16 SPST 300 270 ±3.0 18 One Low charge injection 64/QFN
HV2731 In Production $14.22 2 Banks of 8 16-SPST 220 200 ±2 18 Yes 48/LQFP
HV2733 In Production $21.64 Serial 8-SPDT 200 180 ±2 16 Yes 48/LQFP
HV2761 In Production $10.69 Serial 8x3:1 MUX w/8 states 200 180 ±1.3 18 Yes 48/LQFP
HV2762 In Production $12.41 Serial 24-SPST 200 180 ±1.3 18 Yes 64/VFBGA
HV2801 In Production $18.34 Serial 16x2:1 MUX w/4 states 200 180 ±2 18 No low harmonic distortion 64/QFN
HV2802 In Production $15.70 Serial 32-SPST 200 180 ±3.0 18 No low harmonic distortion 78/VFBGA
HV2803 In Production $22.84 Serial 32 SPST; 16PDT 12 200 3 10 N/A No high voltage bias 132/TFBGA
HV2808 In Production $13.32 1-Pin 16-SPDT 200 180 ±2 18 No low harmonic distortion 56/VQFN
HV2809 In Production $13.32 1-Pin w/enable 32-Ch 2:1 & 4:1 MUX 200 180 ±2 18 No low harmonic distortion 56/VQFN
HV2818 In Production $17.57 Serial 16x2:1 MUX 5 200 2.7 6 No Low Harmonic Distortion, Low Charge Injection 64/QFN
HV2901 In Production $18.34 Serial 16x2:1 MUX w/4 states 200 180 ±2 18 Yes low harmonic distortion 64/QFN
HV2902 In Production $15.70 Serial 32-SPST 200 180 ±3.0 18 Yes low harmonic distortion 78/VFBGA
HV2903 In Production $22.84 Serial 32 SPST; 16PDT 12 200 3 10 YES-both sides No high voltage bias 132/TFBGA
HV2904 In Production $22.84 Serial 32 SPST; 16PDT 12 200 3 10 YES-One side No high voltage bias 132/TFBGA
HV2918 In Production $17.57 Serial 16x2:1 MUX 5 200 2.7 6 No Low Harmonic Distortion, Low Charge Injection 64/QFN
View All Parametrics
Product Status 5K Pricing BVdss/BVdss N-Channel (V) BVdss/BVdss P-Channel (V) Rds(on) N-Channel max (Ω) Rds(on) P-Channel max (Ω) Vgs(th) max (V) Note Packages
TC1550 In Production $4.31 500 -500 60 125 4.0 N & P-Channel pair 8/SOIC
TC2320 In Production $1.10 200 -200 7 12 2.0 N & P-Channel pair 8/SOIC
TC6215 In Production $1.04 150 -150 4 7.0 2.0 N & P-Channel pair 8/SOIC
TC6320 In Production $0.98 200 -200 7 8.0 2.0 N & P-Channel pair 8/SOIC, 8/VDFN
TC6321 In Production $1.00 200 -200 7 8.0 2.0 N & P-Channel pair 8/VDFN
TC7920 In Production $1.40 200 -200 7 8.0 2.0 Two N & P-Channel Pairs 12/VDFN
TC8020 In Production $6.20 200 -200 8 9.5 3.0 Six N & P-Channel pairs 56/VQFN
TC8220 In Production $1.45 200 -200 5.3 6.5 2.0 Two N & P-Channel Pairs 12/VDFN
View All Parametrics
Product Status 5K Pricing No of Channels Input Voltage min (V) Input Voltage max (V) Output Voltage Bipolar (V) Output Voltage Unipolar (V) Packages
MD1210 Mature Product Consider: MD1213 $1.13 2 1.2 5 -- 0 - 12 12/QFN
MD1211 Mature Product Consider: MD1213 $0.80 2 1.2 5 -- 0 - 12 8/SOIC
MD1213 In Production $1.23 2 1.2 5 ±5.0 0 - 12 12/QFN
MD1711 In Production $6.62 12 1.8 5.5 -- 0 - 12 48/LQFP, 48/VQFN
MD1712 In Production $2.89 12 1.8 5.5 -- 0 - 12 48/LQFP, 48/VQFN
MD1715 In Production $3.40 2 1.8 3.6 -- 0 - 12 40/VQFN
MD1716 In Production $3.40 3 1.8 3.6 -- 0 - 12 40/VQFN
MD1810 In Production $1.80 4 1.2 5 ±5.0 0 - 12 16/QFN
MD1811 In Production $1.80 4 1.2 5 ±5.0 0 - 12 16/QFN
MD1812 In Production $2.07 4 1.2 5 ±5.0 0 - 12 16/QFN
MD1813 In Production $2.07 4 1.2 5 ±5.0 0 - 12 16/QFN
MD1820 In Production $1.02 4 1.7 5.25 ±5.0 0 - 12 16/VQFN
MD1821 In Production $1.02 4 1.7 5.25 ±5.0 0 - 12 16/VQFN
MD1822 In Production $1.02 4 1.7 5.25 ±5.0 0 - 12 16/VQFN
View All Parametrics
Product Status 5K Pricing No of Channels Output Voltage (V) Output Current (A) Type Features Packages
HV7321 In Production $15.96 4 ±80 2.5 Monolithic B-Mode and CW-Mode Options, Built-In T/R Switch, Integrated Floating Drive Voltage Regulators 64/VQFN
HV7322 In Production $28.58 8 ±80 ±2 Monolithic 7 output levels, B-Mode and CW-Mode Options, Built-In dual T/R Switch 206/TFBGA
HV7331 Mature Product Consider: HV7321 Call for pricing 4 ±70 ±2.0 Monolithic Built-in floating power supplies, 2 current modes Please call for package information
HV7350 In Production $14.44 8 ±60 ±1.0 Monolithic Built-in floating power supplies 56/VQFN
HV7351 In Production $19.49 8 ±70 ±3.0 Monolithic Programmable launch delay, 4 transmit waveforms, clock up to 200MHz 80/VQFN
HV7355 In Production $9.19 8 +5 to +150 ±1.5 Monolithic Built-in floating power supplies, 2 current modes 56/VQFN
HV7358 In Production Call for pricing 16 ±80 ±1.6 Monolithic integrated transmit beamformer and T/R switch Please call for package information
HV7360 In Production $4.58 1 ±100 ±2.5 Hybrid Built-in coupling capacitors 22/CABGA
HV7361 In Production $5.29 1 ±100 ±2.5 Hybrid Built-in T/R switch, 8 capacitors 22/CABGA
HV748 Mature Product Consider: HV7321 Call for pricing 4 ±75 ±1.25 Monolithic Built-in coupling, 4 current modes Please call for package information
View All Parametrics
Product Status 5K Pricing No of Channels Voltage (V) RSW Diode Clamps VTRIP (V) BW (MHz) Packages
MD0100 In Production $0.88 1 or 2 ±100 15 No ±2.0 100 3/SOT-89, 8/VDFN
MD0101 In Production $3.71 4 ±100 15 Yes ±2.0 100 18/VDFN
MD0105 In Production $3.37 4 ±130 15 No ±2.0 100 18/VDFN
View All Parametrics
Product Status 5K Pricing Resolution Amplitude Control Apodization Input Voltage (V) Typical Delay Time (ns) Output Current (A) Packages
MD1730 In Production $3.43 255 - 13-Bit SPI 2.5 5 - 36/SQFN
MD2131 In Production $5.92 7.5° Phase PWM 8-Bit SPI 2.5 4 0 - 3.0 40/WQFN
MD2134 In Production $5.92 ±127 Steps PAM 8-Bit SPI 2.5 4 0 - 3.0 40/WQFN
View All Parametrics
Product Status 5K Pricing No of Channels Phase Noise (dBC) Rds (on) max (Ω) Output N-CH Breakdown Voltage (V) Output N-CH Capacitance (pF) Packages
CW01 Mature Product $3.70 4 -171 7 +100 4 24/QFN
MD1730 In Production $3.43 8 -160 7.5 0 36/SQFN

Documentation

Application Notes


Title Download
AN2303 - 4-Channel Integrated Ultrasound Pulser HV7321 Second Harmonic Distortion Measurement Download
AN2307 - Using the MD1730 Ultra-Low Phase Noise CW Transmit Beamformer for Medical Ultrasound Applications Download
