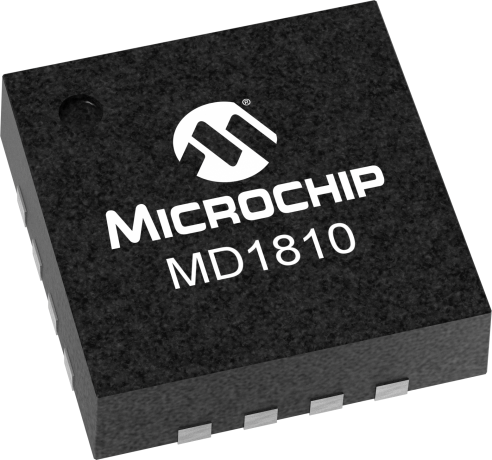

MD1810

High Speed QUAD MOSFET Driver

Status: In Production

Features:

  • 6.0ns rise and fall time with 1000pF load
  • 2.0A peak output source/sink current
  • 1.8 to 5.0V input CMOS compatible
  • 5.0 to 12V total supply voltage
  • Smart logic threshold
  • Low jitter design
  • Four matched channels
  • Outputs can swing below ground
  • Output is high impedence when disabled
  • Low inductance package
  • High-performance thermally-enhanced QFN
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

MD1810 is a high-speed quad MOSFET driver. It is designed to drive high voltage P- and N-channel MOSFETs for medical ultrasound imaging applications. The MD1810 can also be used for ultrasound metal flaw detection, Non-Destructive Testing (NDT), piezoelectric transducer drive, clock drive, and PIN diode drive. The MD1810 has four inputs which individually control four outputs. It also has an output enable (OE) pin. When OE is low, all of the outputs will be in a high impedence state regardless of their logic input control. When OE is high, the MD1810 sets the threshold logic transition to (VOE+VGND)/2. This ensures the transition to always be at half the amplitude of the logic input signal. This allows the device to have inherent propagation delay matching regardless of the logic input amplitude. The output stage of the MD1810 has separate power connections enabling the output signal L and H levels to be chosen independently from the VDD and VSS supply voltages. As an example, the input logic levels may be 0 and 1.8V, the control logic may be powered by +5.0 and -5.0V, and the output L and H levels may be varied anywhere over the range of -5.0 to +5.0V. The output stage is capable of peak currents of up to ±2.0A, depending on the supply voltages used and load capacitance present.

Additional Features
  • 6.0ns rise and fall time with 1000pF load
  • 2.0A peak output source/sink current
  • 1.8 to 5.0V input CMOS compatible
  • 5.0 to 12V total supply voltage
  • Smart logic threshold
  • Low jitter design
  • Four matched channels
  • Outputs can swing below ground
  • Output is high impedence when disabled
  • Low inductance package
  • High-performance thermally-enhanced QFN
Parametrics
Name
Value
# of Channels
4
Input Voltage min (V)
1.2
Input Voltage max (V)
5
Output Voltage Bipolar (V)
±5.0
Output Voltage Unipolar (V)
0 - 12
Package
QFN-16

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MD1810K6-G
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
