MD0100

High Voltage Protection T/R Switch

Status: In Production

Features:

  • Up to ±100V input voltage protection
  • Low on resistance - 15Ω typical
  • Fast switching speed
  • Effectively, a simple two terminal device
  • No external supplies needed
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

MD0100 is a high voltage, two terminal, bi-directional, current-limiting protection device. The two terminals are interchangeable. It is designed to protect a low noise receiver from the high voltage transmit pulses in ultrasound applications and is commonly referred to as a T/R (transmit and receive) switch. The MD0100 can be considered as a normally closed switch with a typical switching resistance of 15O that allows small signals to pass. Once the voltage drop across the two terminals exceeds a nominal value of ±2.0V, the device will start to turn off. In the off state, the MD0100 can withstand up to ±100V across its terminals. A small amount of current, typical of 200µA, is allowed to flow through. The applications for the MD0100 are not limited to just ultrasound. It can also be used for resettable fuses to protect power lines, output short circuit protection, and data acquisition. The MD0100 is available in the SOT-89 package as a single channel device for ease of assembly. It is also available in a 4.0x4.0mm 8-Lead DFN package as a two channel device for high density requirements.

Additional Features
    • Up to ±100V input voltage protection
    • Low on resistance - 15Ω typical
    • Fast switching speed
    • Effectively, a simple two terminal device
    • No external supplies needed
Parametrics
Name
Value
# of Channels
1 or 2
Voltage (V)
±100
RSW
15
VTRIP (V)
±2.0
BW (MHz)
100
Package

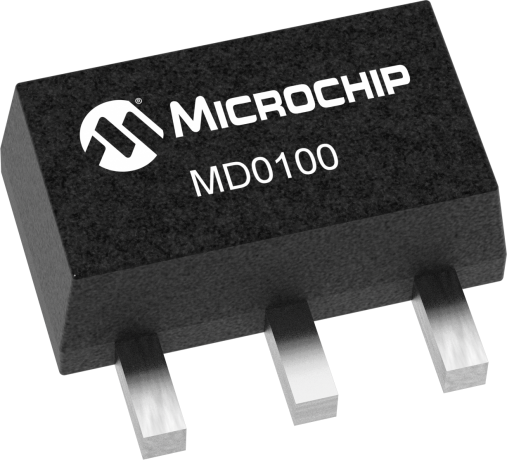

SOT-89

Documents

Jump to:

Software Library

User Guides

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
MD0100DB1 Demo Board
MD0100DB1 Demo Board ( MD0100DB1 )

The MD0100DB1 demo board contains four MD0100DK6-G dual packages providing 8 T/R switches in the system. There are no other external components on the board.
This demo board replaces 8 discrete diode bridge protection circuits. The input of the MD0100DB1 is called TX which is connected to the output of the transmitter, and the output is called RX which is connected to the input of the...

Learn More
Add To Cart
Software Libraries
Analog Simulation - MD0100

MD0100 is a high voltage, two terminal, bi-directional, current-limiting protection device. The two terminals are interchangeable. It is designed to protect a low noise receiver from the high voltage...

Learn More

Similar Devices

Product
# of Channels
Voltage (V)
Price 5K
1 or 2
±100
$0.84
4
±100
$3.53
4
±130
$3.21

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MD0100N8-G
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3

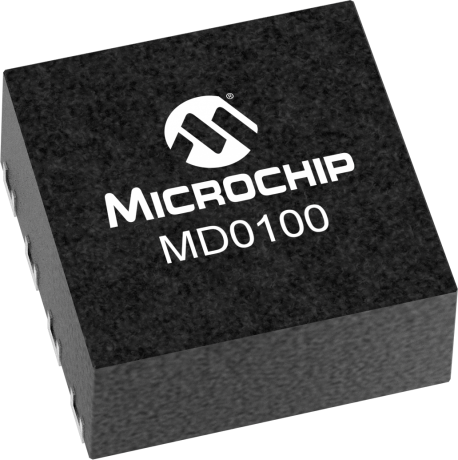

MD0100DK6-G
0.044900
0.184849
8
VDFN
4x4x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
