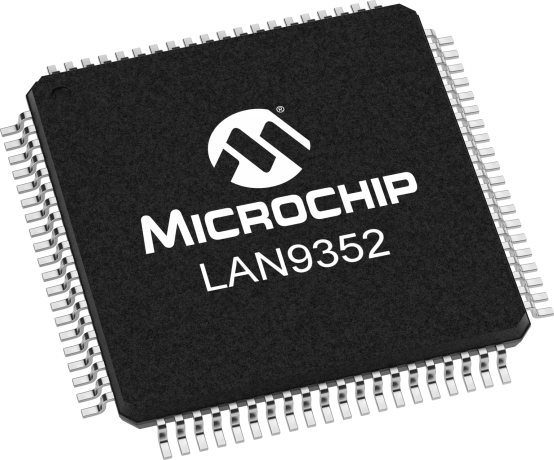

LAN9352

2-Port 10/100 Managed Ethernet Switch with 16-Bit Non-PCI & SPI/SQI Interface

Status: In Production

Features:

  • IEEE 1588-2008 Hardware Time Stamping Unit
  • IEEE 802.3az Energy Efficient Ethernet
  • Wake On LAN
  • Cable Diagnostics
  •  High-performance, full-featured 2-port switch with per-port IEEE 802.1Q VLAN support (up to 16 VLAN groups)
  •  IGMP v1/v2 monitoring for multicast packet filtering
  •  Optional EEPROM or external CPU serial management support via an I2C™ interface
  • Virtual PHY feature simplifies software development by mimicking multiple switch ports as a single-port PHY
  • Integrated 1.2V regulator for a single 3.3V supply
  • Supports Fiber Interface through SFP and SFF Physical medium
  • 42 per-port MIB counters for efficient network management
  • Industrial temperature (-40° to 85°C) options available (LAN9352i)
  • LAN9352: 10x10mm, 0.5mm pitch 72-pin SQFN package
  • LAN9352: 12x12mm, 0.5mm pitch 80-pin TQFP-EP package
  • Cable, Satellite, and IP Set-top Boxes (STBs)
  • Digital Televisions (DTVs)
  • Digital/Personal Video Recorders (DVRs/PVRs)
  • VoIP/Video Phone Systems
  • Building Automation
  • Security and Surveillance
  • Home Gateways/Consumer Audio/Video
  • Test/Measurement Equipment
  • Industrial Automation and Control
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

Microchip's LAN9352/LAN9352i is a high-performance, small-footprint, full-featured 2-port managed Ethernet switch. This device is application-optimized for consumer, embedded and Industrial designs which require a highly integrated, cost effective device with switching functionality, flexibility and ease of integration.
Featuring a small form factor 2-port switch, the LAN9352/9352i supports compact PCB design and with 2 Integrated PHY's .  LAN9352 extends the definition of the LAN9353 by replacing the Port 0 MII/RMII/Turbo MII interface with a full featured Ethernet MAC accessible through a high-performance host bus or SPI/
SQI Interface .The Host MAC incorporates the essential protocol requirements for operating an Ethernet/IEEE 802.3-compliant node and provides an interface between the Host Bus Interface (HBI) and the Ethernet PHYs and Switch Fabric. The device communicates with the microcontroller through an SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less connection to most common 8 or 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors with an 8 or 16-bit external bus. Alternatively, the device can be accessed via SPI/SQI . The Host MAC interfaces with the 10/100 Ethernet PHY’s (Virtual PHY, Port 1 PHY, Port 2 PHY) via an internal SMI (Serial Management Interface) bus .

IEEE 1588-2008 is supported via the integrated IEEE 1588-2008 hardware time stamp unit, which supports end-to-end and peer-to-peer transparent clocks. The LAN9352 complies with the IEEE 802.3 (full/half-duplex 10BASE-T and 100BASE-TX) Ethernet protocol, IEEE 802.3az Energy Efficient Ethernet (EEE) (100Mbps only), and 802.1D/802.1Q network management protocol specifications, enabling compatibility with industry standard Ethernet and Fast Ethernet applications. 100BASE-FX is supported via an external fiber transceiver.

The LAN9352/9352i switch combines all of the functions of a 10/100 system, including the switch fabric, packet buffers, buffer management, MACs, PHY transceivers and optional serial management functions. Both versions of the device comply with IEEE 802.3 10BASE-T and 100BASE-TX Ethernet protocol specifications, enabling compatibility with industry standard Ethernet and Fast Ethernet applications. Supports Fiber Interface through SFP and SFF Physical medium

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in*.

*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.


Additional Features

    Highlights

    • IEEE 1588-2008 Hardware Time Stamping Unit
    • IEEE 802.3az Energy Efficient Ethernet
    • Wake On LAN
    • Cable Diagnostics
    •  High-performance, full-featured 2-port switch with per-port IEEE 802.1Q VLAN support (up to 16 VLAN groups)
    •  IGMP v1/v2 monitoring for multicast packet filtering
    •  Optional EEPROM or external CPU serial management support via an I2C™ interface
    • Virtual PHY feature simplifies software development by mimicking multiple switch ports as a single-port PHY
    • Integrated 1.2V regulator for a single 3.3V supply
    • Supports Fiber Interface through SFP and SFF Physical medium
    • 42 per-port MIB counters for efficient network management
    • Industrial temperature (-40° to 85°C) options available (LAN9352i)

     Package options:

    • LAN9352: 10x10mm, 0.5mm pitch 72-pin SQFN package
    • LAN9352: 12x12mm, 0.5mm pitch 80-pin TQFP-EP package

    Target Applications

    • Cable, Satellite, and IP Set-top Boxes (STBs)
    • Digital Televisions (DTVs)
    • Digital/Personal Video Recorders (DVRs/PVRs)
    • VoIP/Video Phone Systems
    • Building Automation
    • Security and Surveillance
    • Home Gateways/Consumer Audio/Video
    • Test/Measurement Equipment
    • Industrial Automation and Control
Parametrics
Name
Value
Description
10/100 2-port Managed Ethernet Switches with Host Bus/SPI/SQI
Ethernet Bandwidth
10/100Mbps
MAC
3
PHY
2
TX/RX RAM Buffer(Bytes)
32K
Interrupt Pin
Yes
LEDs
6
Op. Voltage (V)
3.3
Interface
Host Bus/SPI/SQI
I/O Pins
8
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ports
2
Copper Support
10/100 (2)
Fiber Support
100FX (2)
Supply Voltage (V)
3.3
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.91
10/100Mbps
MII/RMII
$3.95
10/100Mbps
MII/RMII/RGMII
$5.52
10/100Mbps
MII/RMII/RGMII
$8.26
10/100Mbps
MII/RMII/RGMII/SGMII
$6.95
10/100Mbps
MII/RMII/RGMII/GMII
$6.76
10/100Mbps
MII/RMII/RGMII
$3.41
10/100Mbps
MII/RMII/RGMII
$3.24
10/100Mbps
MII/RMII/RGMII/GMII
$3.36
10/100Mbps
Host Bus/PCI
$8.50
10/100Mbps
Host Bus
$7.05
10/100Mbps
Host Bus
$11.90
10/100Mbps
MII/RMII
$2.78
10/100Mbps
MII(2)/RMII(2)
$3.79
10/100Mbps
MII/RMII/MII(2)
$3.13
10/100Mbps
MII/RMII
$5.30
10/100Mbps
MII/RMII
$3.41
10/100Mbps
MII/RMII
$4.31
10/100Mbps
MII/RMII
$4.71
10/100Mbps
MII
$18.88
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$10.89
10/100/1000Mbps
MII/RMII/RGMII
$5.92
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$9.10
10/100/1000Mbps
MII/RMII/RGMII
$5.21
10/100/1000Mbps
MII/RMII/RGMII/GMII
$6.64
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$6.71
10/100Mbps
MII/RMII/Turbo MII
$4.17
10/100Mbps
MII(2)/RMII(2)/Turbo MII(2)
$5.06
10/100Mbps
Host Bus
$7.73
10/100Mbps
Host Bus
$8.82
10/100Mbps
MII
$6.83
10/100Mbps
Host Bus/SPI/SQI
$7.09
10/100Mbps
MII/RMII/Turbo MII
$3.82
10/100Mbps
RMII
$3.58
10/100Mbps
MII/RMII/Turbo MII
$4.41
10/100Mbps
MII/RMII/RGMII

10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$23.04
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$33.35
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$23.28
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$28.15
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$35.20
10/100/1000/2500Mbps
SGMII 1000Base-T (5)
$27.84
10/100/1000Mbps
SGMII 1000Base-T (8)
$28.90
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$33.23
10/100/1000Mbps
QSGMII 1000Base-T (12)
$38.22
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$41.54
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$28.35
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$68.56
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$36.08
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$46.39
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$59.28
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$69.07
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$84.54
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$31.44
10/100/1000/2500Mbps
SGMII, QSGMII
$66.40
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$71.56
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$81.87
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$87.02
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$115.98
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$154.64
10/100/1000/2500Mbps
SGMII 1000Base-T (4)
$9.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$12.37
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$15.46
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$18.56
10/100/1000/2500Mbps 5/10Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10/25Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5G/10G/25Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10/25Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10/25Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10/25Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI

10/100/1000/2500Mbps 5/10/25Gbps
SGMII, QSGMII, USGMII, USXGMII, XFI


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LAN9352I/PT
0.000000
1.747899
80
TQFP
12x12x1mm
Matte Tin
e3
LAN9352T/PT
0.000000
0.969167
80
TQFP
12x12x1mm
Matte Tin
e3
LAN9352TI/PT
0.000000
0.969167
80
TQFP
12x12x1mm
Matte Tin
e3
LAN9352/PT
0.000000
1.747899
80
TQFP
12x12x1mm
Matte Tin
e3
LAN9352/ML
0.341000
1.190476
72
VQFN
10x10x0.9mm
Matte Tin
e3
LAN9352I/ML
0.341000
1.190476
72
VQFN
10x10x0.9mm
Matte Tin
e3
LAN9352T/ML
0.341000
0.504667
72
VQFN
10x10x0.9mm
Matte Tin
e3
LAN9352TI/ML
0.341000
0.504667
72
VQFN
10x10x0.9mm
Matte Tin
e3
