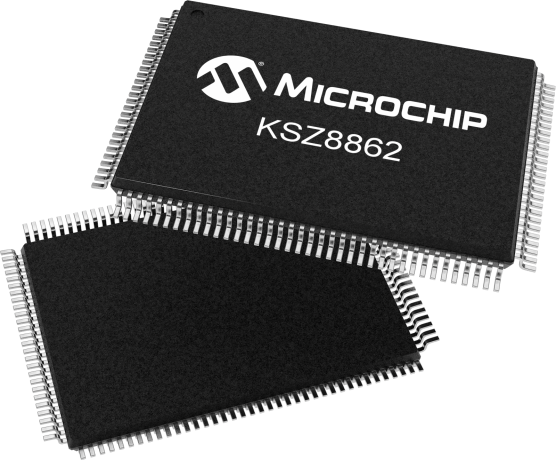

product primary image

KSZ8862

2-Port 10/100 Managed Ethernet Switch

Status: In Production

Features:

  • Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry forwarding table and a store-and-forward architecture
  • Fully compliant with IEEE 802.3u standards
  • Full-duplex IEEE 802.3x flow control (Pause) with force mode option
  • Half-duplex back pressure flow control
  • IEEE 802.1Q VLAN support for up to 16 groups (full range of VLAN IDs)
  • VLAN ID tag/untag options, on a per port basis
  • IEEE 802.1p/Q tag insertion or removal on a per port basis (egress)
  • Programmable rate limiting at the ingress and egress ports
  • Broadcast storm protection
  • IEEE 802.1d spanning tree protocol support
  • MAC filtering function to filter or forward unknown unicast packets
  • Direct forwarding mode enabling the processor to identify the ingress port and to specify the egress port
  • Internet Group Management Protocol (IGMP) v1/v2 snooping support for multicast packet filtering
  • IPV6 Multicast Listener Discovery (MLD) snooping support
  • Integrated LED driver and post amplifier for 10BASE-FL and 100BASE-SX optical modules
  • 100BASE-FX/SX and 10BASE-FL fiber support on port 1
  • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port
  • MIB counters for fully compliant statistics gathering - 34 MIB counters per port
  • Loopback modes for remote failure diagnostics
  • Control registers configurable on-the-fly (port-priority, 802.1p/d/Q)
  • Per port, 802.1p and DiffServ-based
  • Remapping of 802.1p priority field on a per port basis
  • Full-chip hardware power-down (register configuration not saved) allows low power dissipation
  • Per port-based, software power-save on PHY (idle link detection, register configuration preserved)
  • Single power supply: 3.3V
  • Commercial Temperature Range: 0°C to +70°C
  • Industrial Temperature Range: –40°C to +85°C
  • (see Ordering Information).
  • Available in 128-pin PQFP
  • Available in -16 version for 8/16-bit bus support and -32 version for 32-bit bus support (see Ordering Information).
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The KSZ8862M is 2-port switch with fiber support, available in 8-/16-bit and 32-bit bus designs.

The KSZ8862M is an industry first, fully managed, 2-port switch. It is based on a proven, 4th generation, integrated Layer-2 switch, compliant with IEEE 802.3u standards. For industrial applications, the KSZ8862M can run in half-duplex mode regardless of the application. In fiber mode, port 1 can be configurable to either 100BASE-FX or 100BASE-SX/10BASE-FL. The LED driver and post amplifier are also included for 10Base-FL and 100Base-SX applications. In copper mode, port 2 supports 10/100BASE-T/TX with HP Auto MDI/MDI-X for reliable detection of and correction for straight-through and crossover cables.

Microchip's proprietary LinkMD® Time Domain Reflectometry (TDR) based function is also available for determining the cable length, as well as cable diagnostics for identifying faulty cabling. The KSZ8862M offers an extensive feature set that includes tag/port-based VLAN, quality of service (QoS) priority management, management information base (MIB) counters, and CPU control/data interfaces to effectively address Fast Ethernet applications.

The KSZ8862M contains:
- Two 10/100 transceivers with patented, mixed-signal, low-power technology
- Two media access control (MAC) units
- Direct memory access (DMA) channel
- High-speed, non-blocking, switch fabric
- Dedicated 1K entry forwarding table
- On-chip frame buffer memory

When using the provided KSZ8462 software driver, please exclude the 1588 PTP code at compile time.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
      Switch Management
      • Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry forwarding table and a store-and-forward architecture
      • Fully compliant with IEEE 802.3u standards
      • Full-duplex IEEE 802.3x flow control (Pause) with force mode option
      • Half-duplex back pressure flow control
      Advanced Switch Management
      • IEEE 802.1Q VLAN support for up to 16 groups (full range of VLAN IDs)
      • VLAN ID tag/untag options, on a per port basis
      • IEEE 802.1p/Q tag insertion or removal on a per port basis (egress)
      • Programmable rate limiting at the ingress and egress ports
      • Broadcast storm protection
      • IEEE 802.1d spanning tree protocol support
      • MAC filtering function to filter or forward unknown unicast packets
      • Direct forwarding mode enabling the processor to identify the ingress port and to specify the egress port
      • Internet Group Management Protocol (IGMP) v1/v2 snooping support for multicast packet filtering
      • IPV6 Multicast Listener Discovery (MLD) snooping support
      Fiber Support
      • Integrated LED driver and post amplifier for 10BASE-FL and 100BASE-SX optical modules
      • 100BASE-FX/SX and 10BASE-FL fiber support on port 1
      Monitoring
      • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port
      • MIB counters for fully compliant statistics gathering - 34 MIB counters per port
      • Loopback modes for remote failure diagnostics
      Comprehensive Register Access
      • Control registers configurable on-the-fly (port-priority, 802.1p/d/Q)
      QoS/CoS Packets Prioritization Support
      • Per port, 802.1p and DiffServ-based
      • Remapping of 802.1p priority field on a per port basis
      Power Modes, Packaging, and Power Supplies
      • Full-chip hardware power-down (register configuration not saved) allows low power dissipation
      • Per port-based, software power-save on PHY (idle link detection, register configuration preserved)
      • Single power supply: 3.3V
      • Commercial Temperature Range: 0°C to +70°C
      • Industrial Temperature Range: –40°C to +85°C
      • (see Ordering Information).
      • Available in 128-pin PQFP
      • Available in -16 version for 8/16-bit bus support and -32 version for 32-bit bus support (see Ordering Information).
Parametrics
Name
Value
Description
2-Port 10/100 Ethernet Switch with 8-/16-bit Host Bus Interface
Ethernet Bandwidth
10/100Mbps
MAC
3
PHY
2
TX/RX RAM Buffer(Bytes)
4KB
Interrupt Pin
Yes
LEDs
8
Op. Voltage (V)
3.3
Interface
Host Bus
Temp. Range Max. (°C)
70
# of Ports
2
Automotive
Yes
Managed
Yes
Copper Support
10/100 (2)
Fiber Support
100FX,FL,SX
8/16-bit
Yes
Supply Voltage (V)
3.3
Internal LDO
Yes
Vdd I/O (V)
3.3
LinkMD Cable Diag
Yes
ESD Rating (KV)
n/a
Smart Power Adjust
n/a
Largest Pkt-Size Bytes
1916
IPV6
Yes
# of VLAN
16
Flow Ctrl
Yes
Rate Limiting
Yes
Static MAC Addr
Yes

Documents

Jump to:

Supporting Collateral

02/19/2016
27372KB
02/19/2016
26890KB

Board Design Files

05/10/2017
257KB
05/10/2017
257KB

Software Library

Development Environment

  • Software Libraries
Software Libraries
Driver is located in Linux Kernel

The driver for this device resides in the Linux Kernel found here https://www.kernel.org/

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.53
10/100Mbps
MII/RMII
$3.76
10/100Mbps
MII/RMII/RGMII
$5.26
10/100Mbps
MII/RMII/RGMII
$8.26
10/100Mbps
MII/RMII/RGMII/SGMII
$6.62
10/100Mbps
MII/RMII/RGMII/GMII
$6.44
10/100Mbps
MII/RMII/RGMII
$3.25
10/100Mbps
MII/RMII/RGMII
$3.09
10/100Mbps
MII/RMII/RGMII/GMII
$3.20
10/100Mbps
Host Bus/PCI
$7.73
10/100Mbps
Host Bus
$6.71
10/100Mbps
Host Bus
$10.82
10/100Mbps
MII/RMII
$2.65
10/100Mbps
MII(2)/RMII(2)
$3.61
10/100Mbps
MII/RMII/MII(2)
$2.98
10/100Mbps
MII/RMII
$5.05
10/100Mbps
MII/RMII
$3.09
10/100Mbps
MII/RMII
$3.92
10/100Mbps
MII/RMII
$4.28
10/100Mbps
MII
$17.16
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$10.37
10/100/1000Mbps
MII/RMII/RGMII
$5.64
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$8.67
10/100/1000Mbps
MII/RMII/RGMII
$4.96
10/100/1000Mbps
MII/RMII/RGMII/GMII
$6.32
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$6.39
10/100Mbps
MII/RMII/Turbo MII
$3.97
10/100Mbps
MII(2)/RMII(2)/Turbo MII(2)
$4.82
10/100Mbps
Host Bus
$7.36
10/100Mbps
Host Bus
$8.40
10/100Mbps
MII
$6.50
10/100Mbps
Host Bus/SPI/SQI
$6.75
10/100Mbps
MII/RMII/Turbo MII
$3.64
10/100Mbps
RMII
$3.41
10/100Mbps
MII/RMII/Turbo MII
$4.20
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$23.04
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$33.35
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$24.48
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$28.15
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$35.20
10/100/1000/2500Mbps
SGMII 1000Base-T (5)
$27.84
10/100/1000Mbps
SGMII 1000Base-T (8)
$28.90
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$33.23
10/100/1000Mbps
QSGMII 1000Base-T (12)
$38.22
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$41.54
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$28.35
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$68.56
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$36.08
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$46.39
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$59.28
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$69.07
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$84.54
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$31.44
10/100/1000/2500Mbps
SGMII, QSGMII
$66.40
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$71.56
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$81.87
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$87.02
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$115.98
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$154.64
10/100/1000/2500Mbps
SGMII 1000Base-T (4)
$9.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$12.37
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$15.46
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$18.56

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
KSZ8862-16MQL-FX
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
KSZ8862-32MQL
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
KSZ8862-32MQL-FX
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
KSZ8862-16MQL
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
