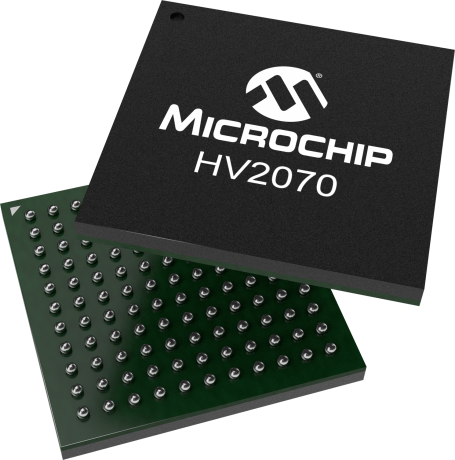

HV2070

No High-Voltage Bias, 32-Channel, High-Voltage Analog Switch, relay replacement

Status: In Production

Features:

  • No High-Voltage Bias , 32-Channel High-Voltage Analog Switch
  • ±100V Analog Signal Voltage Range
  • Ultra Low Switch on-Resistance: 4.5Ω, typ.
  • Low Parasitic Capacitance
  • 32-Channel Single-Pole-Single-Throw (SPST) Individual Switching or Bank Switching
  • Standby Mode for Low Power Dissipation
  • 3.3V CMOS Input Logic Level
  • 66 MHz Data Shift Clock Frequency
  • Silicon-on-Insulator (SOI) HVCMOS Technology for High Performance
  • DC to 100 MHz Analog Small Signal Frequency
  • 100 kHz to 50 MHz Large Signal Frequency
  • Cascadable Serial Data Register with Latches
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

HV2070 is a low harmonic distortion, low charge injection, 32-channel, high-voltage analog switch, which doesn’t require high-voltage supply. It is intended for use in applications requiring high-voltage switching controlled by low-voltage signals, such as medical ultrasound imaging and printers.
The typical on-resistance is 4.5Ω,  and switch to ground on/off capacitances are 20 pF and 11 pF, respectively. The low parasitic capacitance and low on-resistance make HV2070 suitable for applications such as ARFI and shear-wave elastography and High Intensity Focused Ultrasound (HIFU) which require higher current levels.
The device requires only ±6V or ±5V low-voltage supplies, however the analog switches still can pass ±100V high voltage pulses.
The HV2070 has two modes of operation: individual switching mode with 32-channel SPST switches, bank switching mode with 16-pole double throw (16PDT) logic. Bank switching mode is intended for probe selection.

For further information, please contact Microchip sales office.

Additional Features
    • No High-Voltage Bias , 32-Channel High-Voltage Analog Switch
    • ±100V Analog Signal Voltage Range
    • Ultra Low Switch on-Resistance: 4.5Ω, typ.
    • Low Parasitic Capacitance
    • 32-Channel Single-Pole-Single-Throw (SPST) Individual Switching or Bank Switching
    • Standby Mode for Low Power Dissipation
    • 3.3V CMOS Input Logic Level
    • 66 MHz Data Shift Clock Frequency
    • Silicon-on-Insulator (SOI) HVCMOS Technology for High Performance
    • DC to 100 MHz Analog Small Signal Frequency
    • 100 kHz to 50 MHz Large Signal Frequency
    • Cascadable Serial Data Register with Latches
Parametrics
Name
Value
Interface
Serial
Configuration
32 SPST; 16PDT
Supply Voltage Vpp - Vnn (V)
12
Analog Signal Voltage (V)
200
Switch Current (A)
3.7
Switch Resistance typ (Ω)
4.5
Package
10mmX10mm TFBGA
Notes
Ultra-low Ron, no HV bias

Documentation data is currently unavailable.
